Installing Front Air-Conditioning System Regulator

  1. Insert electrical plugs in the air-conditioning control until they are felt to engage.
    Fig 1: Inserting Electrical Plugs In Air-Conditioning Control
    G09414468Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Carefully slide the control into the installation slot, paying attention to the electrical leads. The left and right latches must engage.

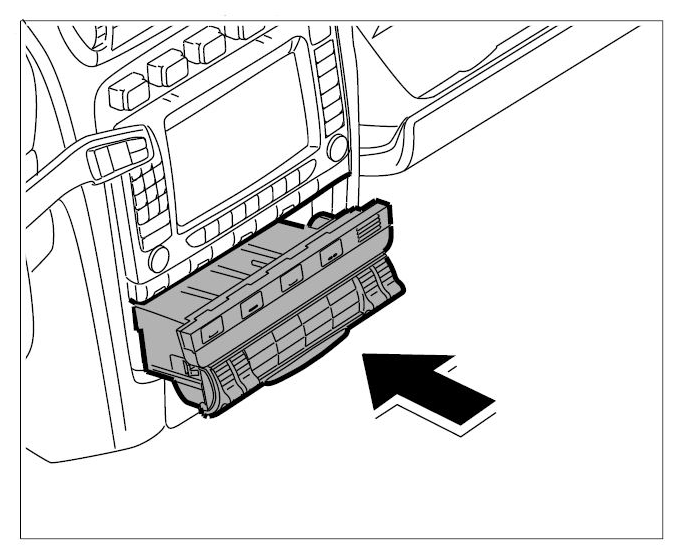

    Fig 2: Engaging Air-Conditioning Control
    G09414469Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Fit the covering frame and press into place until it is felt to engage.

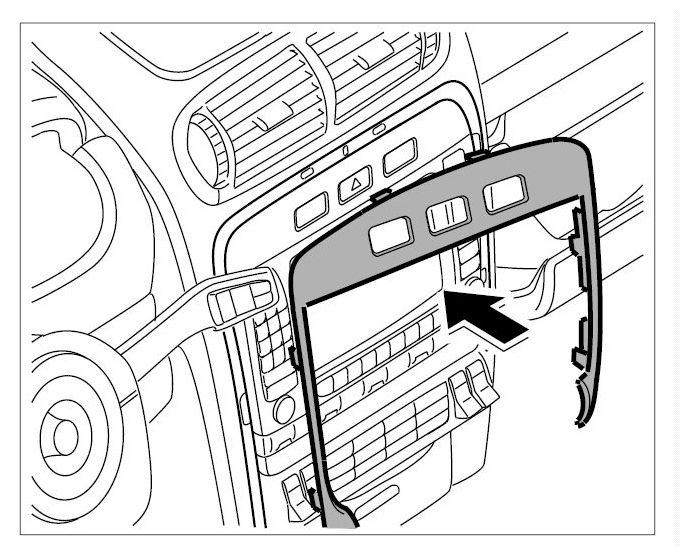

    Fig 3: Fitting Covering Frame
    G09414470Courtesy of PORSCHE CARS NORTH AMERICA, INC.
