Installing Support For DME Control Module

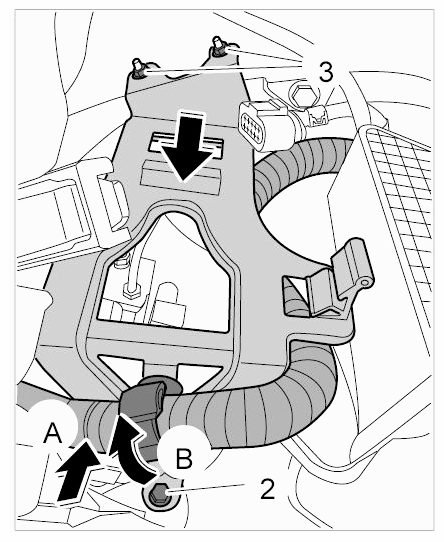

- Position support for DME control module and screw down both fastening nuts -3-
and the fastening screw -2-. → Tightening torque: 6 ft lbs. → Tightening torque: 6 ft lbs.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Insert DME control module in the retaining clips -arrow A-
and close the retaining clips -arrow B-
.

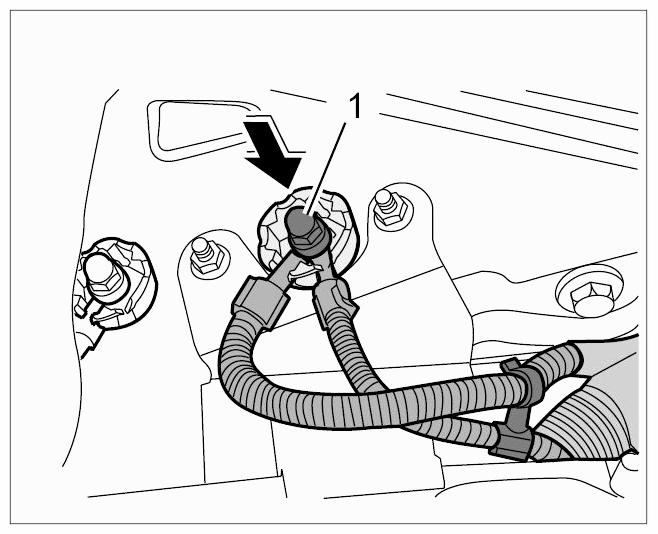

- Mount ground straps together with the twist lock on the stud and screw down with the fastening nut -1-. → Tightening torque: 6.5 ft lbs.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
