Installing Control Unit For Roof Assembly (Panoramic Roof)

Information

• After installation of the control unit, the limit stops for the motors must be re-initialised.

1. Position control unit in installation position -Arrows A-  and secure with the fastening screws -1-  . Tightening torque: 3 ftlb.

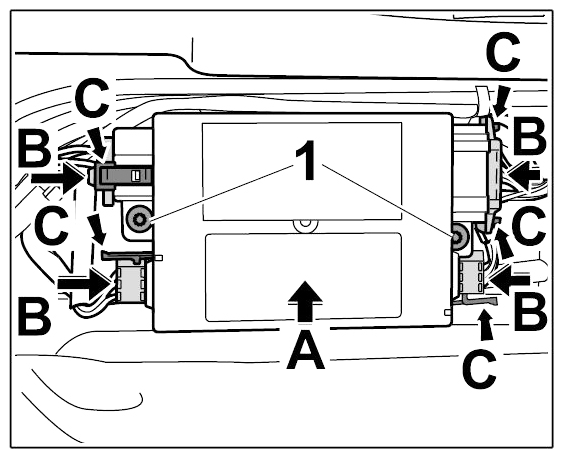

   Fig 1: Installing And Securing Control Unit And Inserting Connector

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Push in the connectors -arrows B-  until the locking tabs -C-  are felt to engage.
   Fig 2: Installing And Securing Control Unit And Inserting Connector

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Initialise limit stop of both motors.
