Removing Control Unit For Memory Seat Adjustment

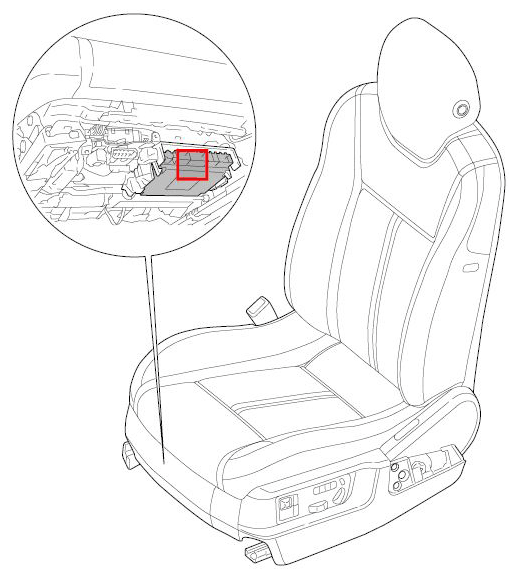

Fig 1: Overview Of Control Unit For Memory Seat Adjustment

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

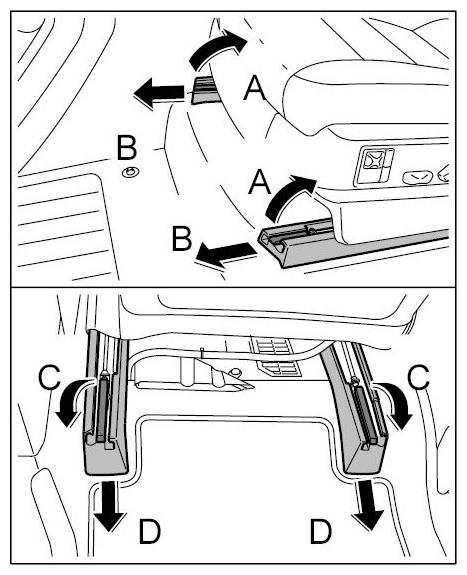

1. Release covers -Arrows A-  and remove front seat rail cover caps -Arrows B-  .
   Fig 2: Removing Seat Rail Covers

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Release covers -Arrows C-  and remove rear seat rail cover caps -Arrows D-  .
   Fig 3: Removing Seat Rail Covers

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Move front left seat back and up as far as possible. Move backrest fully forward.

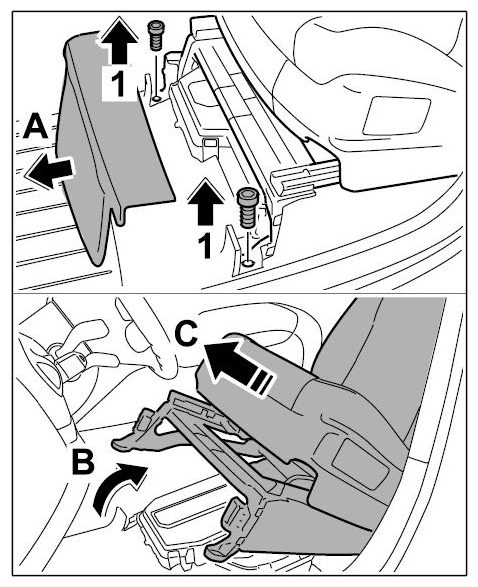

4. Detach the front seat trim forwards -Arrow A-  .
   Fig 4: Removing Front Seat Trim And Folding Seat Back

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Fold the carpet sections forward and remove the two fastening screws -Arrows 1-  .
   Fig 5: Removing Front Seat Trim And Folding Seat Back

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Fold the seat back as far as possible. With the seat in its folded position, move the seat forward again using the fore-and-aft adjustment.

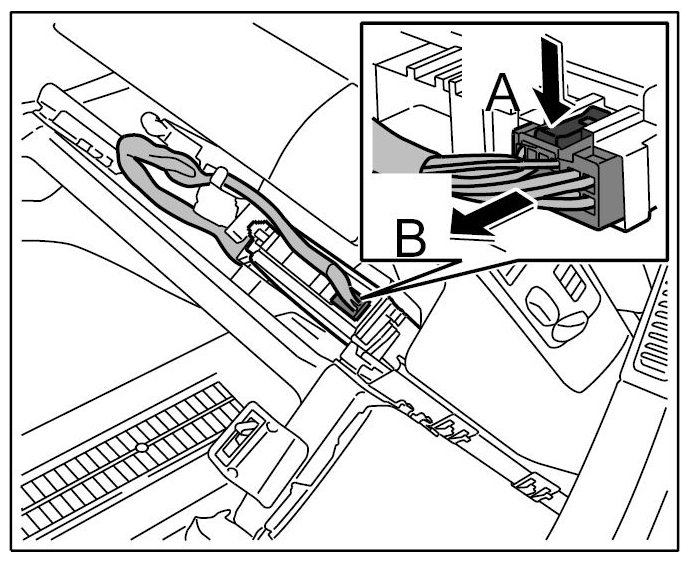

7. Release the connector -Arrow A-  and pull it off -Arrow B-  .
   Fig 6: Pulling Off Memory Seat Adjustment Control Unit Connector

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

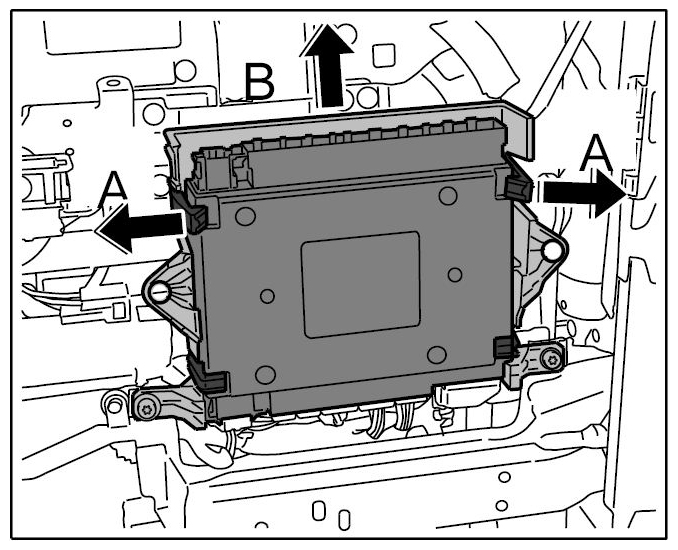

8. Release the holder -Arrows A-  and remove the control unit -Arrow B-  .
   Fig 7: Removing Control Unit

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

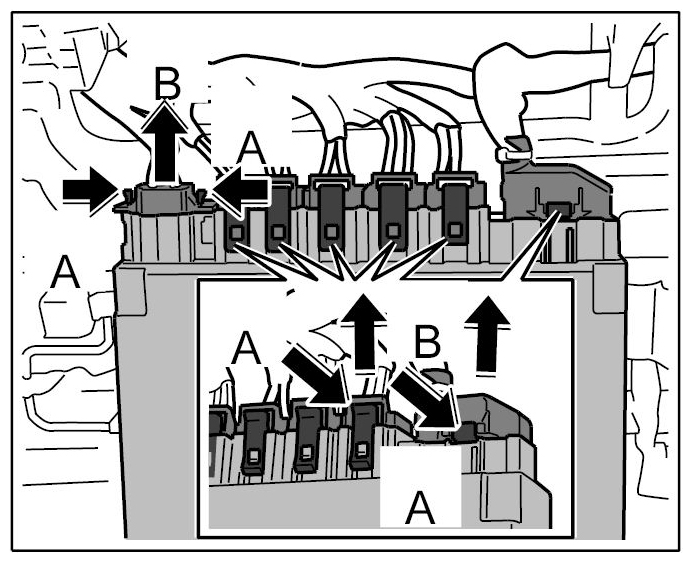

9. Release the connectors -Arrows A-  and pull them off -Arrows B-  .
   Fig 8: Pulling Control Unit Connector

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
