Installing Vehicle Electrical System Control Unit

  1. Push on top row of plugs until they are felt to engage.
    Fig 1: Connecting Top Plugs
    G09416169Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Push on bottom row of plugs until they are felt to engage.

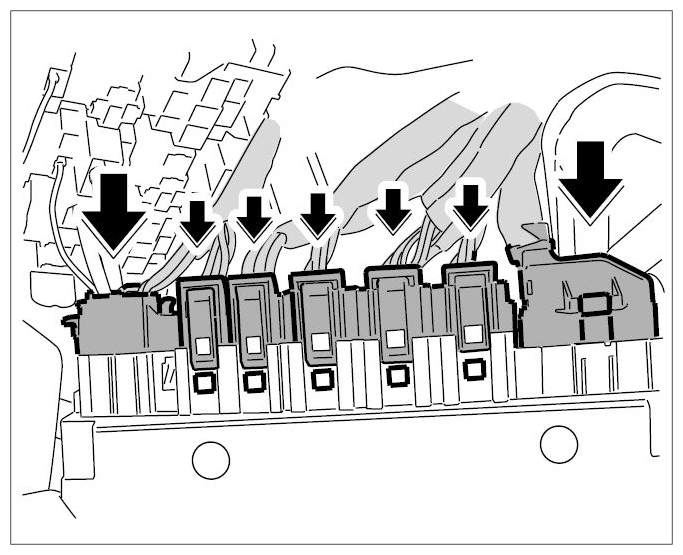

    Fig 2: Connecting Bottom Plugs
    G09416170Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Push control unit upwards into the holder, making sure it engages. Make sure the electrical leads are not pinched.
