Installing Pump For Headlight Washer System

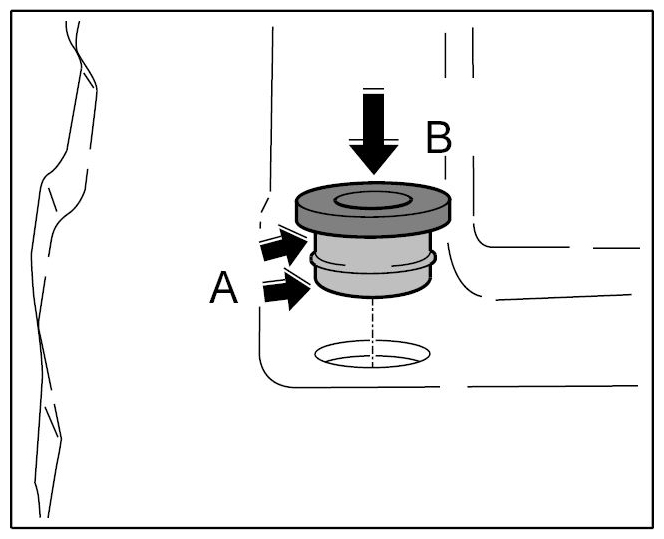

- Apply a suitable rubber lubricant (tyre mounting paste) to sealing surface -Arrows A-
and press rubber seal into tank -Arrow B-
until it is felt to engage.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

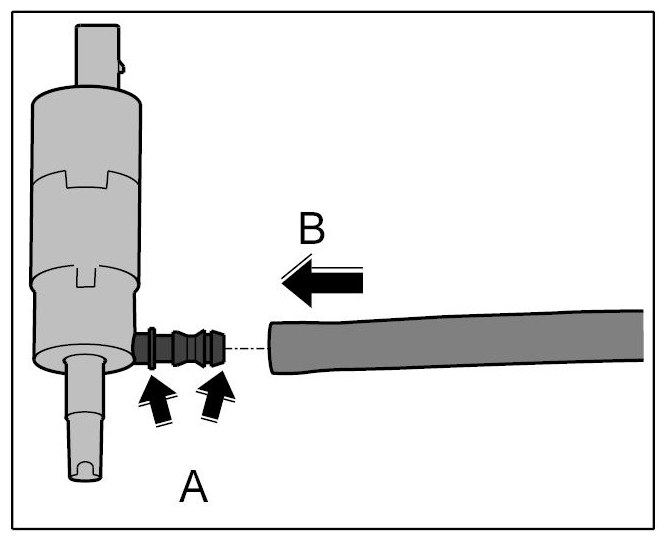

- Apply a suitable rubber lubricant (tyre mounting paste) to the sealing surface -Arrows A-
and attach the high-pressure hose to the pump -Arrow B-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

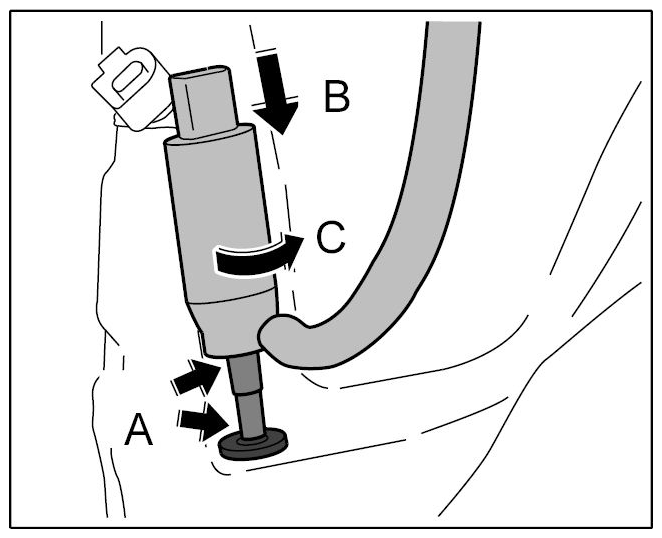

- Apply a suitable rubber lubricant (tyre mounting paste) to the sealing surface -Arrows A-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Press high-pressure pump completely into rubber gasket -Arrow B-
and rotate to the limit position -Arrow C-
.

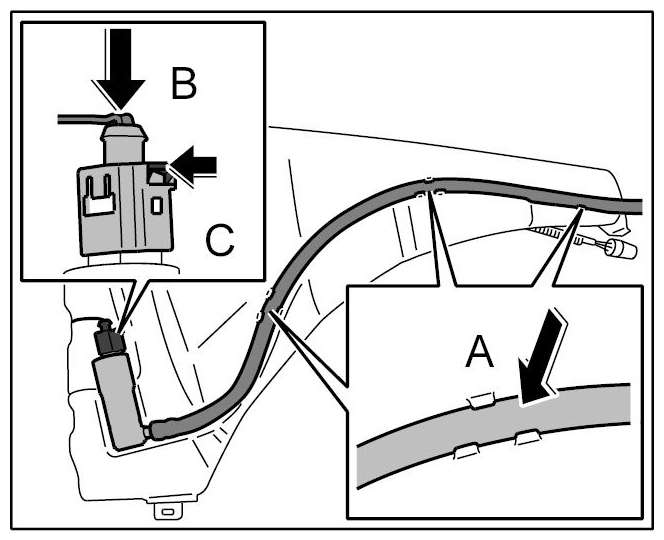

- Press high-pressure hose into retaining tabs -Arrow A-
until it is felt to engage in the tank.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Plug in the high-pressure pump connector -Arrow B-
until the locking tab -C-
is felt to engage.
