Removing Voice Module For PCM

  1. Unclip cover on the rear of the PCM  at the top, pivot cover down and disengage it.

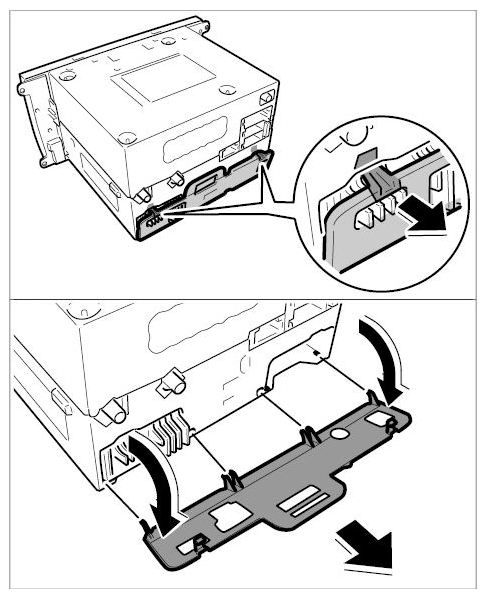

    Fig 1: Removing Cover
    G09415131Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove voice module from the PCM.

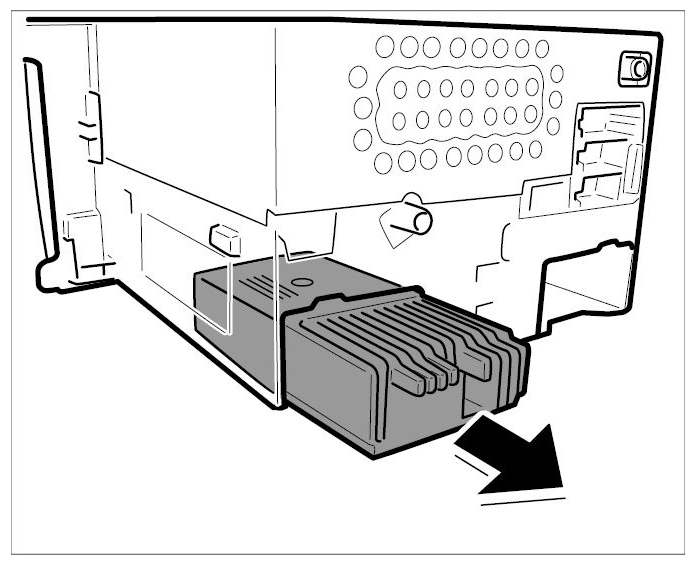

    Fig 2: Removing Voice Module
    G09415132Courtesy of PORSCHE CARS NORTH AMERICA, INC.
