Installing Central Locking Switch

Information

• Only the central locking switches on the rear switch panels can be removed and installed.

1. Insert the switch in the switch panel until it clicks into place.

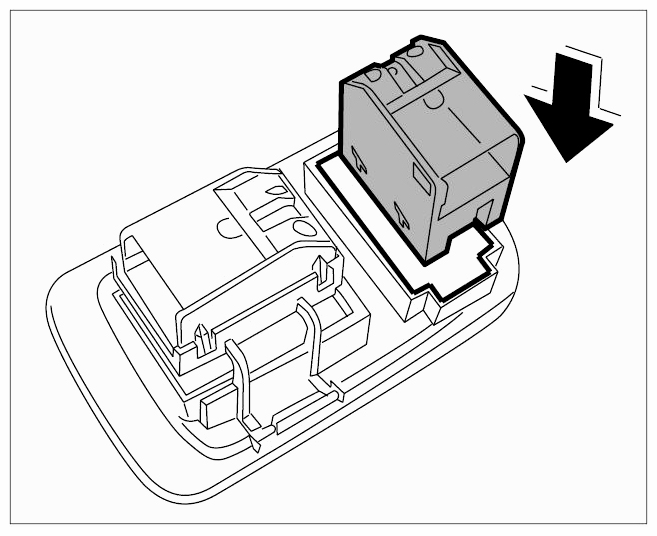

   Fig 1: Installing Central Locking Switch

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Insert the electrical plug connection in the power window switch until it clicks into place.

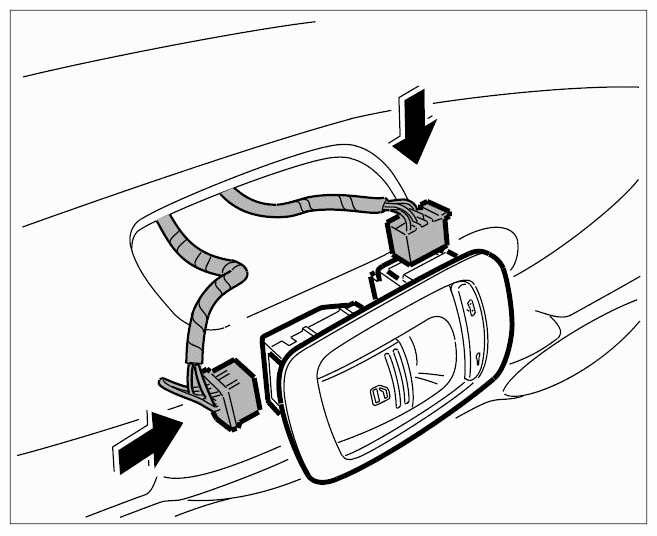

   Fig 2: Inserting Power Window Switch Connectors

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Position the power window switch in the door trim panel and press it in.

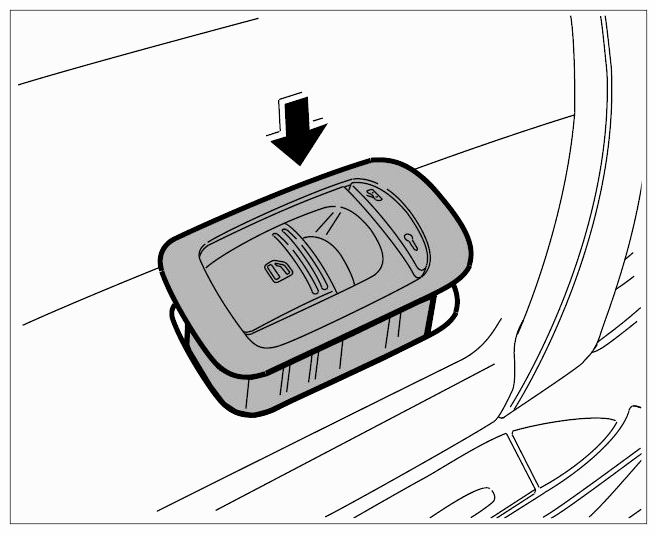

   Fig 3: Installing Power Window Switch

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Make sure that the power window switch is positioned evenly on the gap.
