Removing Driver's Airbag Unit

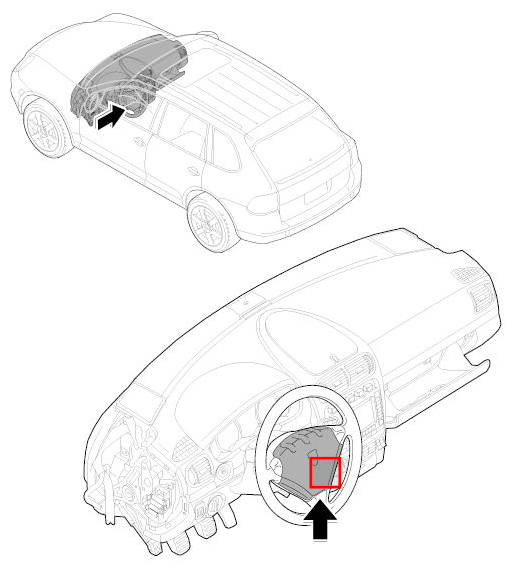

Fig 1: Overview Of Driver's Airbag Unit

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Switch on the ignition and move the steering wheel back and down as far as possible.
Disconnect battery → WM 9000IN WORK INSTRUCTIONS AFTER DISCONNECTING THE BATTERY (ALL MODELS)
Turn steering wheel 90° to the right -arrow A- .

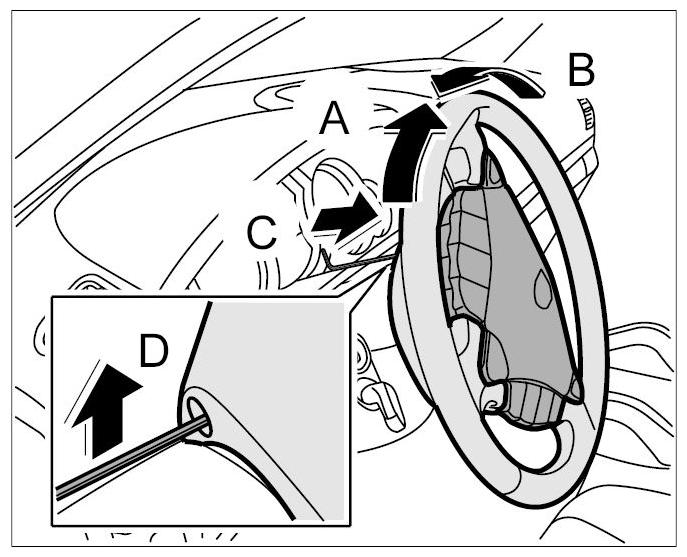

Fig 2: Undoing Airbag Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert a long hexagon-socket wrench (size 3 with ball joint) fully into the opening on the back of the steering wheel -arrow C- , press the clip outwards -arrow D- and pull the airbag unit.

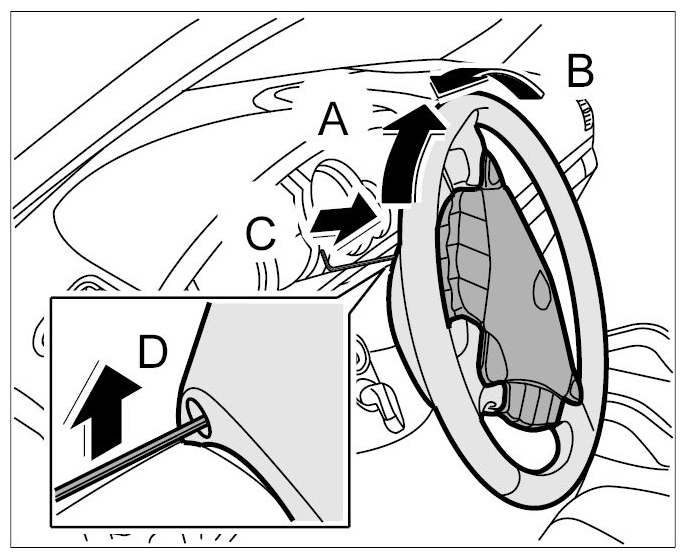

Fig 3: Undoing Airbag Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Turn the steering wheel 180° -arrow B- , position the long hexagon-socket wrench through the opening in the steering wheel and press the strap out -arrow D- .

Fig 4: Undoing Airbag Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull airbag unit down from the steering wheel, turn steering wheel back 180° if necessary -arrow A- and repeat process.

Fig 5: Undoing Airbag Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disconnect electrical plug connection on the steering column switch and remove airbag unit.
Information
- The airbag unit is fastened with a strap to the steering wheel. The strap can be pressed apart at the two openings using a screwdriver.

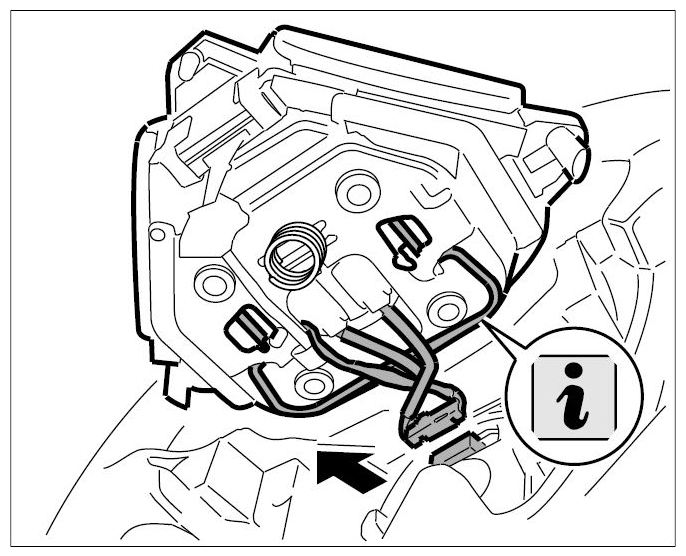

  Fig 6: Removing Airbag Unit
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
