Installing Support Plate For Rear Adjustment Fitting

Information

• For safety reasons, the fastening screw -1- for the adjustment fitting support plate must be replaced after removal.

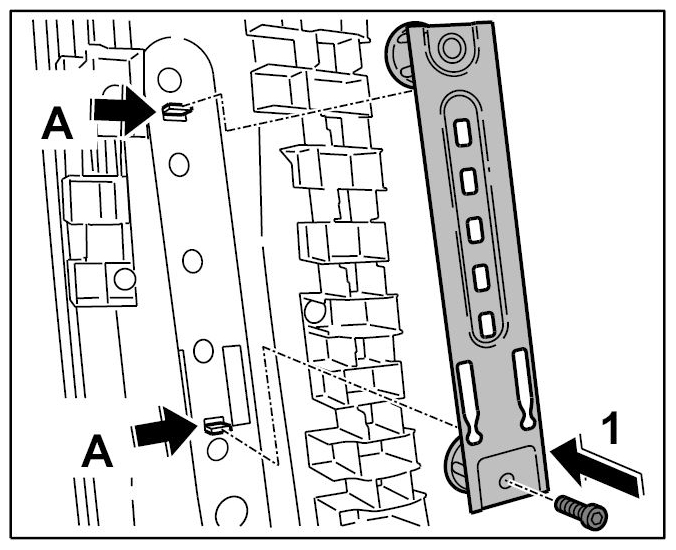

  Fig 1: Installing Support Plate For Rear Adjustment Fitting

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Insert rear support plate. Ensure that the tabs -A-  lie inside the spacer sleeves.

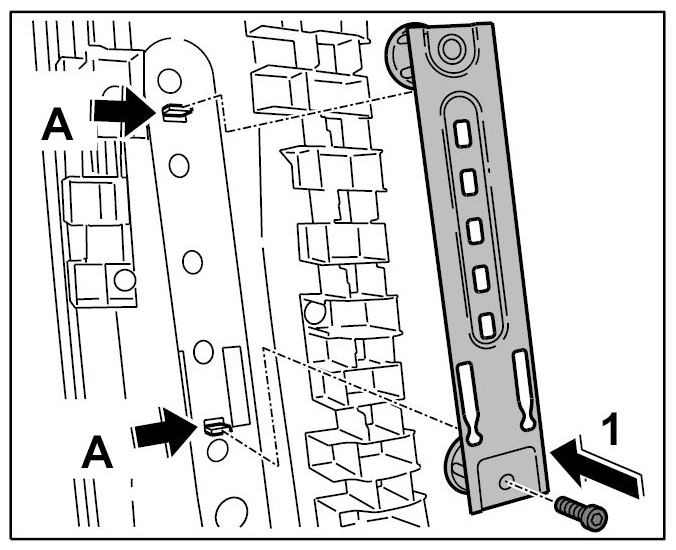

   Fig 2: Inserting Rear Support Plate

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Screw in the fastening screw -1-  so that the top of the support plate can still just be moved.
   Fig 3: Inserting Rear Support Plate Mounting Screw

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
