Component Locations

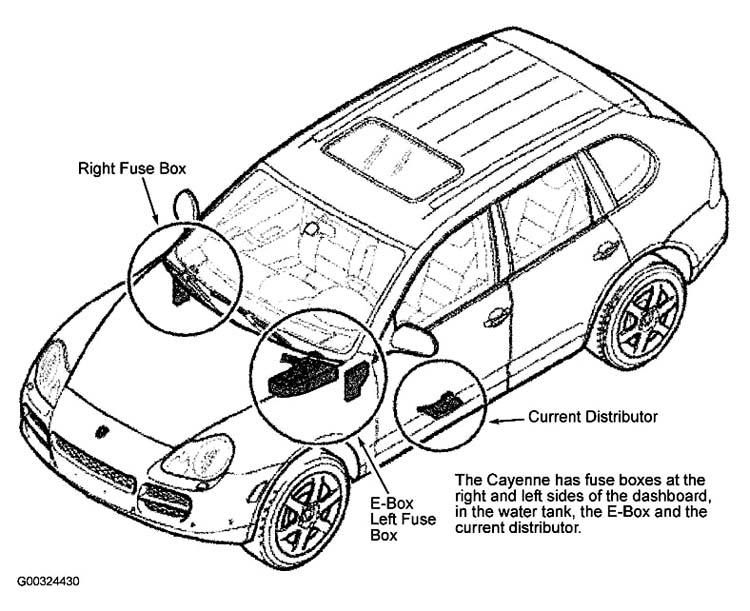

Fig 1: Locating Fuse Boxes, E Box & Current Distributor
G00324430Courtesy of PORSCHE OF NORTH AMERICA, INC.

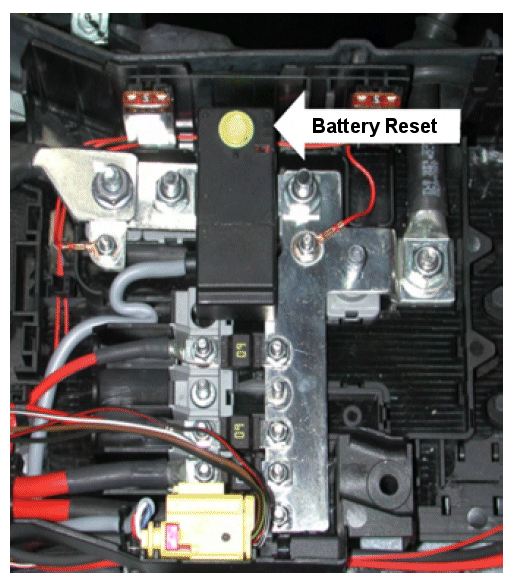

Fig 2: Identifying Battery Reset Button In Current Distributor
G00491282Courtesy of PORSCHE OF NORTH AMERICA, INC.

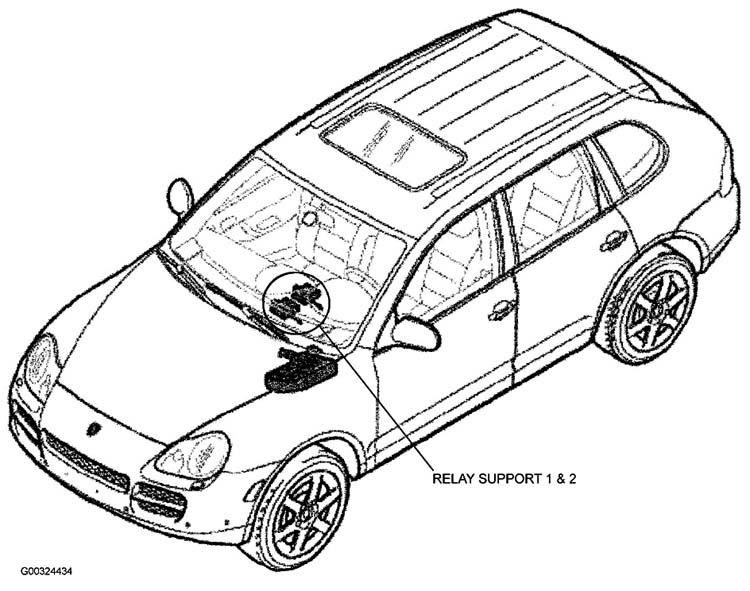

Fig 3: Locating Relay Support 1 & 2
G00324434Courtesy of PORSCHE OF NORTH AMERICA, INC.
FUSES & RELAY BLOCK LOCATIONS

Component Location
E Box Left Rear Of Engine Compartment
Fuse Block Below Dashboard, Right Of Steering Column
Power Distributor Over Vehicle Electrical System Battery
Main Fuse Box (Rear) Near Preparation Starter Battery
Relay Support 1 In E Box
Relay Support 2 In E Box
Preparation Starter Battery In Spare Wheel Recess
Vehicle Electrical System Battery Below Driver's Front Seat
