Installing Control Unit For Rear Lid

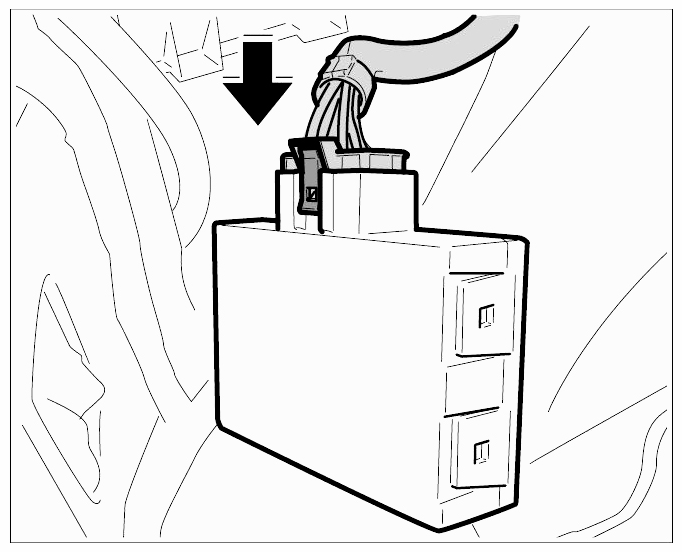

Plug in connector on control unit for rear lid -arrow- until the connector engages securely.

Fig 1: Plugging Connector On Control Unit For Rear Lid
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

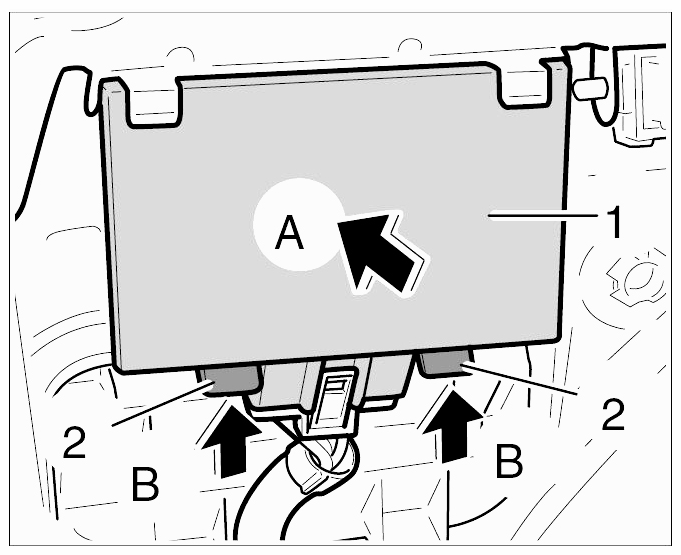

Fit control unit for rear lid -1- into the holder from below and press it in -arrow A- until the two clips -2- engage securely -arrows B- .

Fig 2: Installing Control Unit For Rear Lid
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- Only for vehicles without auxiliary air conditioner.

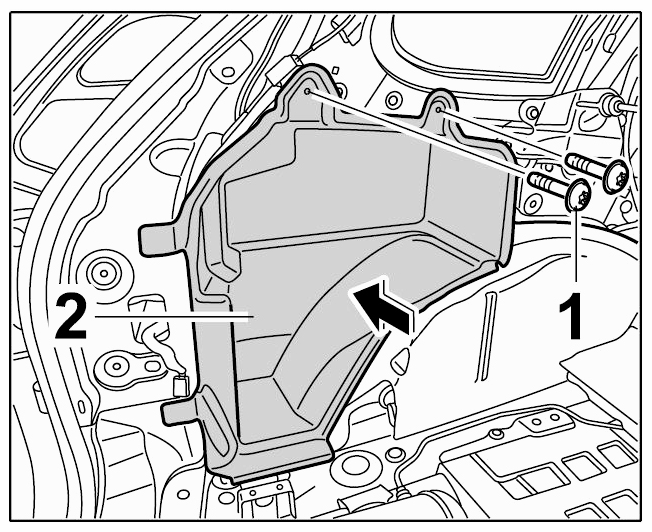

Position package box -2- on the body -arrow- and secure with the fastening screws -1- .

Fig 3: Installing Package Box
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
