Component arrangement

WARNING: This page is about a different car, the 2006 Porsche Cayenne, 2005 Porsche Cayenne, 2004 Porsche Cayenne, and 2003 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

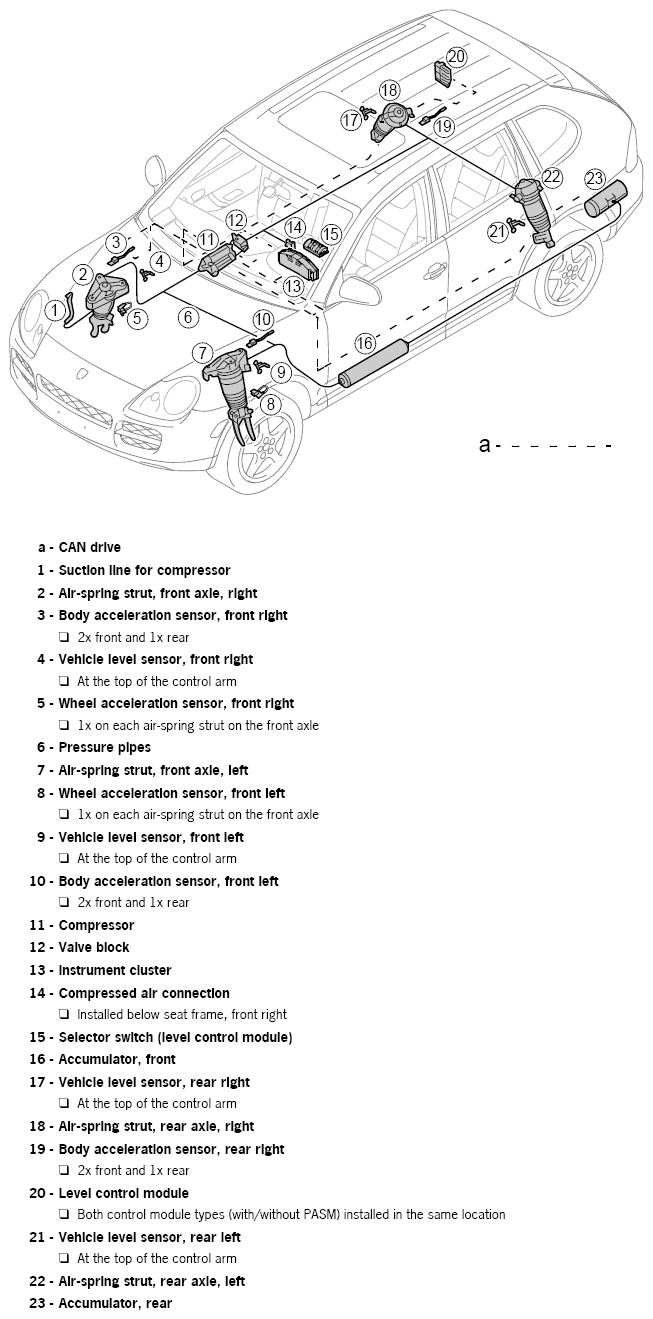

Fig 1: Identifying Component Arrangement Of Level Control
G05373557Courtesy of PORSCHE OF NORTH AMERICA, INC.
  1. CAN drive
  1. Suction line for compressor
  2. Air-spring strut, front axle, right
  3. Body acceleration sensor, front right
    • 2x front and 1x rear
  4. Vehicle level sensor, front right
    • At the top of the control arm
  5. Wheel acceleration sensor, front right
    • 1x on each air-spring strut on the front axle
  6. Pressure pipes
  7. Air-spring strut, front axle, left
  8. Wheel acceleration sensor, front left
    • 1x on each air-spring strut on the front axle
  9. Vehicle level sensor, front left
    • At the top of the control arm
  10. Body acceleration sensor, front left
    • 2x front and 1x rear
  11. Compressor
  12. Valve block
  13. Instrument cluster
  14. Compressed air connection
    • Installed below seat frame, front right
  15. Selector switch (level control module)
  16. Accumulator, front
  17. Vehicle level sensor, rear right
    • At the top of the control arm
  18. Air-spring strut, rear axle, right
  19. Body acceleration sensor, rear right
    • 2x front and 1x rear
  20. Level control module
    • Both control module types (with/without PASM) installed in the same location
  21. Vehicle level sensor, rear left
    • At the top of the control arm
  22. Air-spring strut, rear axle, left
  23. Accumulator, rear
