Installing PASM control unit

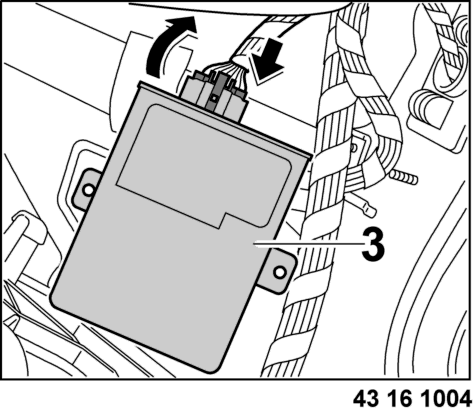

Fig 1: Connecting the plug connection

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Connect the electric plug connection until the plug clicks into place.

2. Push in control unit into the support and clip it in.

Fig 2: Screwing on cover for passenger's footwell

Courtesy of PORSCHE OF NORTH AMERICA, INC.

3. Fit cover -2-  and secure with the two fastening nuts -1-  . See Fig 2.

4. Stick on carpet at side again onto cover.
