Mode 6 - PORSCHE
>>
Mode 6 Data 2017 CARRERA Turbo
Mode 6 Data 2017 CARRERA Turbo

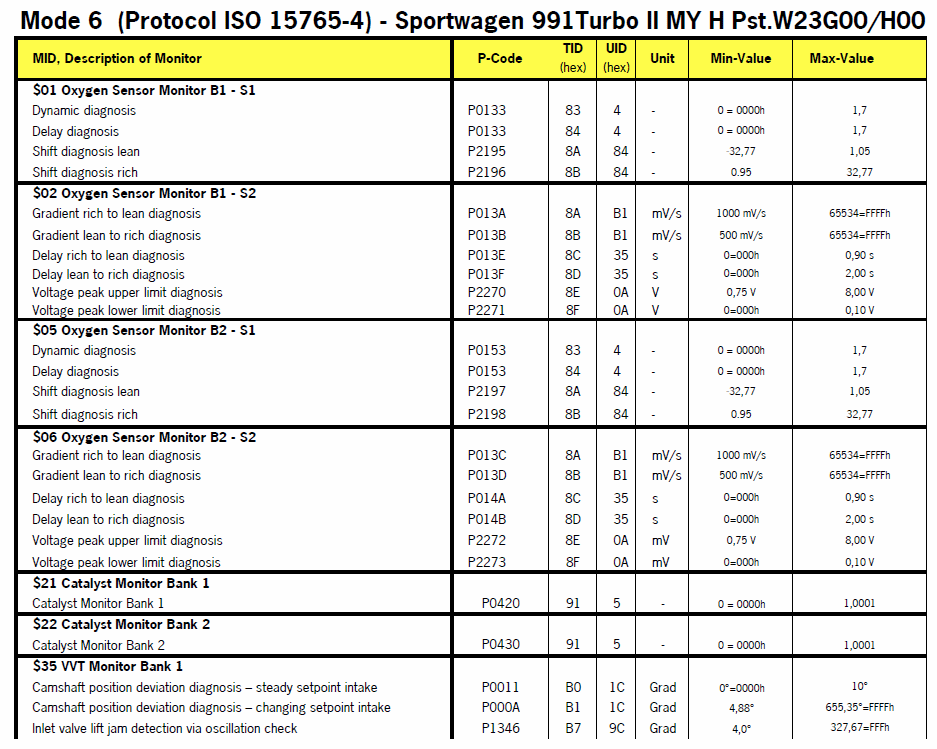

Fig 1: 911 (991) Turbo - 2017 (1 Of 3)
Courtesy of PORSCHE OF NORTH AMERICA, INC.

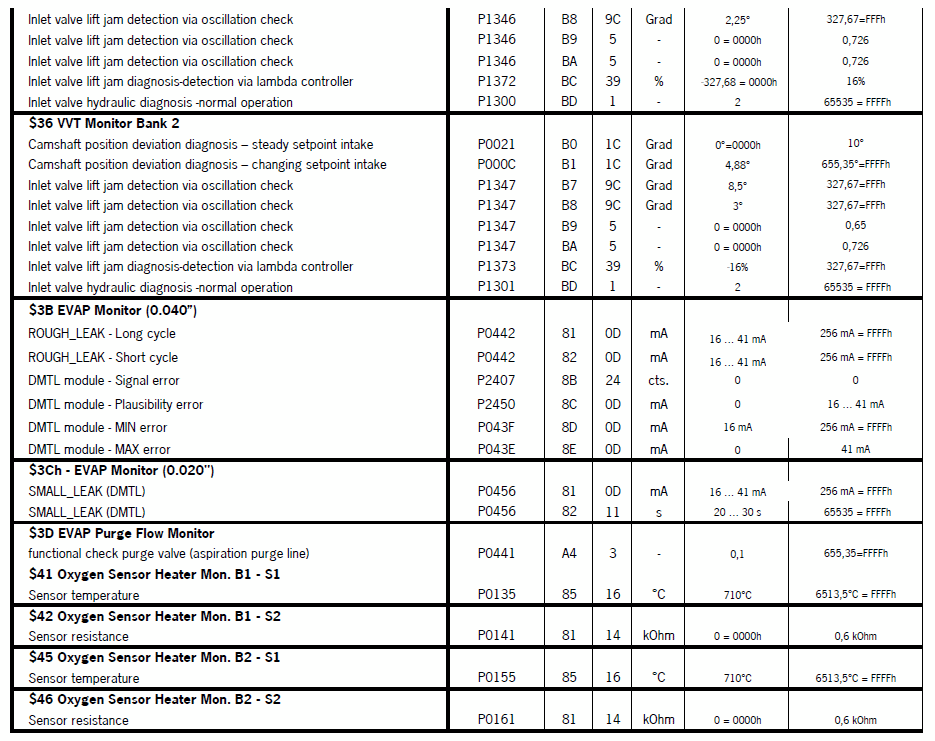

Fig 2: 911 (991) Turbo - 2017 (2 Of 3)
Courtesy of PORSCHE OF NORTH AMERICA, INC.

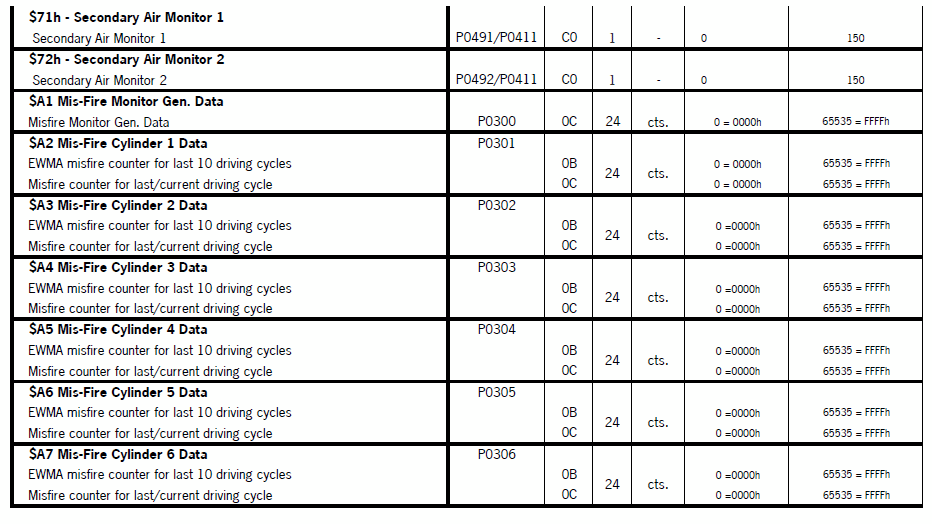

Fig 3: 911 (991) Turbo - 2017 (3 Of 3)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
