Installing DME control module

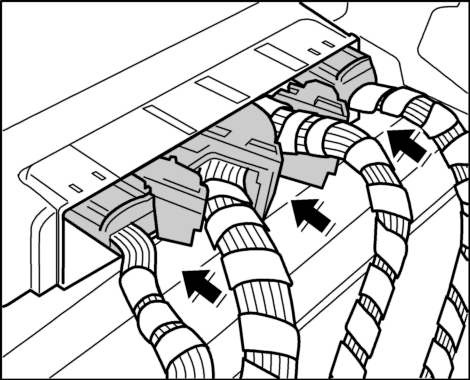

Fig 1: Connecting plug on control module

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Push in plug for DME control module and secure with the latching lever.

2. Press in connectors on the control module until they click into place.

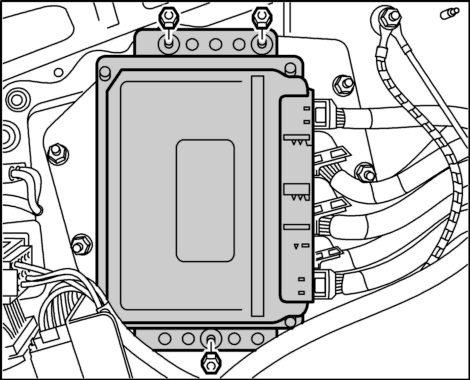

Fig 2: Securing control module

Courtesy of PORSCHE OF NORTH AMERICA, INC.

3. Position control module and secure with the fastening nuts. → M6: 7.5 ftlb.
