Component arrangement: CAN-internal

WARNING: This page is about a different car, the 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

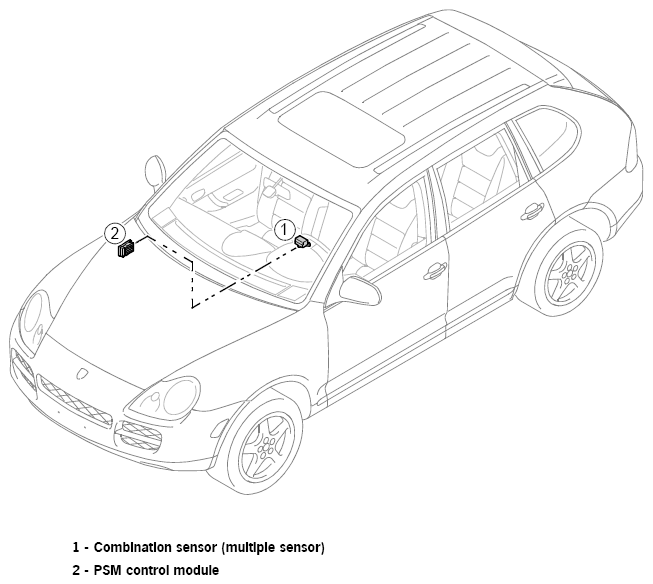

Fig 1: Identifying Component Arrangement Of CAN-Internal
G05373388Courtesy of PORSCHE OF NORTH AMERICA. INC.
