Removing multi-function remote control

Installation Location:

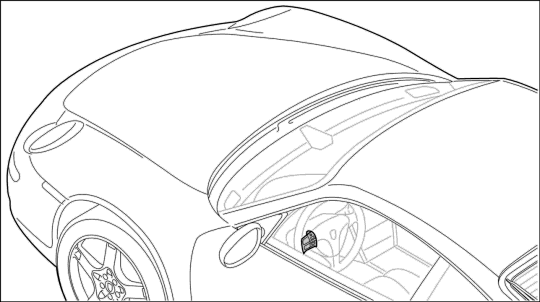

Fig 1: Installation position of steering wheel, shown on the 911

Courtesy of PORSCHE OF NORTH AMERICA, INC.

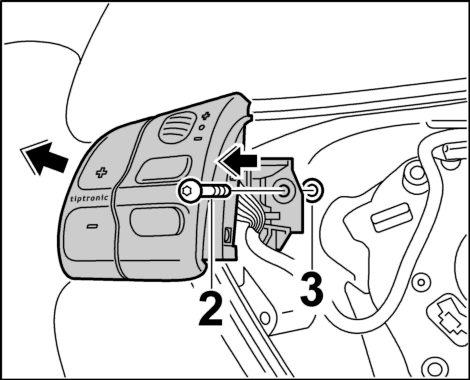

Fig 2: Removing remote control from steering wheel

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Unscrew the fastening screws -2-  and washers -3-  for the remote control and carefully lever the remote control out using a screwdriver. See Fig 2.

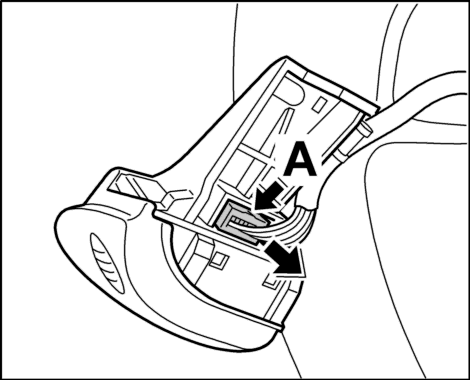

Fig 3: Releasing plug connection on the remote control

Courtesy of PORSCHE OF NORTH AMERICA, INC.

2. Release the electric plug connection on the remote control -A-  and disconnect it. See Fig 3.

3. Remove remote control.
