Installing transfer box control module

Installation Location:

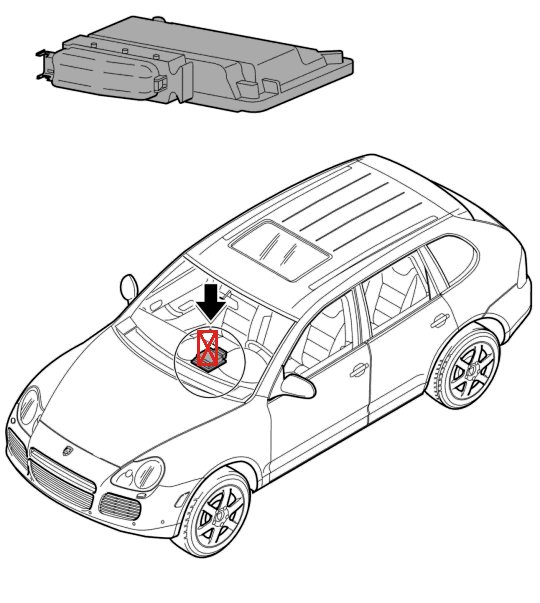

Fig 1: Installation location transfer box control module
G00464329Courtesy of PORSCHE OF NORTH AMERICA, INC.

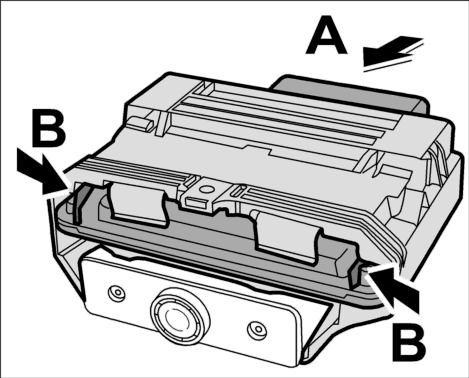

Fig 2: Installing control unit
GP00009864Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Insert the control unit -A-  until the locking tabs -B-  are felt to engage. See Fig 2.

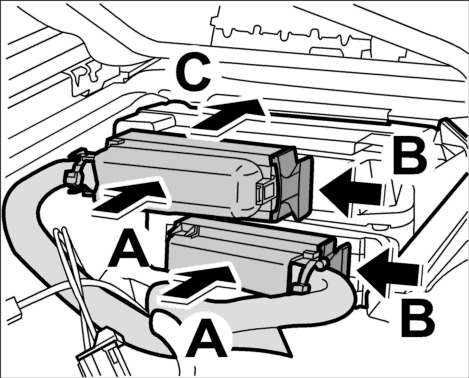

Fig 3: Installing control unit connectors
GP00009657Courtesy of PORSCHE OF NORTH AMERICA, INC.

2. Insert the two connectors -A-  and press in the locking mechanism -B-  until it is felt to engage. See Fig 3.

3. Place the support with the two control units in the installation position -C-  . See Fig 3.

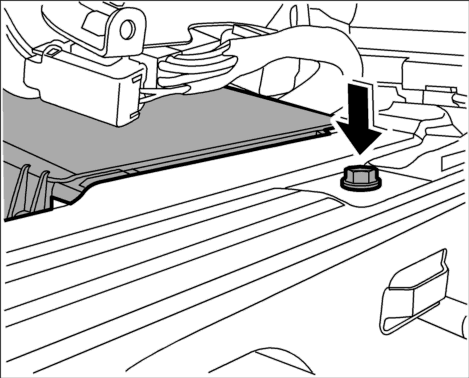

Fig 4: Support fastening screw
GP00009658Courtesy of PORSCHE OF NORTH AMERICA, INC.

4. Move seat all the way back and tighten the support with the fastening screw.

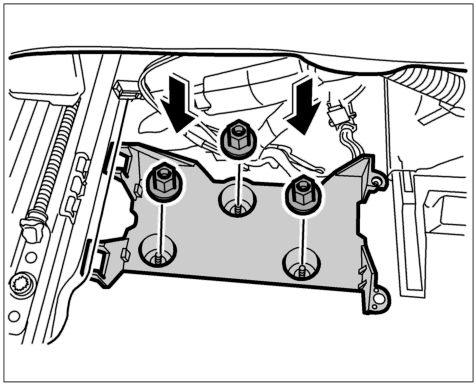

Fig 5: Telephone control unit support fasteners
GP00009652Courtesy of PORSCHE OF NORTH AMERICA, INC.
NOTE:
  • Only for vehicles with telephone

5. Position the support for the telephone control unit and screw down using the three fastening nuts.

6. For vehicles with a telephone, install the telephone control unit. Refer to 91 90 19 Removing and installing control unit for telephone - as of MY 2003 (All Models) .

7. Clip in right front seat trim and install drawer.
