Component arrangement - transfer box

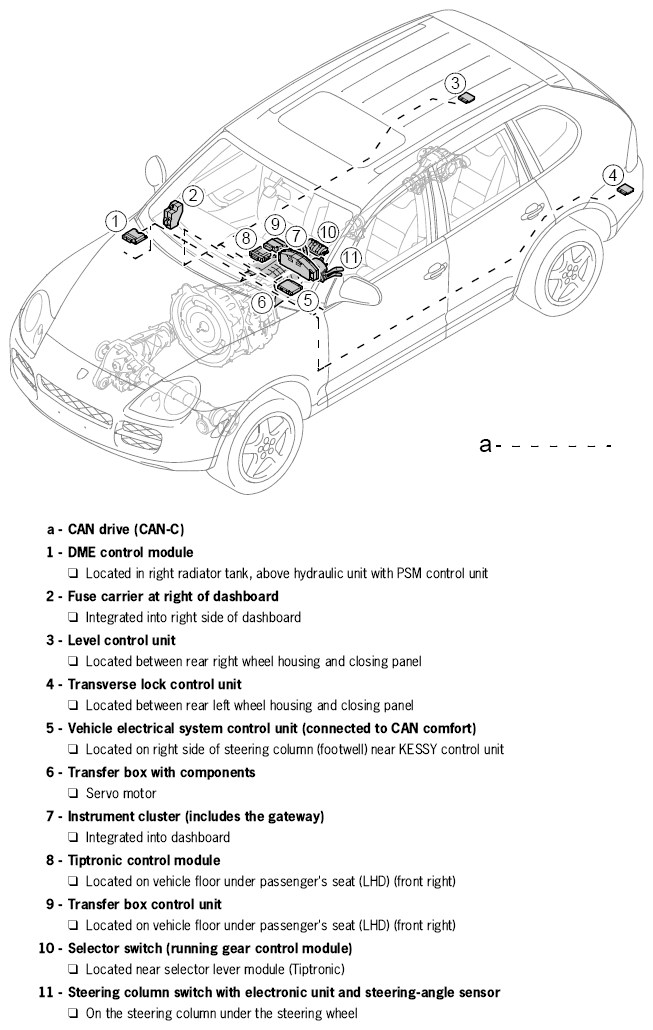

Fig 1: Identifying Transfer Box Component Arrangement

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Component arrangement 'Item 6' Transfer box with components

1 - Transfer box servo motor

A - Servo motor plug connection (power and ground supply for brake and motor)

B - Sensor plug connection

Fig 2: Identifying Transfer Box Servo Motor And Servo Motor Plug Connection

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Component arrangement 'Item 10' Selector switch (running gear control module)

1 - Selector switch housing

2 - Selector switch housing lower part

3 - Symbols 'Level control LED'

4 - Slider 'Manual set level'

5 - Switch 'PASM running gear tuning'

6 - Slider 'Manual set longitudinal lock/transverse lock/gear reduction'

7 - Symbols 'Longitudinal lock/transverse lock/gear reduction LED'

Fig 3: Identifying Selector Switch Component Arrangement

Courtesy of PORSCHE OF NORTH AMERICA, INC.
