Removing Servotronic control unit

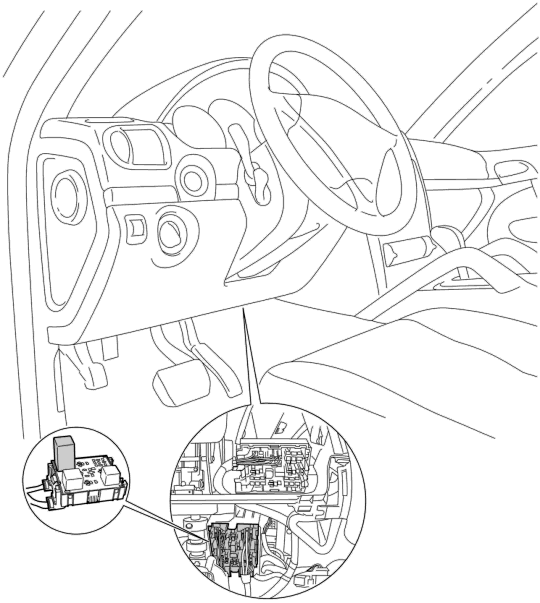

Fig 1: Location of Servotronic control unit

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Remove trim panel under dashboard. Refer to 70 19 19 Removing and installing trim under dashboard - as of MY 2003 (All Models) .

Remove holder for stop light switch → 481519 Removing and installing steering column - chapter on "Removing" [9PAAE1 9PAAE7 9PAAF1] , → 481519 Removing and installing steering column - chapter on "Removing" [9PAAD1 9PAAD7] → 481519 Removing and installing steering column - chapter on "Removing" [9PAAJ1 9PAAK1] .

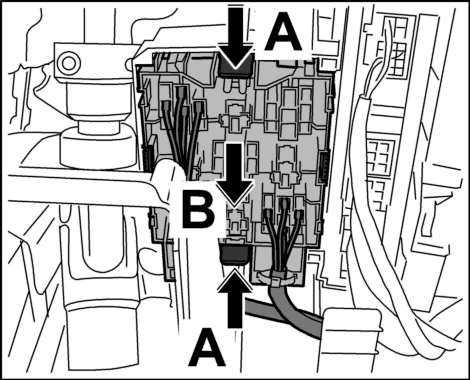

Fig 2: Releasing left relay carrier

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Release the left relay carrier -Arrows A-  and pull it down and out -Arrow B-  . See Fig 2.

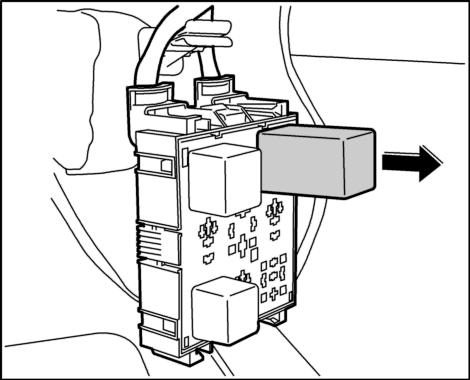

Fig 3: Removing control unit from relay carrier

Courtesy of PORSCHE OF NORTH AMERICA, INC.

2. Remove the control unit from the relay carrier -arrow-  . See Fig 3.
