Installing side airbag unit: Notes

Installation of left/right identification of the side airbag unit:

• Inscription R = Right door
• Inscription L = Left door
• Locking pin -A-  must always point to the rear. See Fig 1 .
• The wire connection point -B-  must always face the front. See Fig 1 .
• Fastening clip M5 -C-  always to the rear. See Fig 1 .

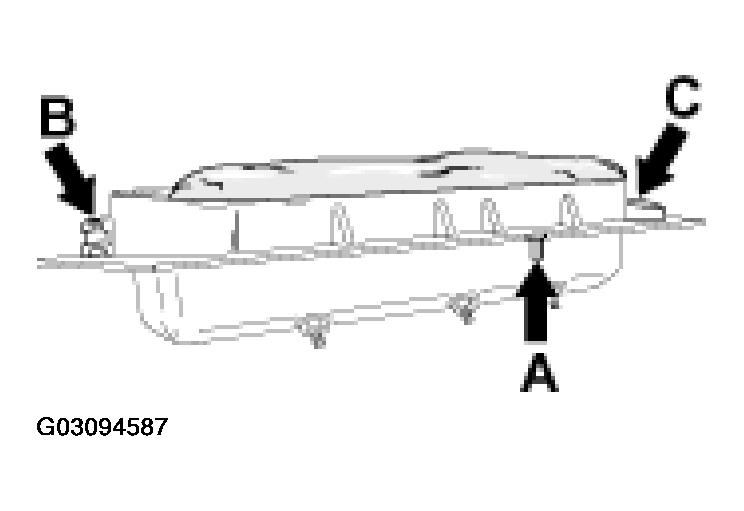

Fig 1: Installing Side Airbag Unit

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Install airbag unit with the inscription "R" in the right-hand door and fasten.
2. Engage electrical plug connection.

   Tightening torque for fastening screws (4 screws M6 x 16): 10 N.m (7.5 ft.lb), (1 screw M5 x 10): 6 N.m (4.5 ft.lb)

3. Reinstall the door trim panel.
