Installing contact unit

Remove the airbag steering wheel. Refer to REMOVING AND INSTALLING STEERING WHEEL (AIRBAG) .
Undo and remove the panel.

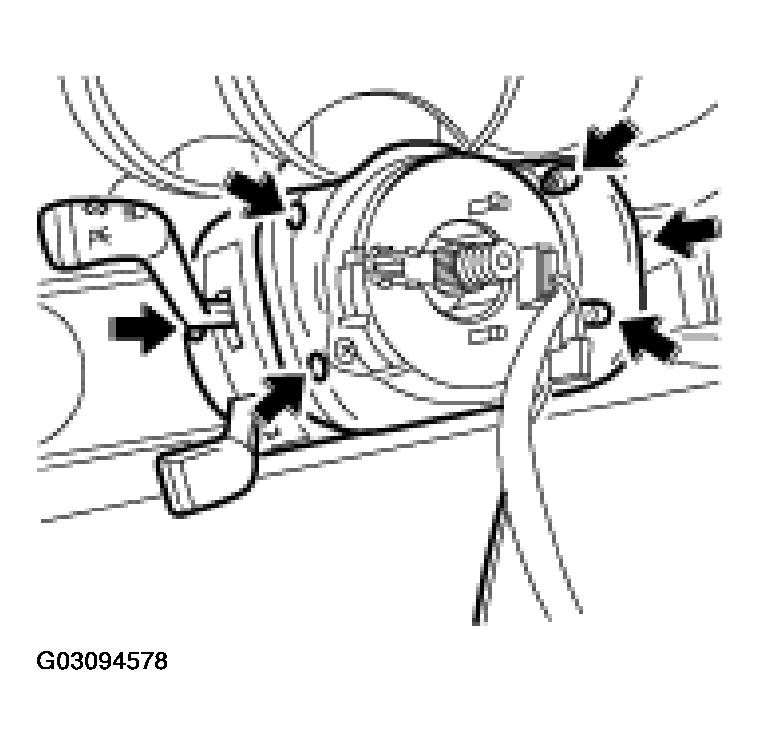

Fig 1: Removing Steering Column Panel
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Undo the -fastening screws- of the contact unit. See Fig 2 .

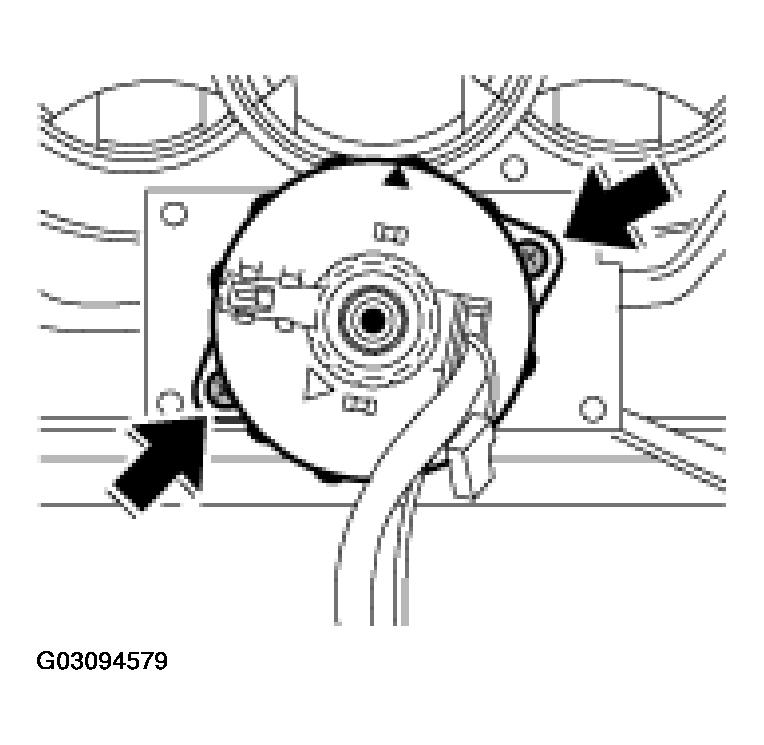

Fig 2: Removing Airbag Contact Unit
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Pull forward and disconnect the electrical plug connections.
Remove the contact unit.

NOTE:

To prevent unintended rotation of the contact unit (KE) when the steering wheel has been removed, the contact unit locks itself when the steering wheel is pulled back!
Likewise, the contact unit unlocks automatically when the steering wheel is refitted!

Front wheels still unchanged in straight-ahead position.
Ensure that the exact center position -(arrows)- of the contact unit is maintained. See Fig 1 .

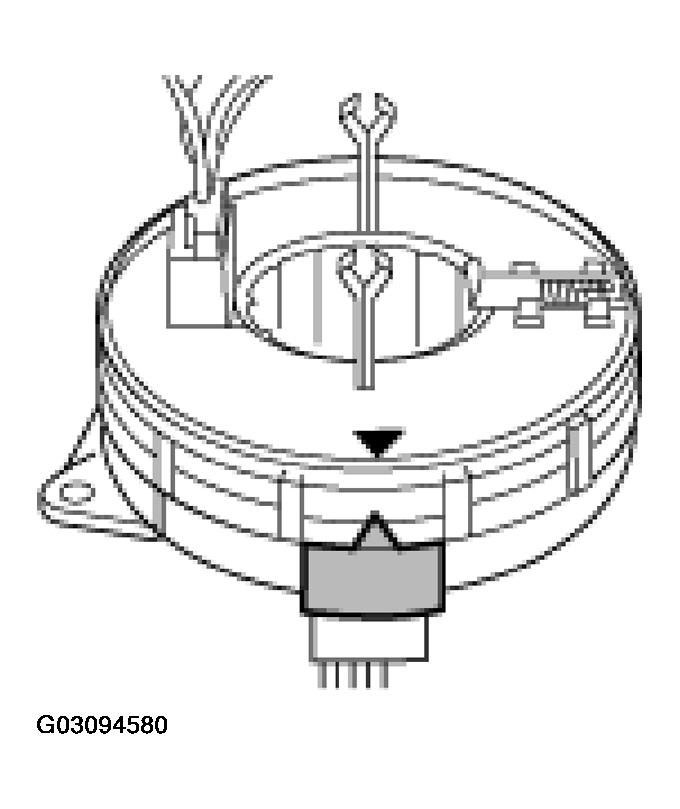

Fig 1: Installing And Aligning Airbag Contact Unit
Courtesy of PORSCHE OF NORTH AMERICA, INC.
