Remove sensor for side airbag

NOTE:

Sensors for triggering the side airbag unit are fastened on the inner lower side member on the left and right-hand sides in the vehicle.
After an accident, the sensor of the triggered side airbag unit must be examined for damage and replaced if necessary.
The sensor must be replaced after the side airbag has been triggered for the third time
Safety conditions must be observed when handling airbags. See Safety regulations for vehicles with airbag and belt tensioner
Remove front seat. Refer to REMOVING AND INSTALLING FRONT SEAT .
Remove the side lining at rear. Refer to REMOVING AND INSTALLING SIDE-PANEL LINING .
Remove sill. Refer to REMOVING AND INSTALLING INNER SILL (PASSENGER SIDE) .

Disengage floor covering at the support and lay it in the vehicle interior.
Unlock locating peg -1- of the support using the commercially available removal tool. See Fig 1 . See Tools .

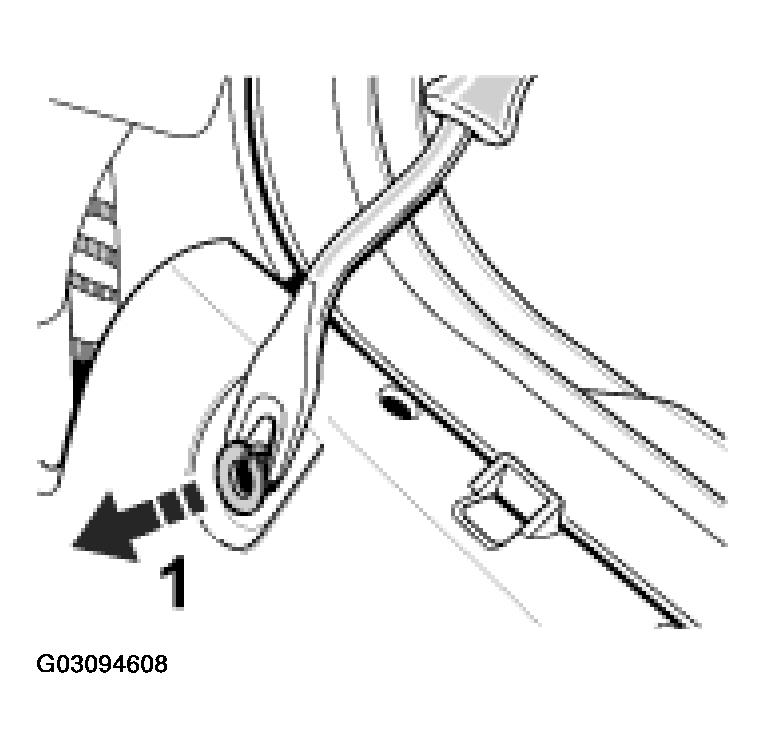

Fig 1: Removing Locating Peg
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Unscrew fastening screws -2- and nuts -3- and carefully pull the support up and out of the retaining points. See Fig 2 .

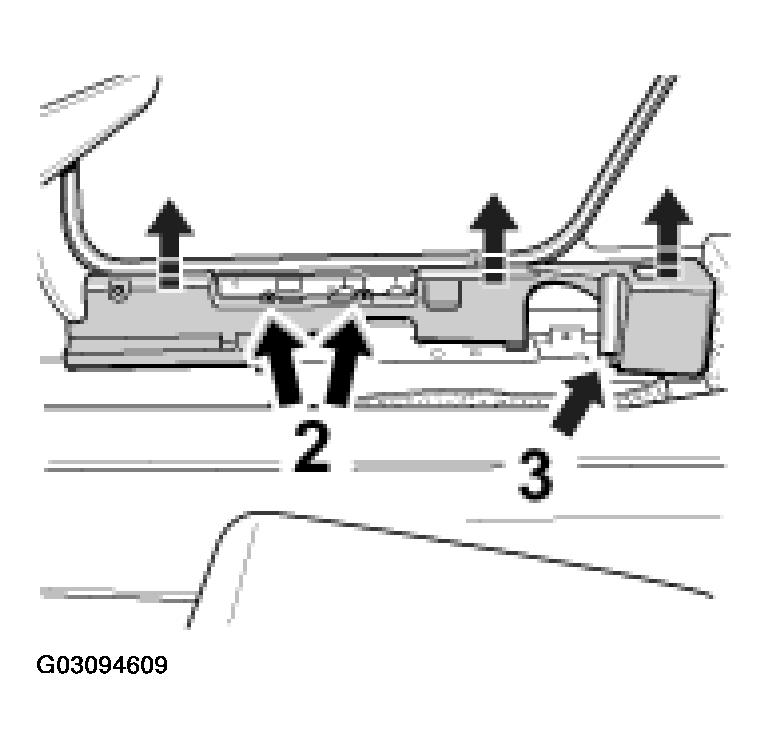

Fig 2: Removing Support
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Loosen the electrical plug connection on the airbag sensor.

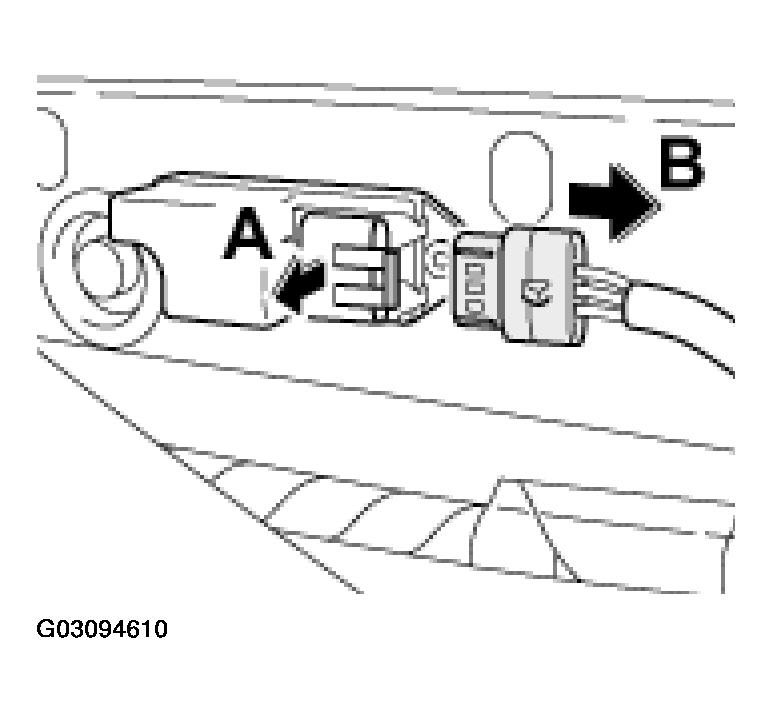

Fig 3: Disconnecting Electrical Plug Connection On Side Airbag Sensor
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Remove both fastening screws and remove the sensor.

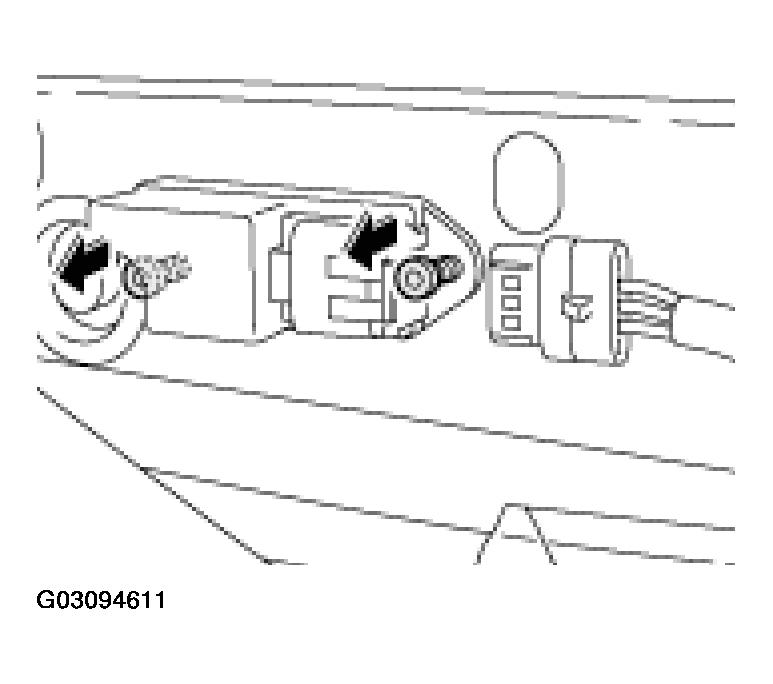

Fig 4: Removing Side Airbag Sensor
Courtesy of PORSCHE OF NORTH AMERICA, INC.
