Removing DME control module

NOTE: Switch ignition off and remove ignition key.

Fold the backrests of the rear seats forward.
Lift the carpet lining up and remove.
Unscrew fastening screw -1- and loosen fixing nut -2- .
Turn over the control module holder -3- . Refer to Fig 1 .

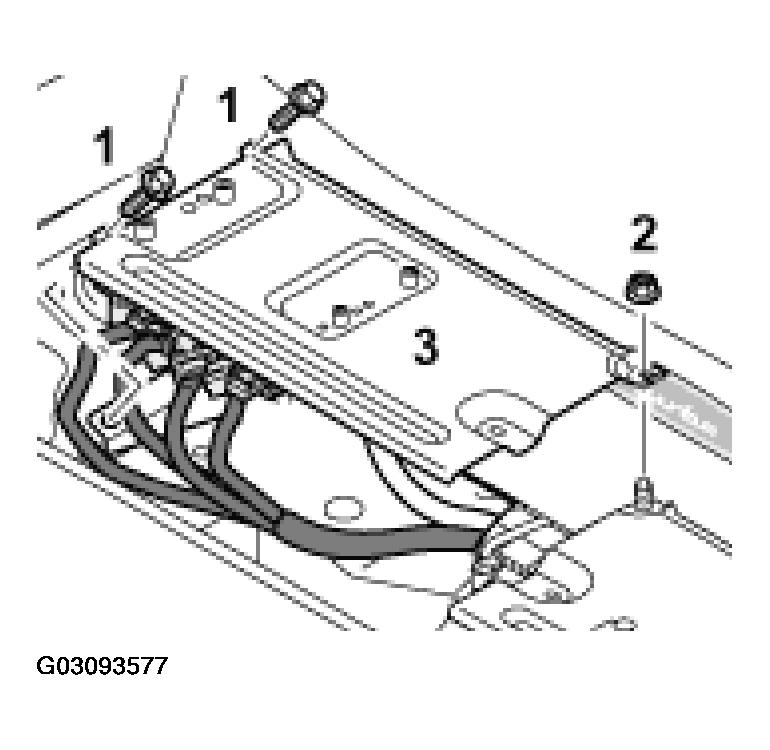

Fig 1: Identifying Fastening Screws, Fixing Nut & Control Module Holder
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Push in connectors -A- -arrow- and pull out. Refer to Fig 2 .

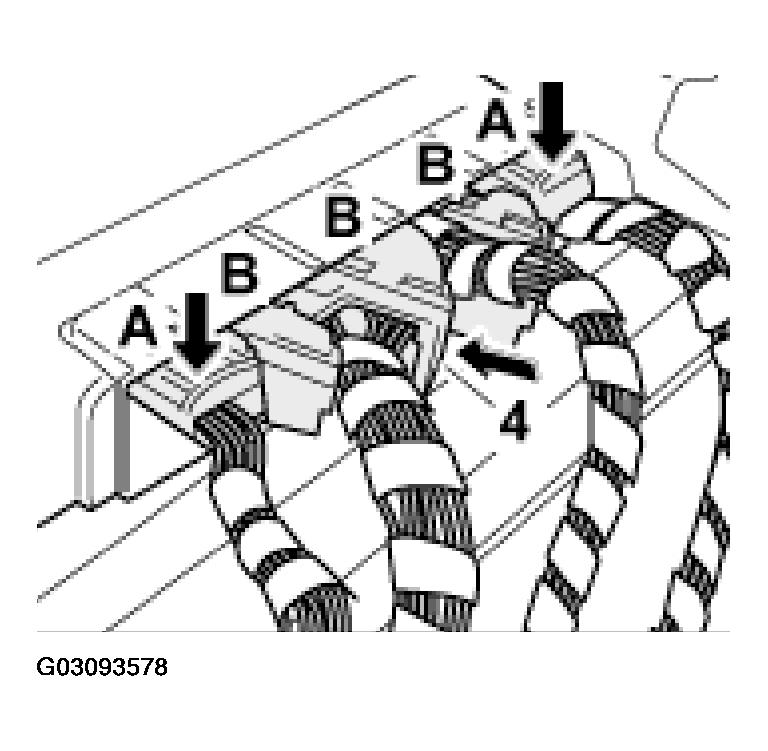

Fig 2: Identifying Connectors, Locking Element & Latching Lever
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Push in locking element -arrow- of connectors -B- and actuate the latching lever -4- . Refer to Fig 2 .
Unscrew 4 fastening screws on the control module holder -3- and remove the control module. Refer to Fig 1 .
