Installing the DME control module

Fasten the control module on the control module holder with the four fastening screws. Tightening torque: 10 Nm (7.5 ftlb.).
Push in connectors -B- on the DME control module and close the latching lever -4- until the lever engages. Refer to Fig 1 .

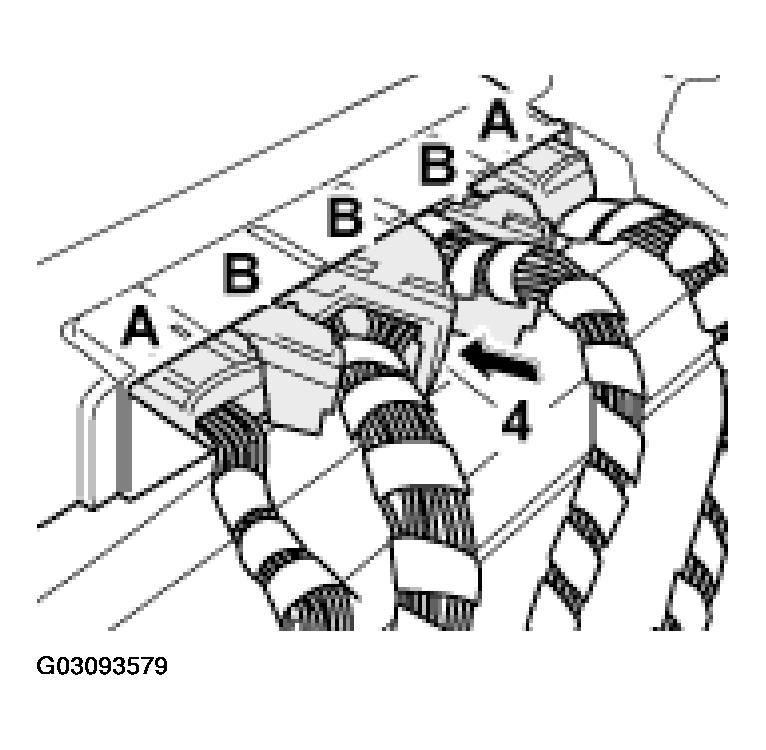

Fig 1: Identifying Connectors, Locking Element & Latching Lever
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Press in plugs -A- on the control module, until they engage. Refer to Fig 1 .
Turn over the control module holder -3- and push it in under the fastening nut -2- . Refer to Fig 2 . Tighten both fastening screws -1- and the fastening nut -2- . Tightening torque: 10 Nm (7.5 ftlb.).

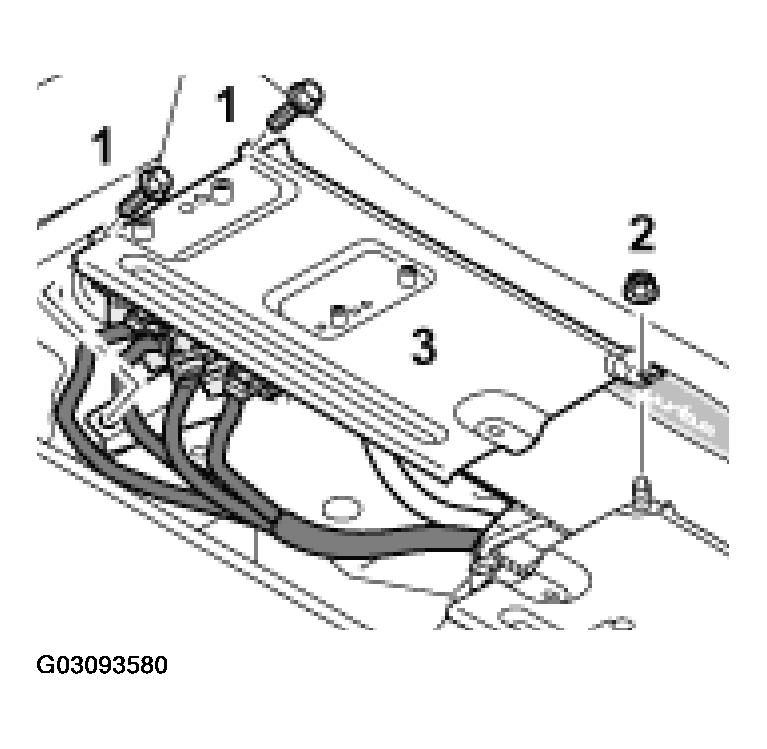

Fig 2: Identifying Fastening Screws, Fixing Nut & Control Module Holder
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Place carpet lining in position, paying attention to the fitted shape.
Program the DME control module with the Porsche System Tester. Refer to PROGRAMMING THE NEW DME CONTROL MODULE 911 TURBO (996) , PROGRAMMING THE NEW DME CONTROL MODULE - GT2 AND VERSION X51 , PROGRAMMING THE DME CONTROL MODULE 911 TURBO (996) , PROGRAMMING DME CONTROL MODULE - GT2 AND VERSION X51 .
