Vacuum lines

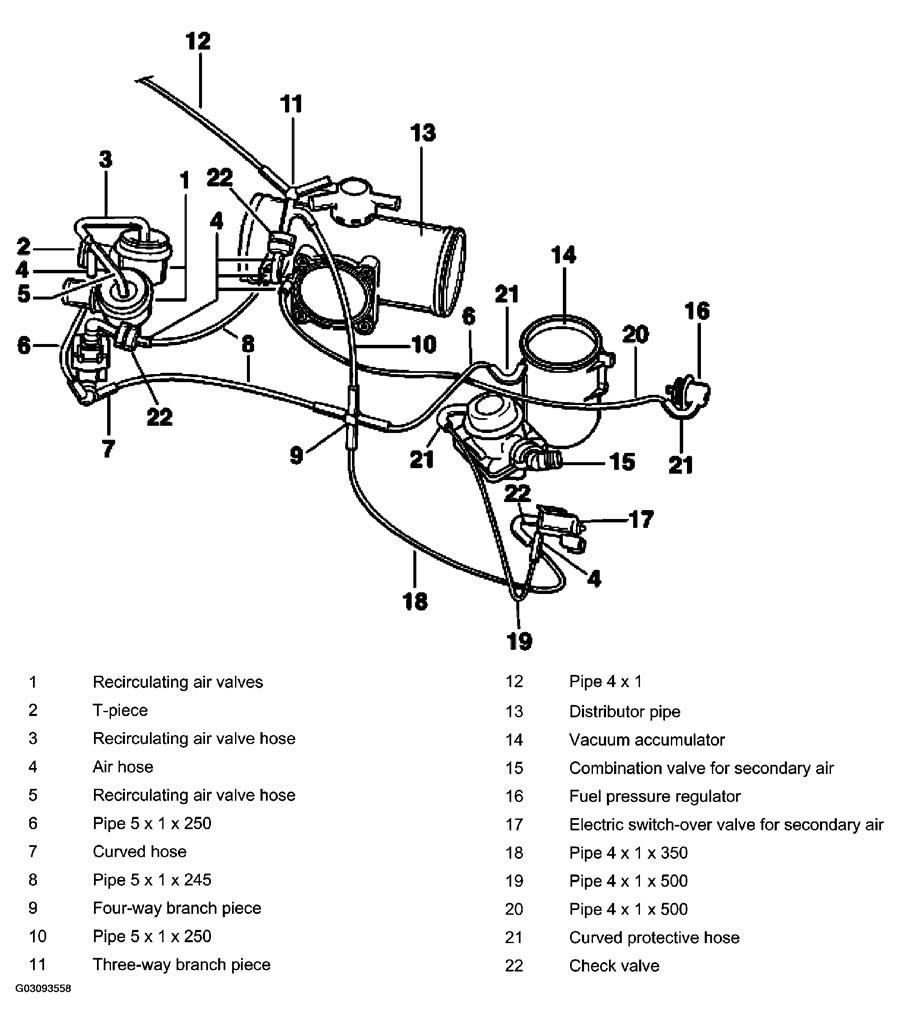

Fig 1: Identifying Vacuum Lines On Engine

Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE: This line leads to the Tiptronic transmission; it is not present in the manual transmission version.

NOTE: When fitting the hosing, it is prohibited to use spray oil. Soap suds may be used to make fitting easier.
