Disassembling the intake distributor

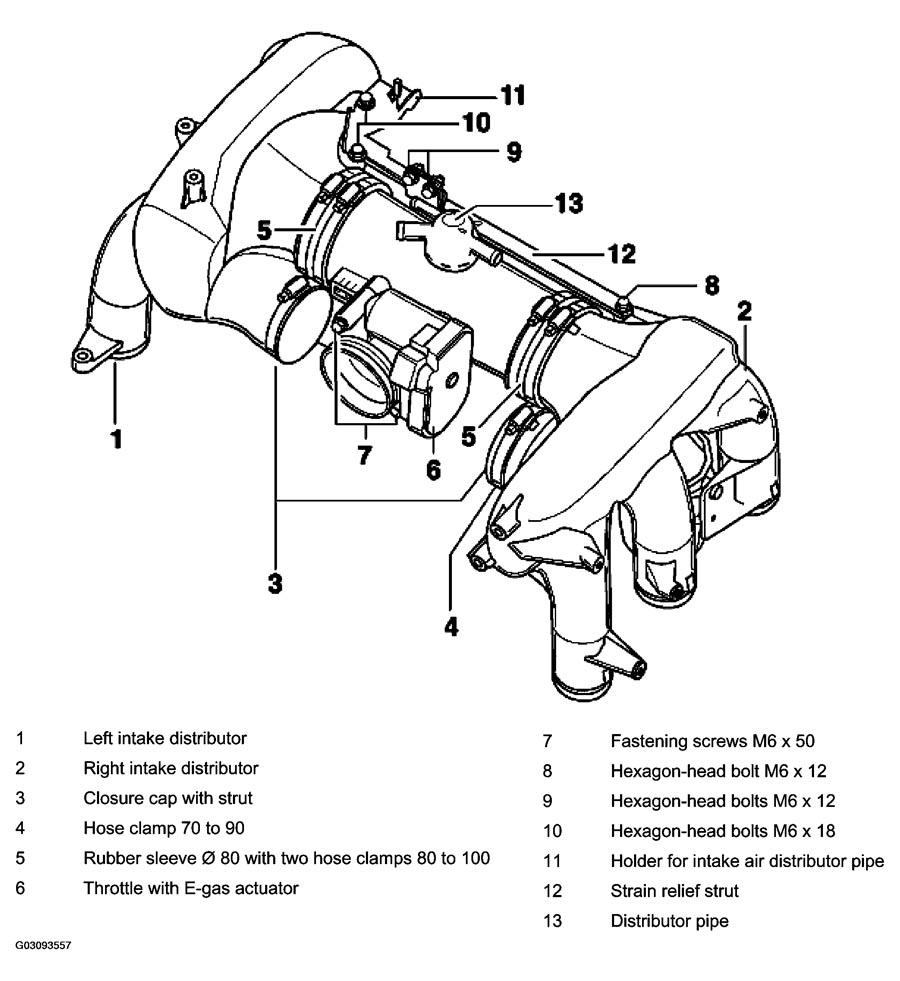

Fig 1: Identifying Intake Distributor Components

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Unscrew screws no. 8 and no. 10 and remove the strain relief.
2. In each case, undo the two hose clamps on the left and right of the distributor pipe and push the rubber sleeves as far as possible on to the distributor pipe. Then remove the distributor pipe.
3. Open the two hose clamps on the closure caps with strut and remove the strut.
4. Disconnect the vacuum lines.
