Removing level control module

WARNING: Risk of damage to electronic control modules.
  • If care is not taken, electrical and electronic components may be destroyed.

→ Before removing the control module, switch off the ignition and remove the ignition key.

NOTE:
  • The control module is located behind the right rear side section trim.

Installation Location:

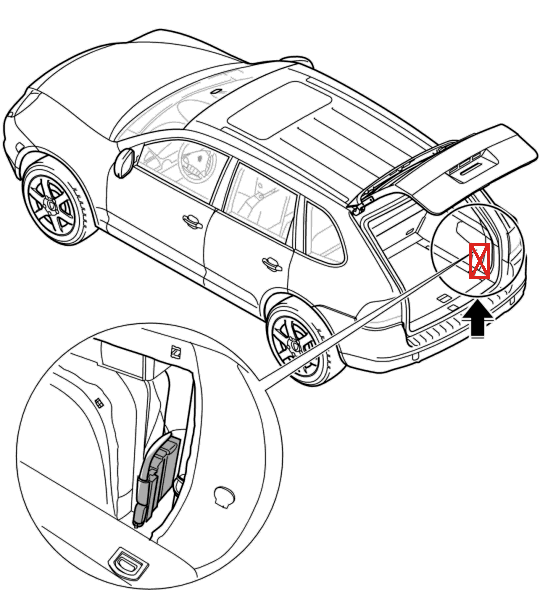

Fig 1: Overview of level control module
G00464373Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Remove the cover of the right rear side section trim.

2. Remove warning triangle and emergency kit.

Fig 2: Pull plug off at the top of the level control module.
GP00010282Courtesy of PORSCHE OF NORTH AMERICA, INC.

3. Pull up the clip of the control module holder and tilt the control module out of the holder.

4. Pull the latch of the upper electrical plug upwards -a-  and remove plug. See Fig 2.

Fig 3: Pull plug off at the bottom of the level control module.
GP00010284Courtesy of PORSCHE OF NORTH AMERICA, INC.

5. Pull out control module and pull the latch on the electrical plug -a-  and remove plug. See Fig 3.
