Lock Mount: Removal

To remove lock mount, refer to illustrations. See Fig 1 and Fig 2 .

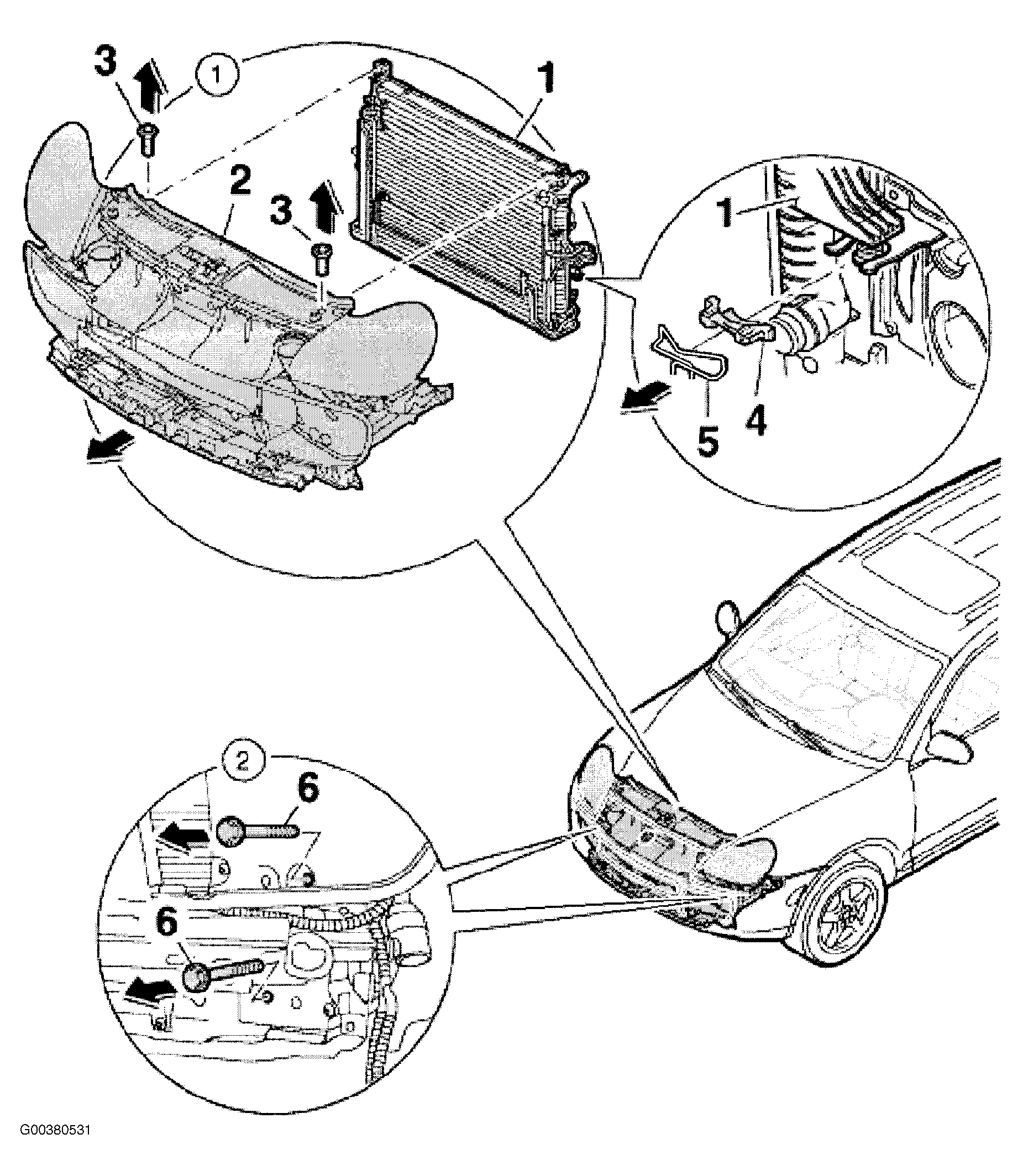

Fig 1: Removing Lock Mount (1 Of 2)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

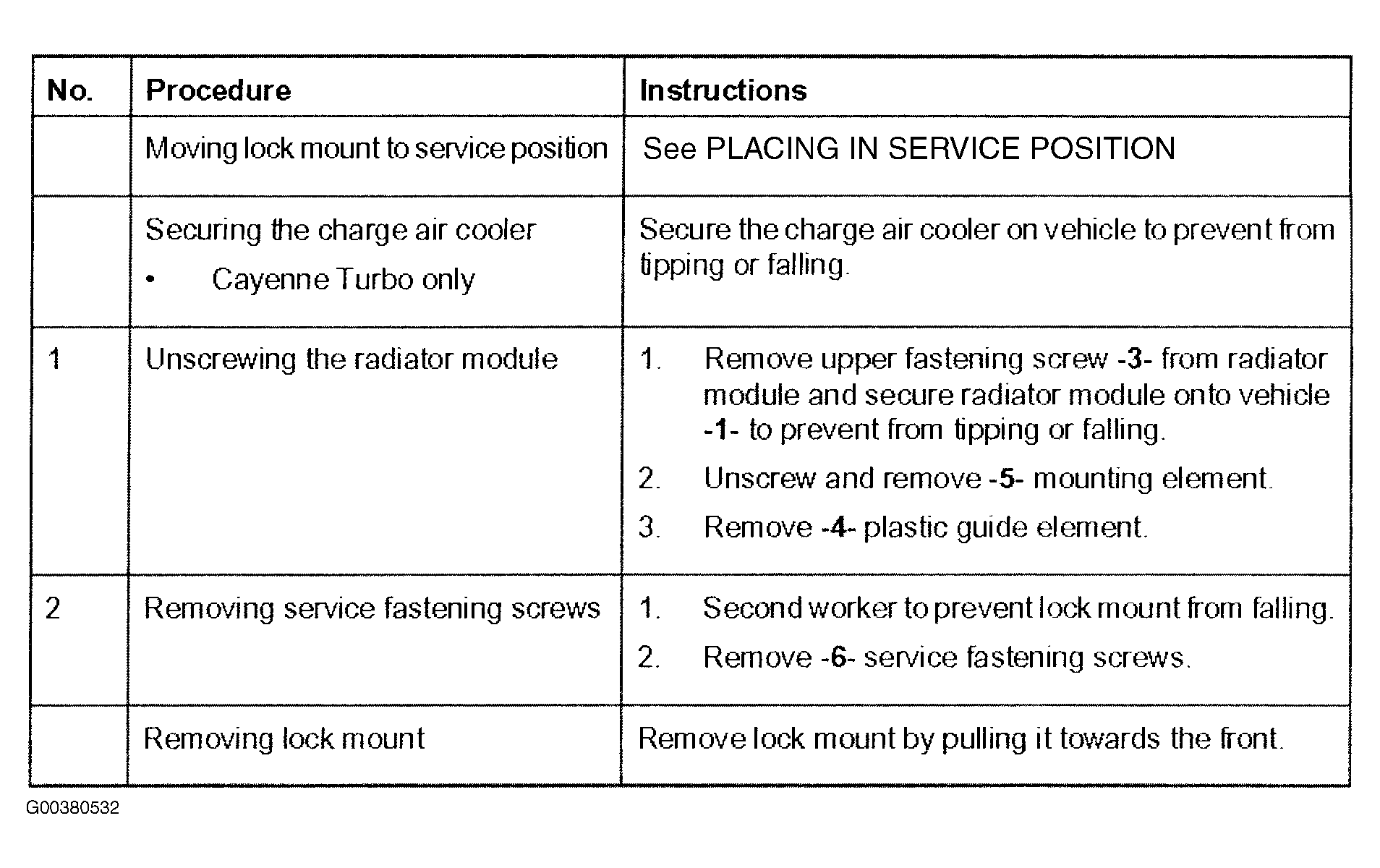

Fig 2: Removing Lock Mount (2 Of 2)

Courtesy of PORSCHE OF NORTH AMERICA, INC.
