Lock Mount: Installation

To install and secure lock mount, refer to illustrations. See Fig 1 -Fig 6 .

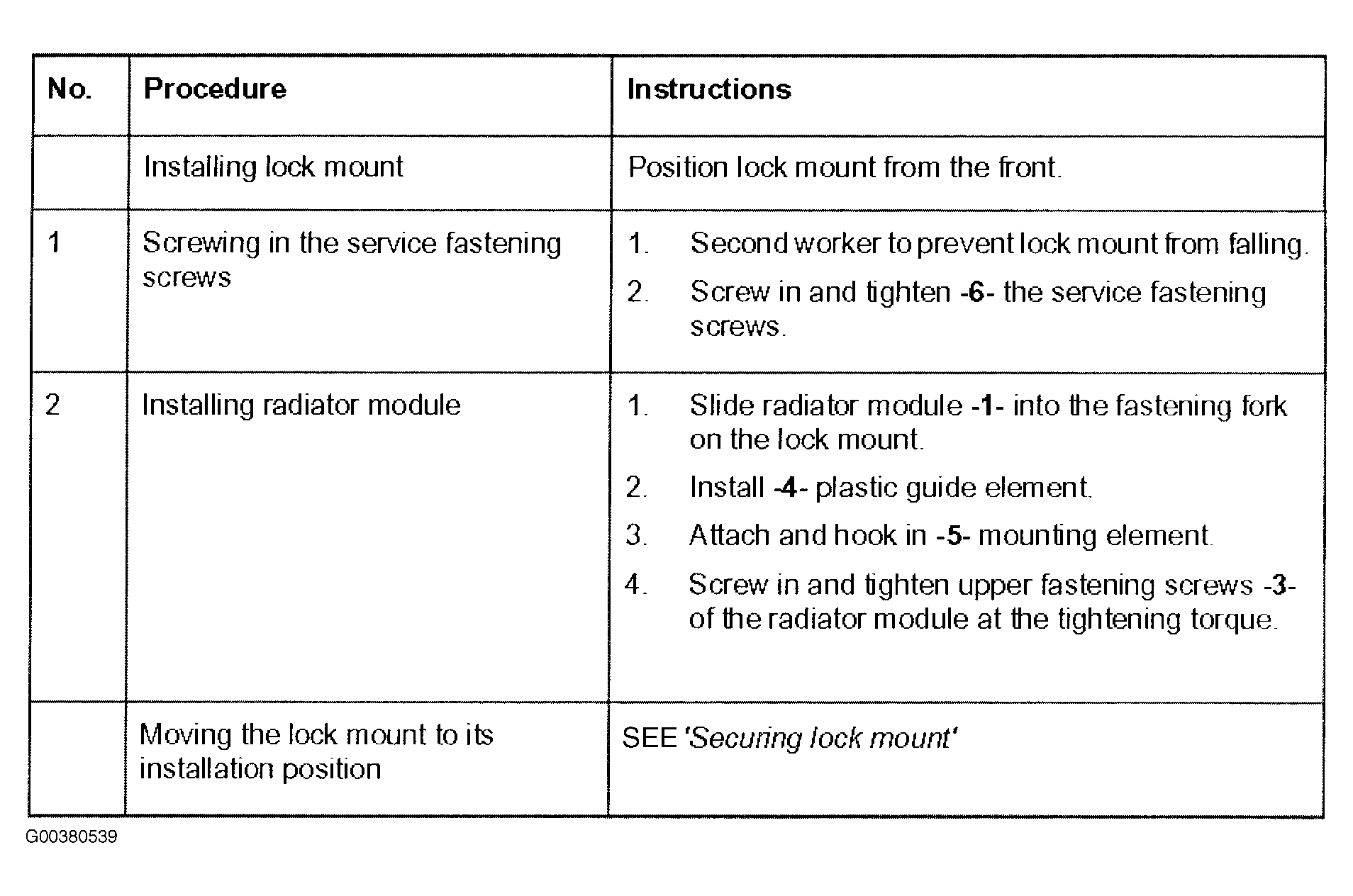

Fig 1: Installing Lock Mount (1 Of 2)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

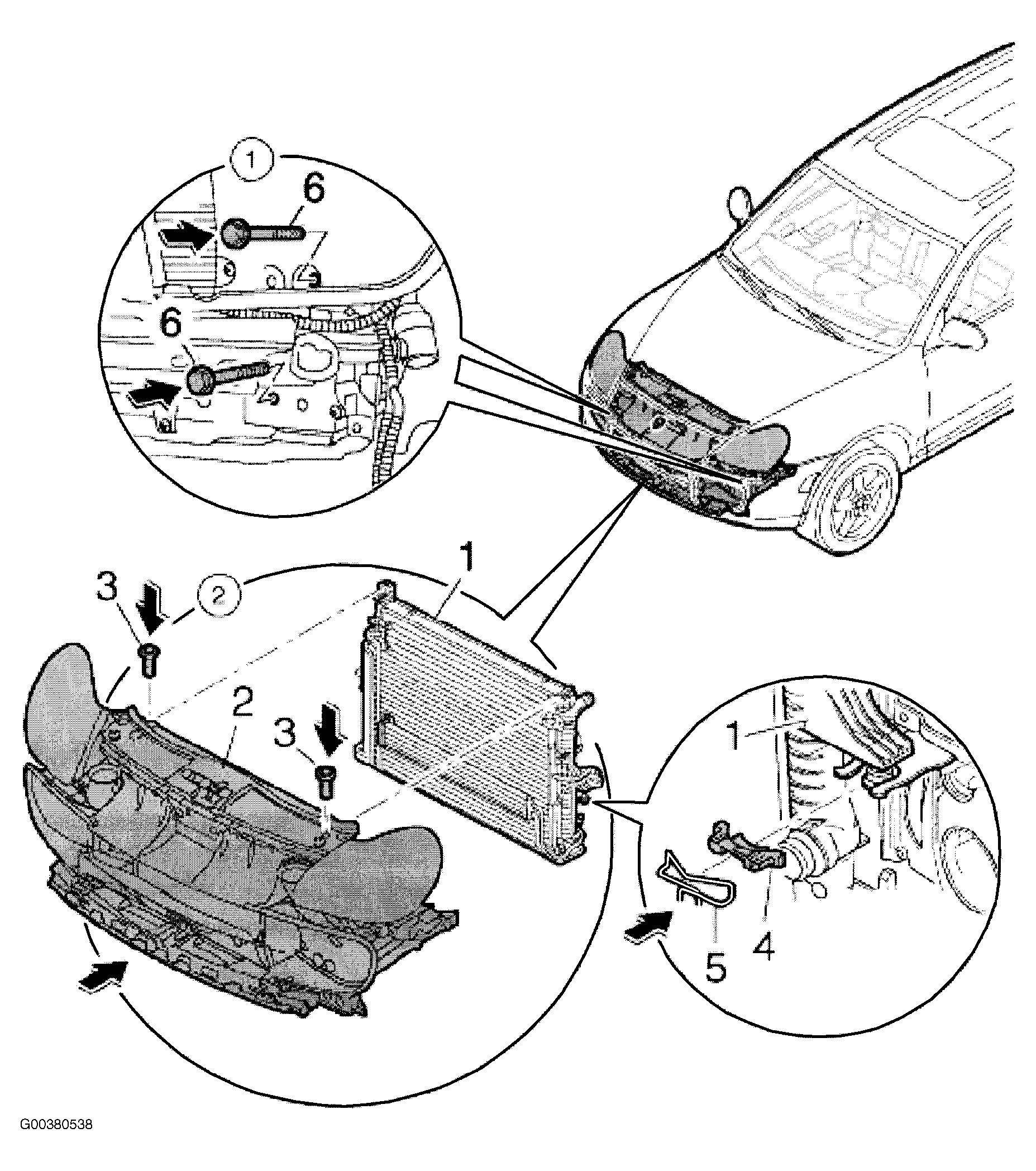

Fig 2: Installing Lock Mount (2 Of 2)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

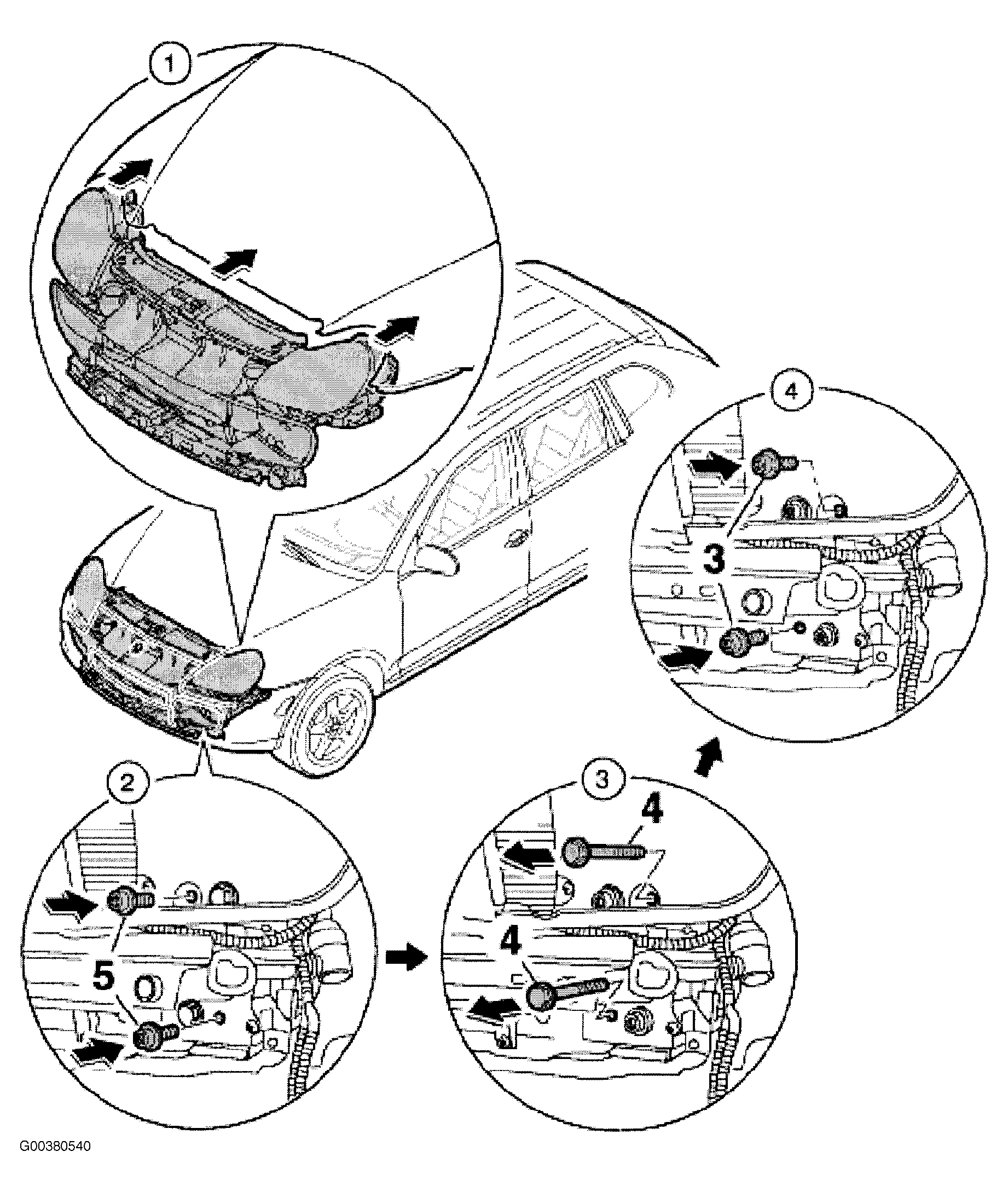

Fig 3: Securing Lock Mount (1 Of 4)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

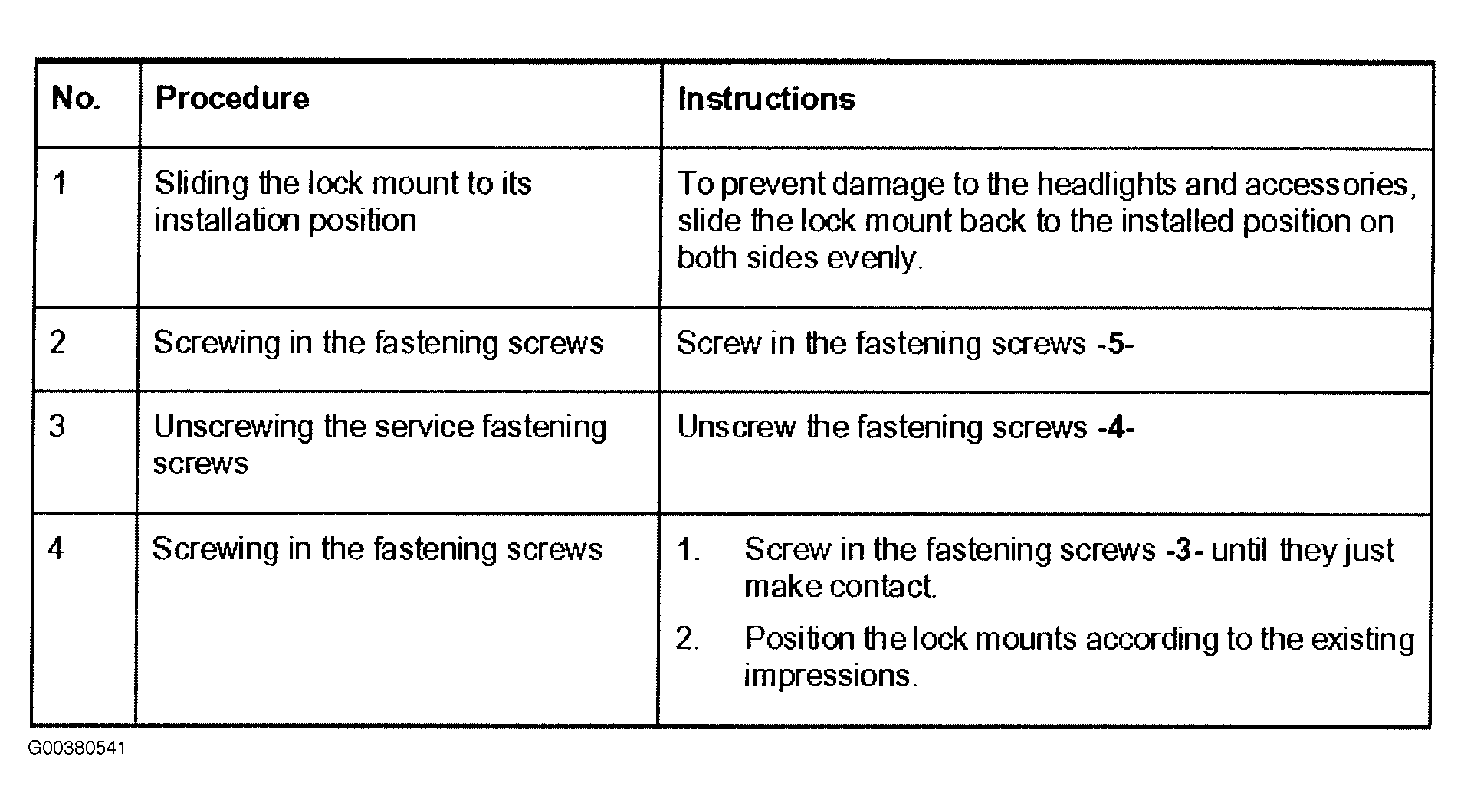

Fig 4: Securing Lock Mount (2 Of 4)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

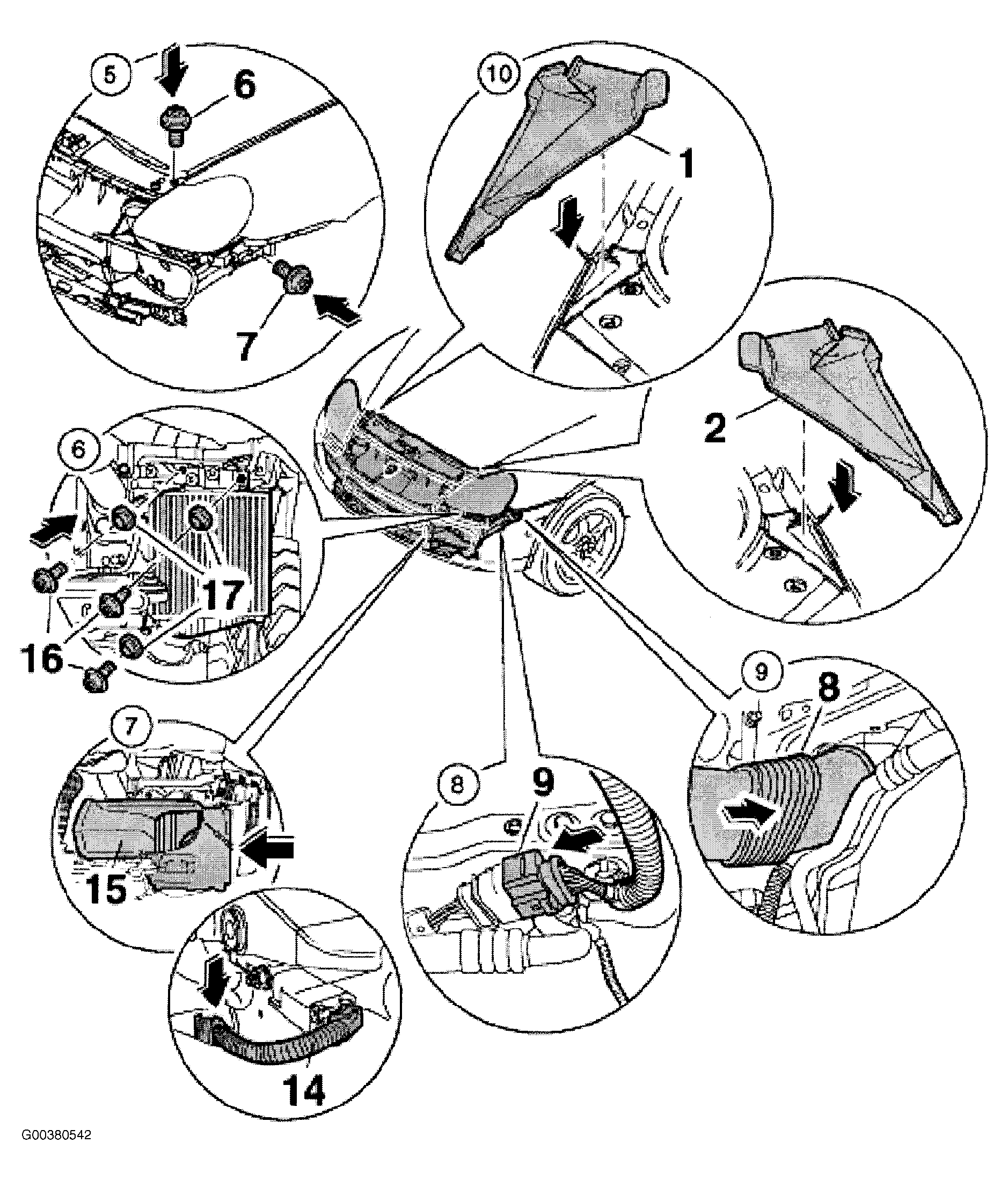

Fig 5: Securing Lock Mount (3 Of 4)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

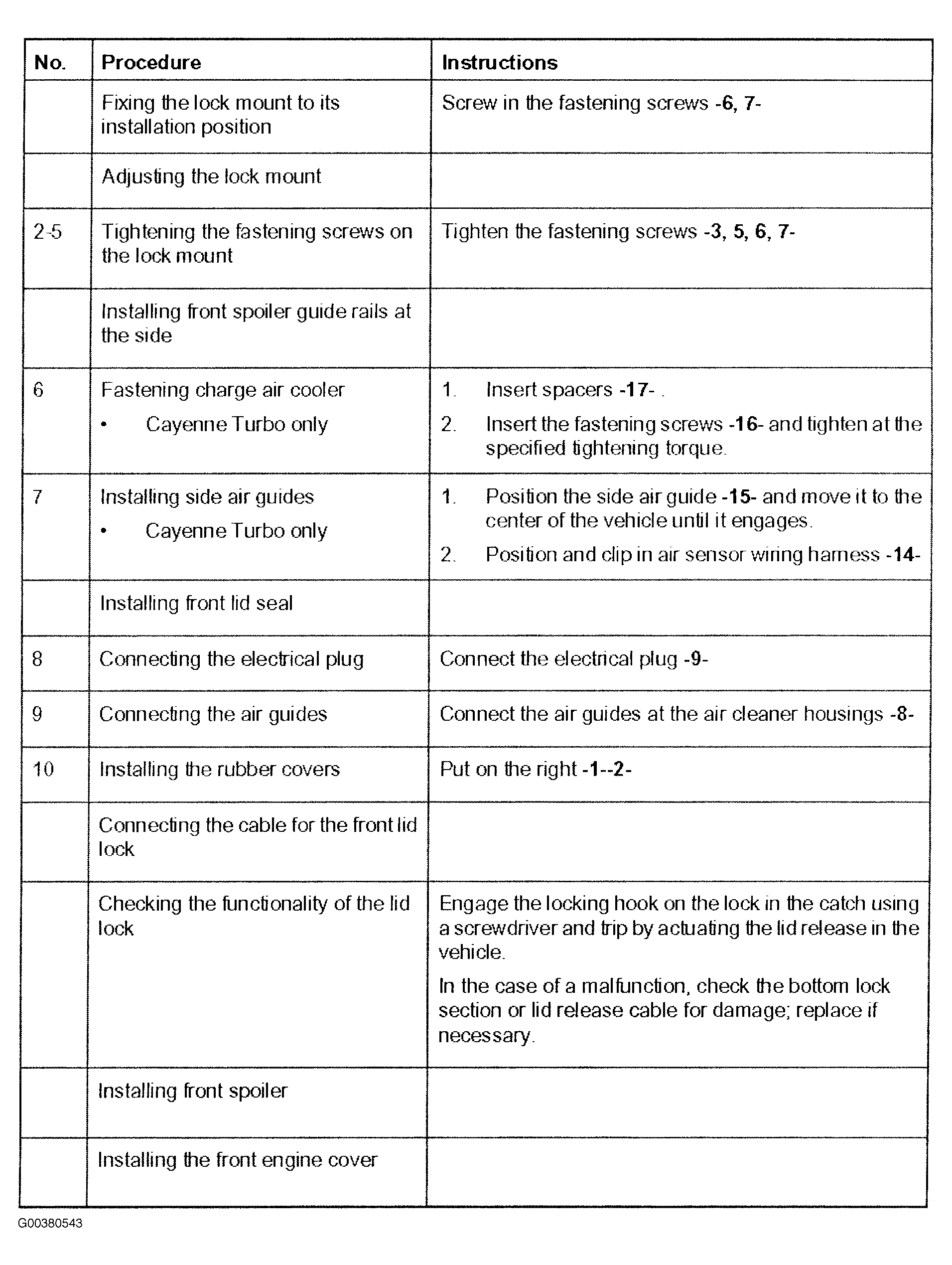

Fig 6: Securing Lock Mount (4 Of 4)

Courtesy of PORSCHE OF NORTH AMERICA, INC.
