Selector Lever Cable

Move selector lever to position "P". Remove selector knob. See SELECTOR KNOB under REMOVAL & INSTALLATION.
Remove center console cover, by removing two screws (arrows). See Fig 1 . Disconnect plug connection (inset), tip cover up and back, then remove cover.

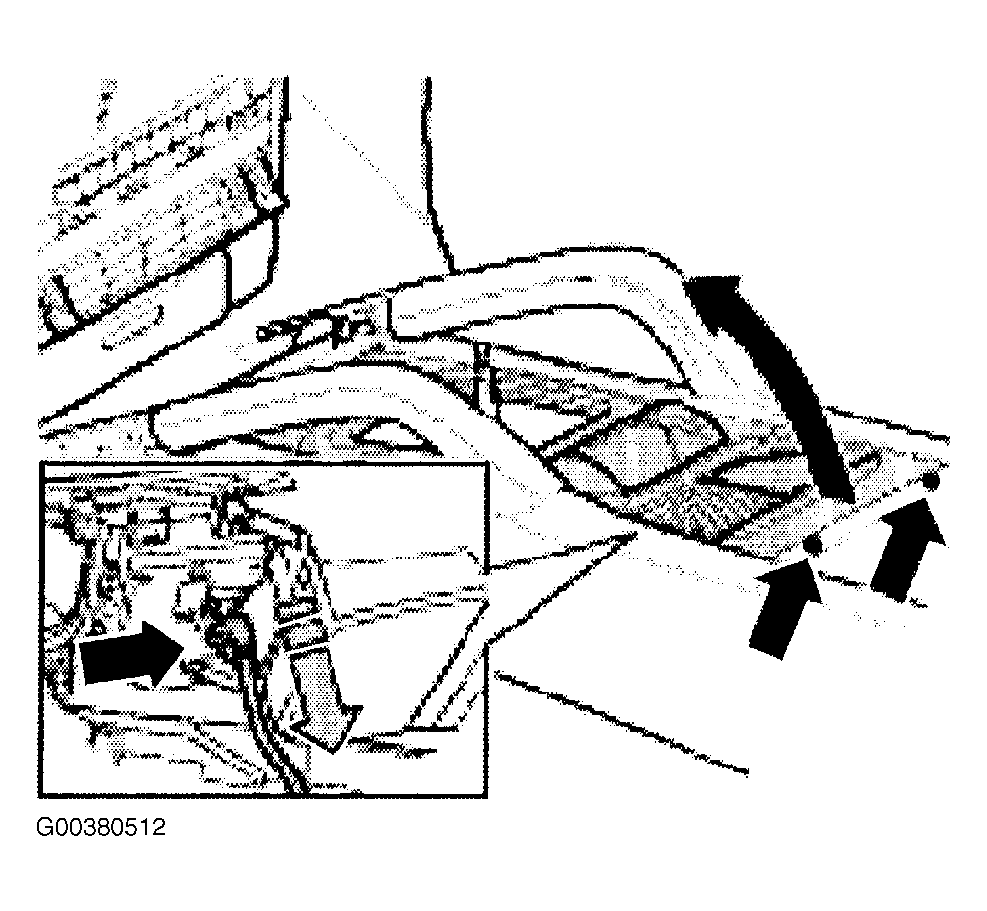

Fig 1: Removing Center Console Cover
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Remove selector frame bolts (arrows). See Fig 2 . Undo selector lever cable screw connection on selector support (right arrow), using special inserts (model AB 170) tool. See Fig 3 .

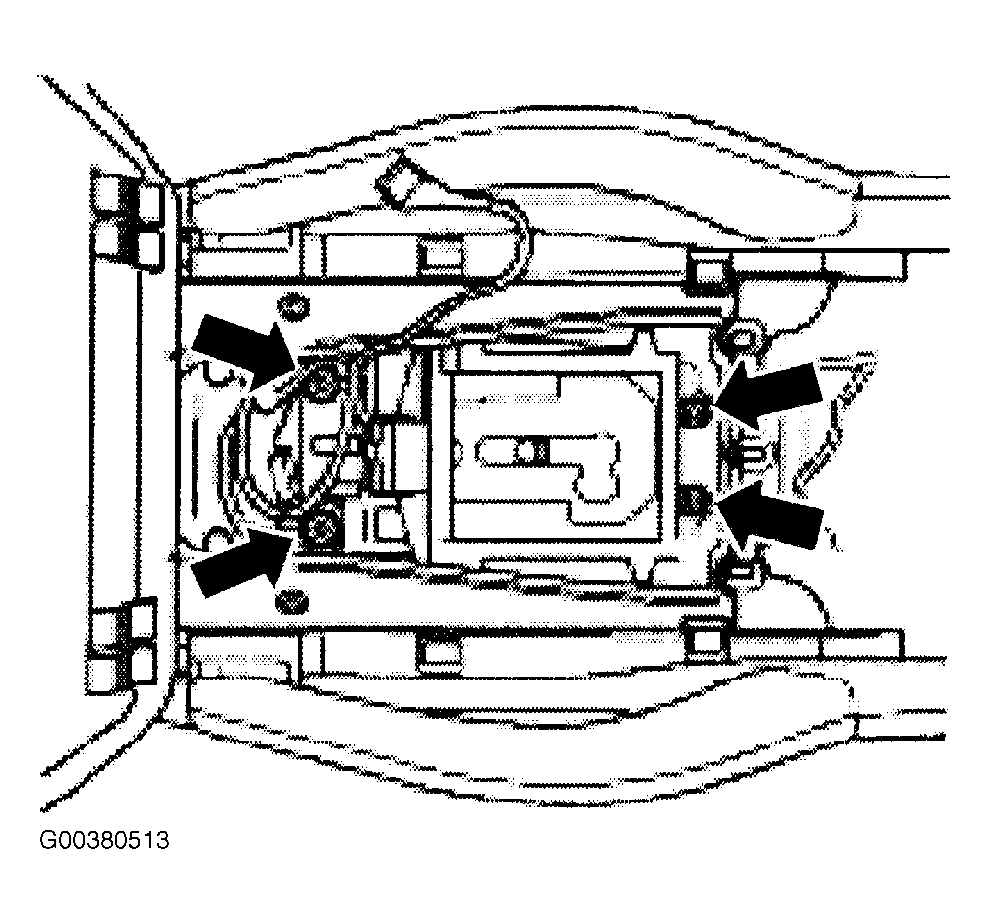

Fig 2: Removing Selector Frame
Courtesy of PORSCHE OF NORTH AMERICA, INC.

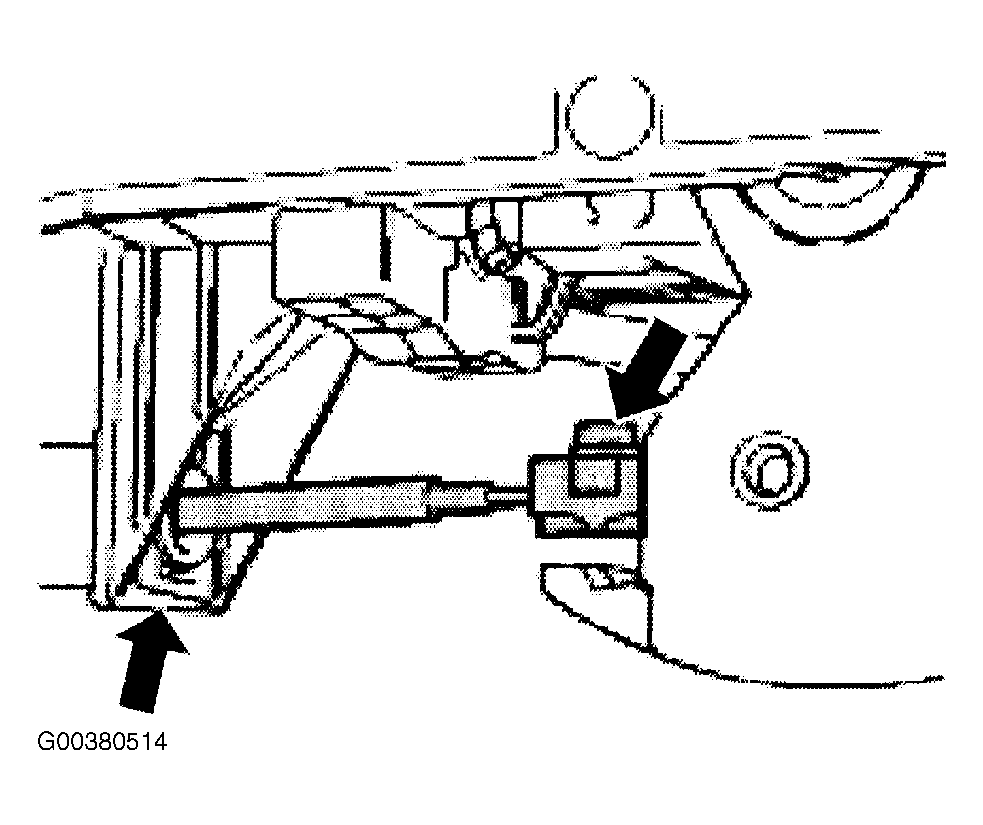

Fig 3: Removing Selector Lever Cable Connections
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Remove engine guard. See Figure . Move shift lever on transmission to position "P" (highest position).
Using special tool, with special inserts (model AB 170), and accessory for torque wrench, open ring wrench insert a/f 13 with adapter 98-1, screw in selector lever cable screw connections on selector support (right arrow). See Fig 3 . Tighten to 89 INCH lbs. (10 N.m).
Install selector frame. Tighten bolts to 53 INCH lbs. (6 N.m). Connect cable connection on underside (inset) of center console cover. See Fig 1 . Install center console cover screws.
Install selector lever knob. Check functions of selector lever cable. Ensure vehicle starts, and selector lever works in all positions. Install engine guard.
