Instructions For Disassembly And Assembly: Assembly

Press in the outer race for the small tapered roller bearing using special tool 3005.

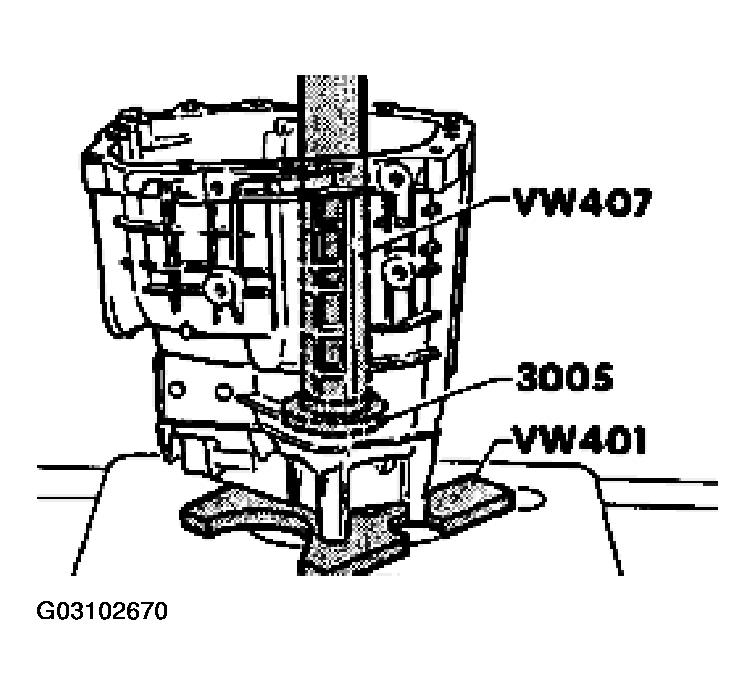

Fig 1: Pressing In Outer Race For Small Tapered Roller Bearing Using Special Tool
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Press in the needle roller bearing for the input shaft in the correct position with special tool VW 295 a. Measure the installation dimension from the cover upper edge to the bearing upper edge.
"a" = 216 mm

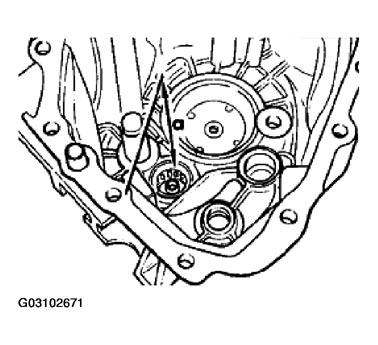

Fig 2: Pressing In Needle Roller Bearing For Input Shaft In Correct Position With Special Tool
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Drive in the sealing ring for the interior shift rod.

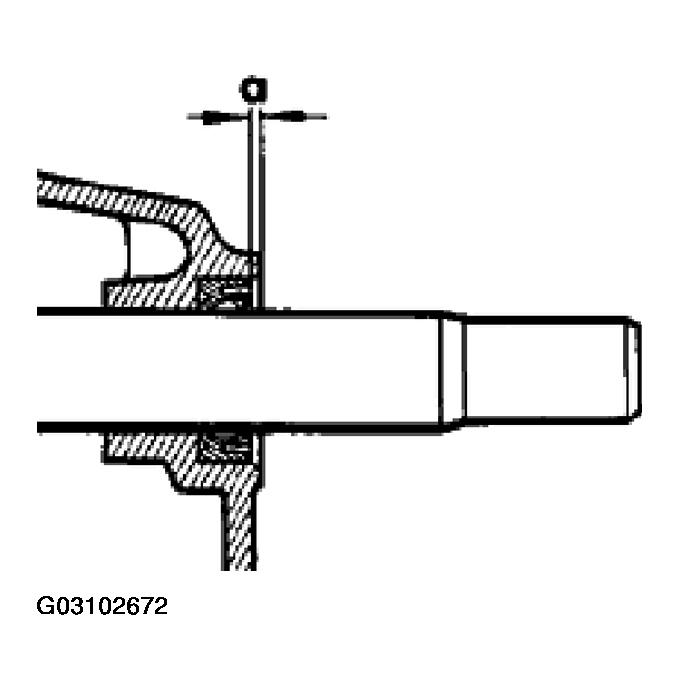

Fig 3: Driving In Sealing Ring For Interior Shift Rod
Courtesy of PORSCHE OF NORTH AMERICA, INC.

"a" = 1 mm
