DTC P1600: CAN timeout PSM-open circuit: Diagnosis/troubleshooting

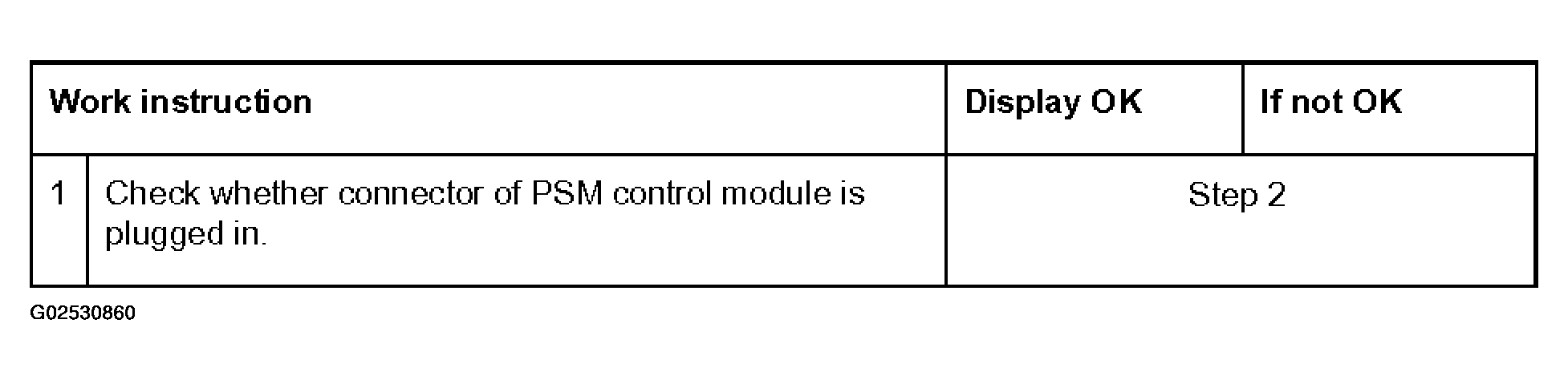

Fig 1: P1600 Work Instruction (Step 1)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

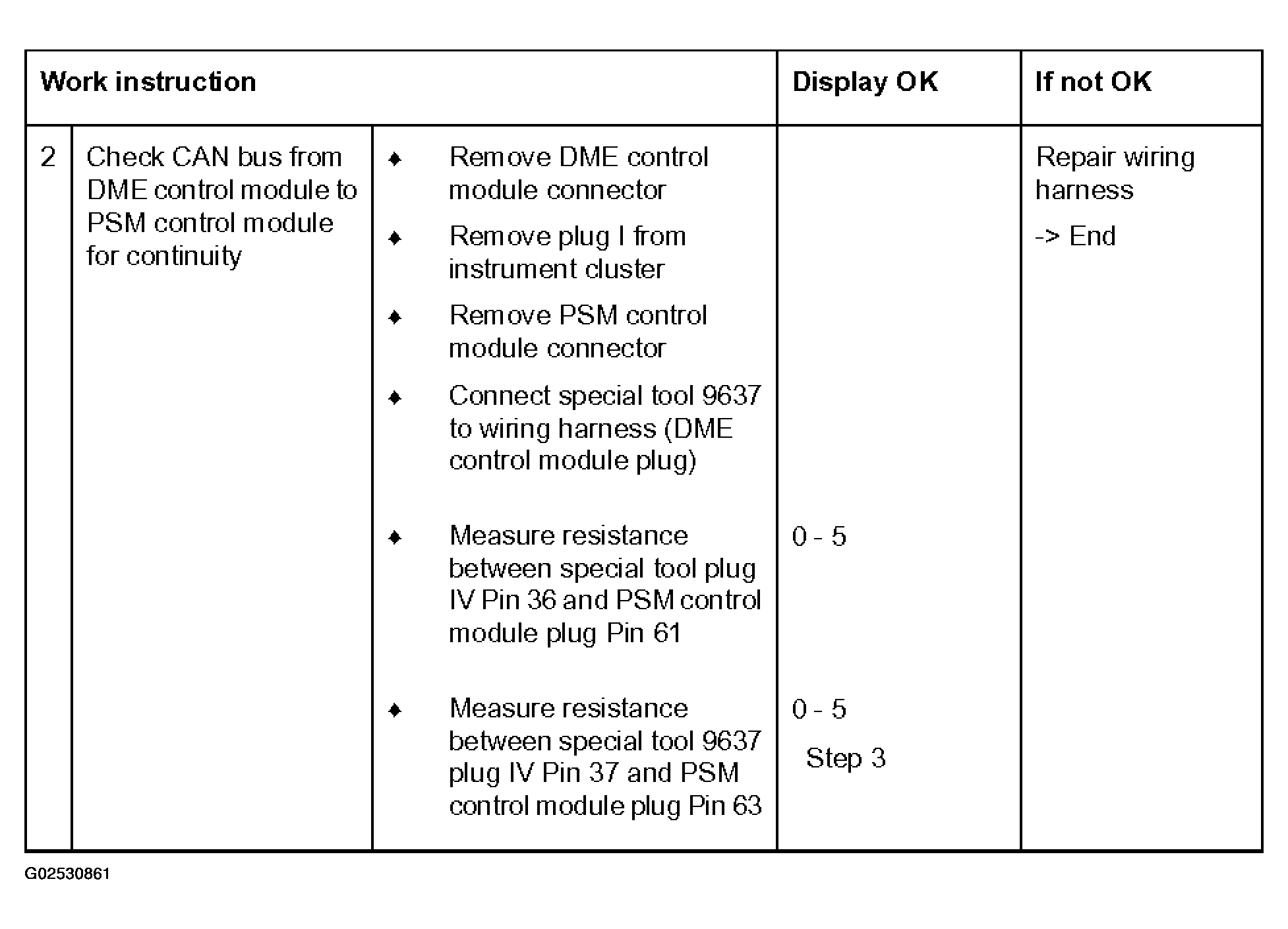

Fig 2: P1600 Work Instruction (Step 2)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE:

• The wires are routed via two connectors.

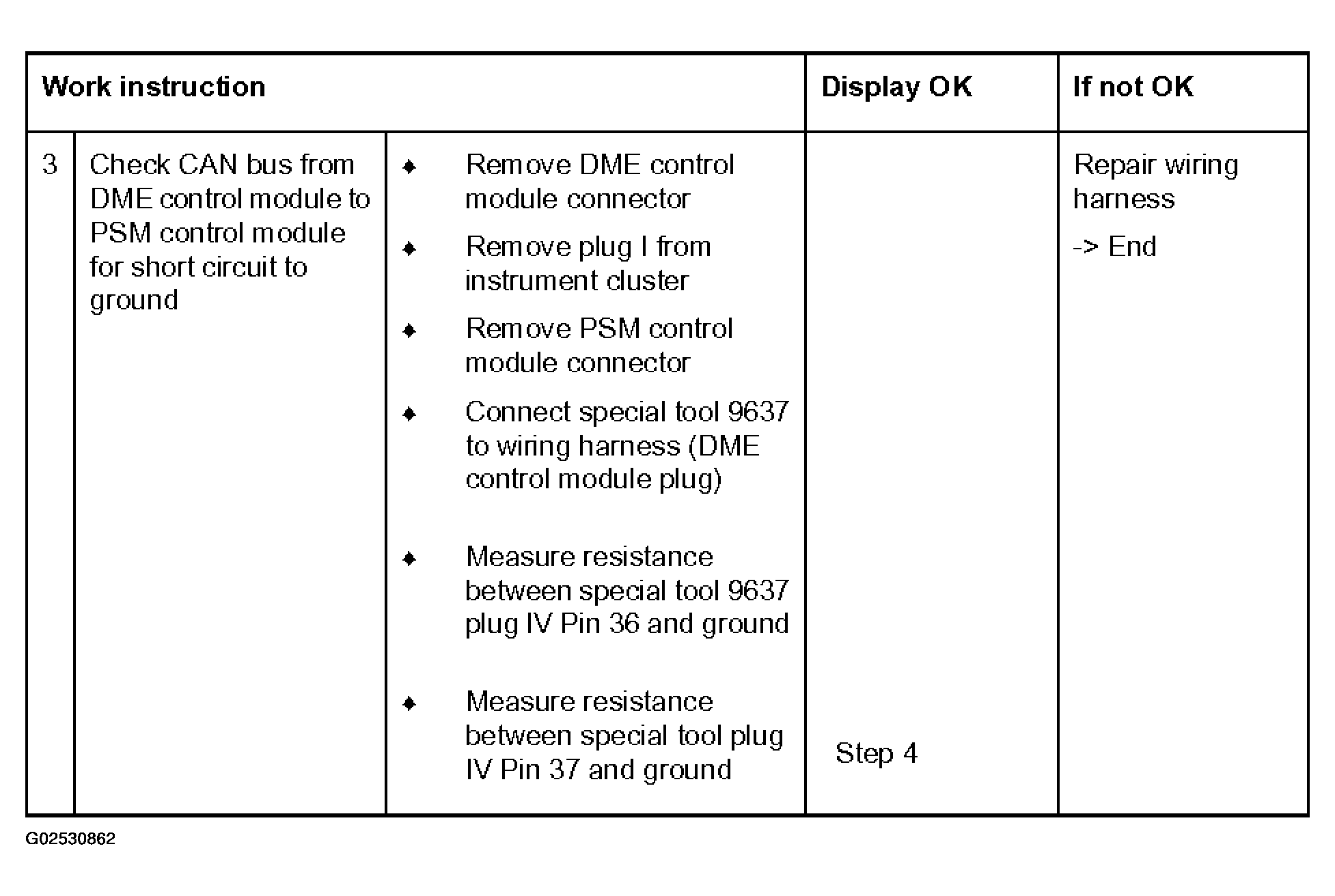

Fig 3: P1600 Work Instruction (Step 3)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE:

• The wires are also routed to the instrument cluster.

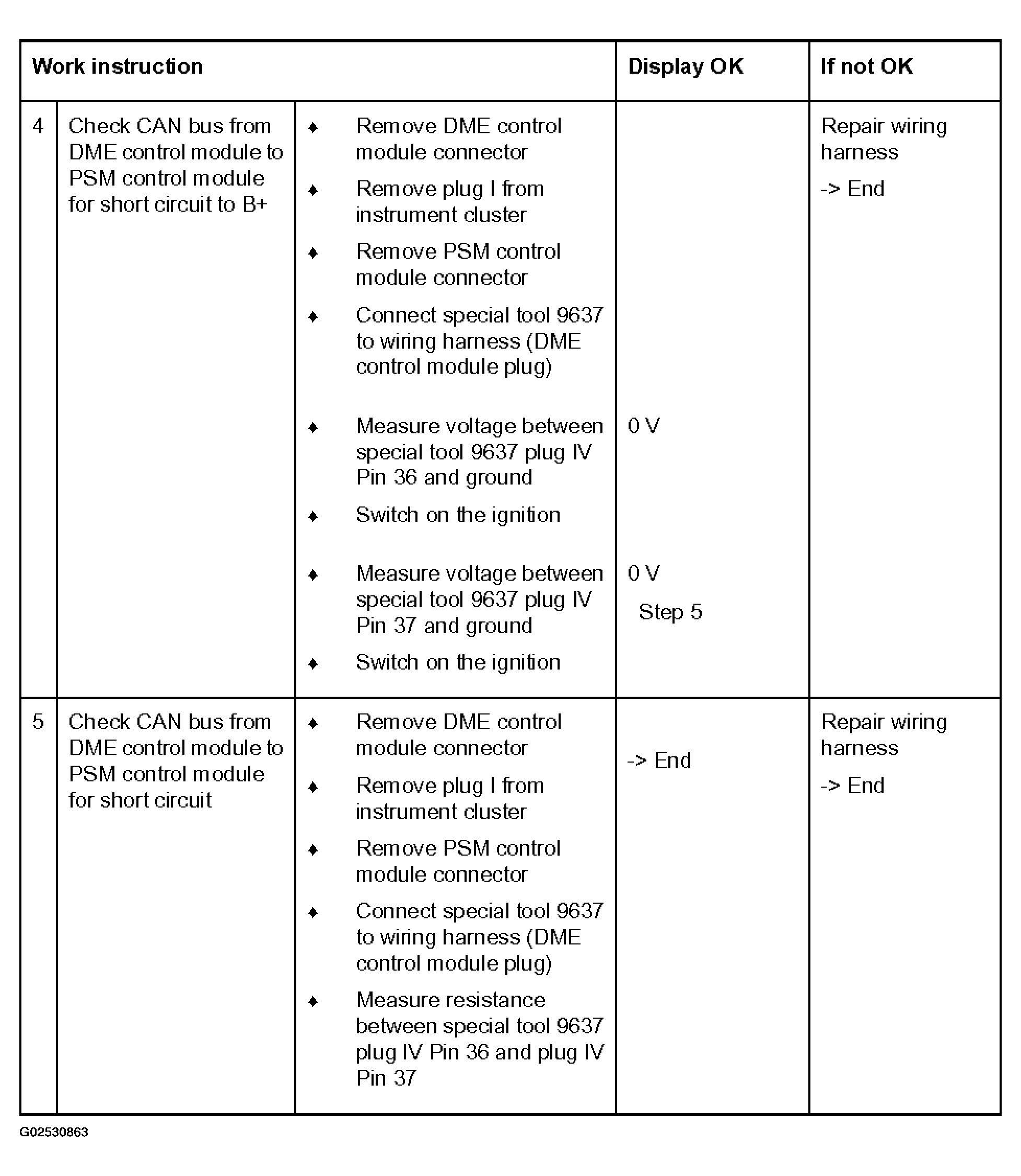

Fig 4: P1600 Work Instruction (Step 4 & 5)

Courtesy of PORSCHE OF NORTH AMERICA, INC.
