Home >> Porsche >> 2004 >> Boxster Base, Standard >> Repair and Diagnosis >> Engine Performance >> System >> DME 7.8 Diagnosis >> DTC P1455: A/C compressor control-open circuit >> Diagnosis/troubleshooting

DTC P1455: A/C compressor control-open circuit: Diagnosis/troubleshooting

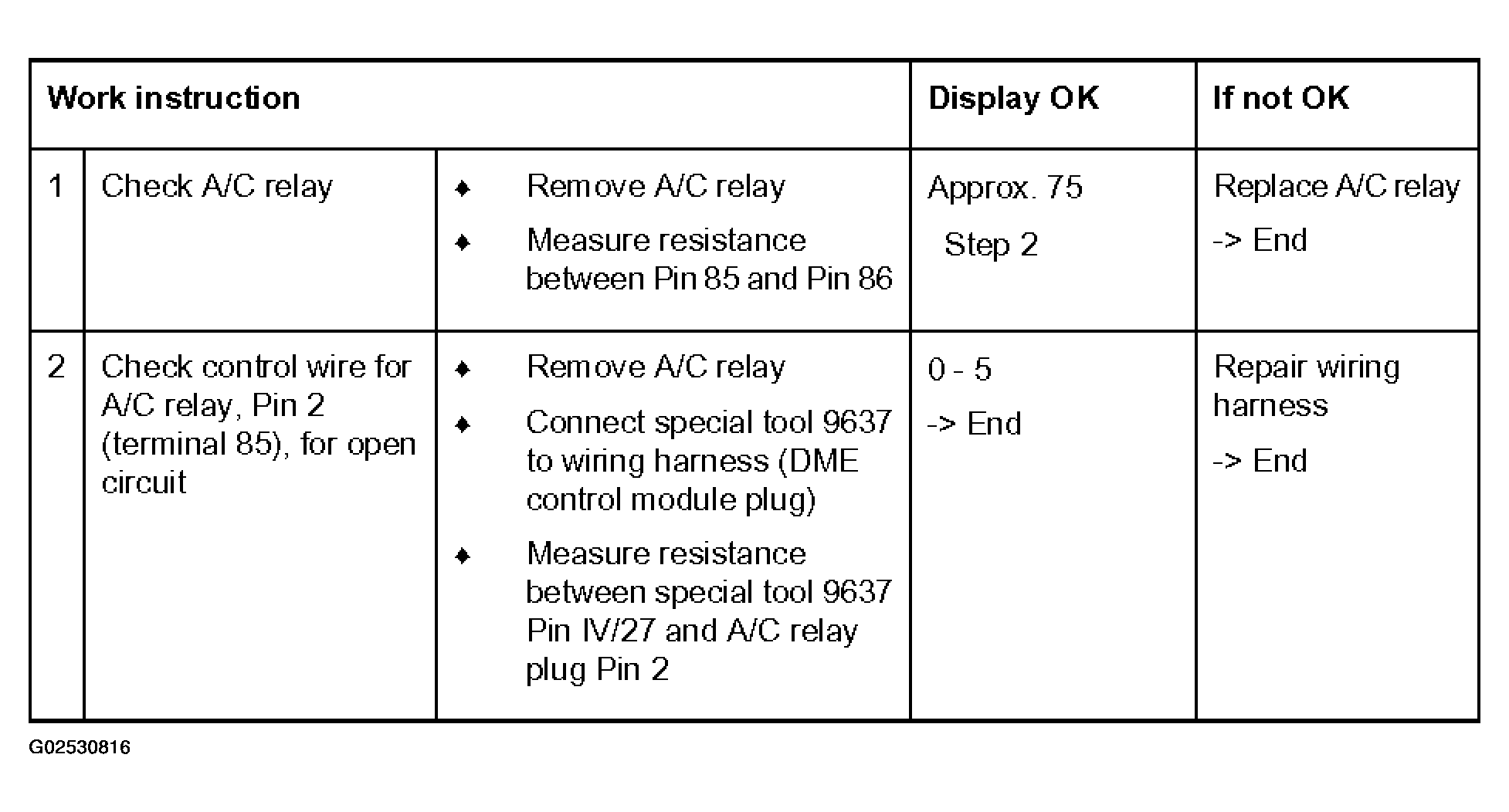

Fig 1: P1455 Work Instruction

G02530816

Courtesy of PORSCHE OF NORTH AMERICA, INC.
