Diagnosis/troubleshooting - all naturally-aspirated models

NOTE:
  • The DTC covers electrical open circuits here.

Diagnostic conditions

Possible cause of fault

Affected terminals

DME control module connector II, pin 10 and oxygen sensor jack, bank 2, pin 3

DME control module connector II, pin 16 and oxygen sensor jack, bank 2, pin 4

Diagnosis/troubleshooting

NOTE:
  • Do not use contact spray on the oxygen sensor plug connections as this may cause irreparable damage to the wiring (contamination of the oxygen sensor via the reference air channel).

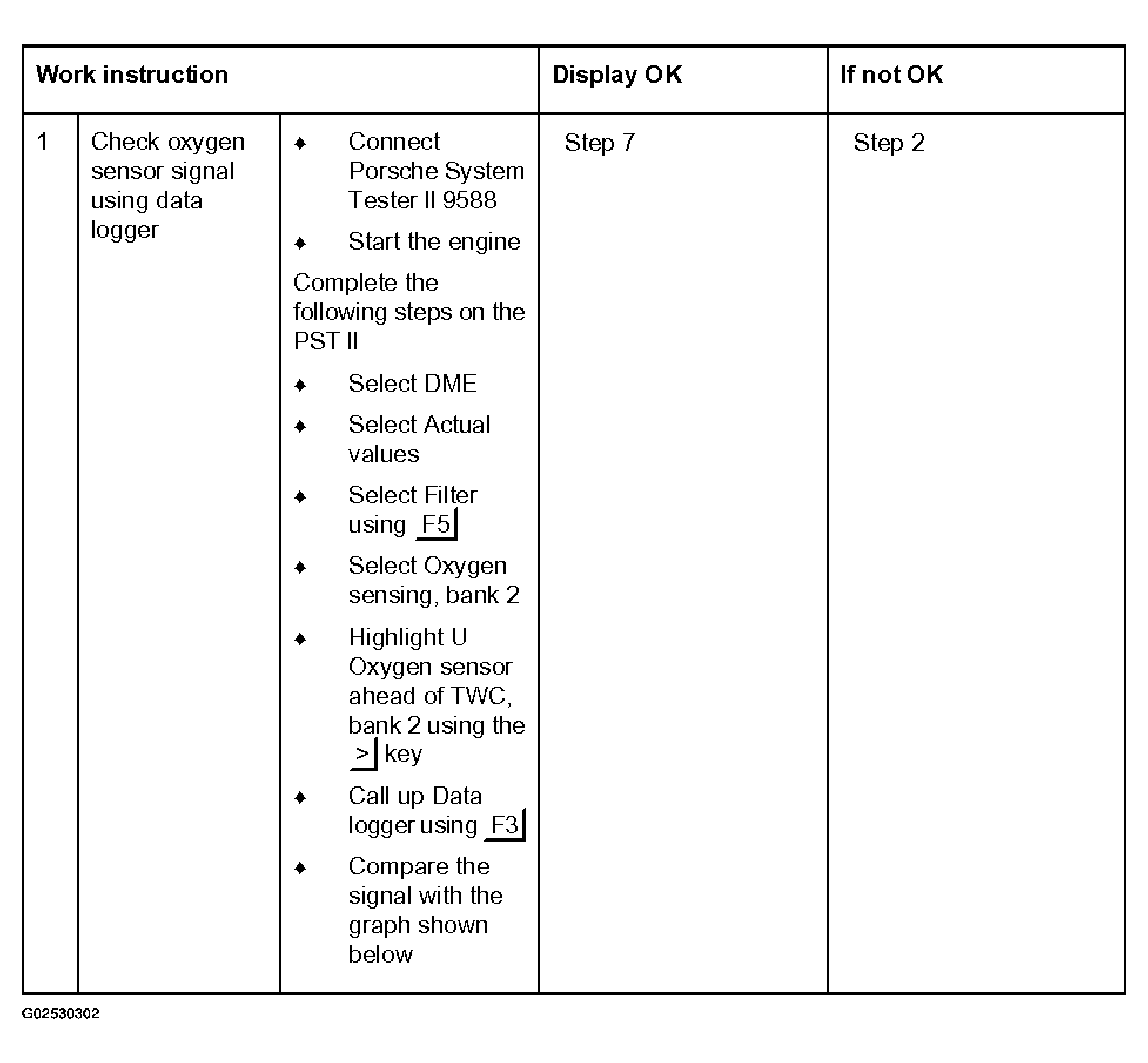

Fig 1: P0154 Work Instruction (All Naturally-Aspirated Models, Step 1)
G02530302Courtesy of PORSCHE OF NORTH AMERICA, INC.

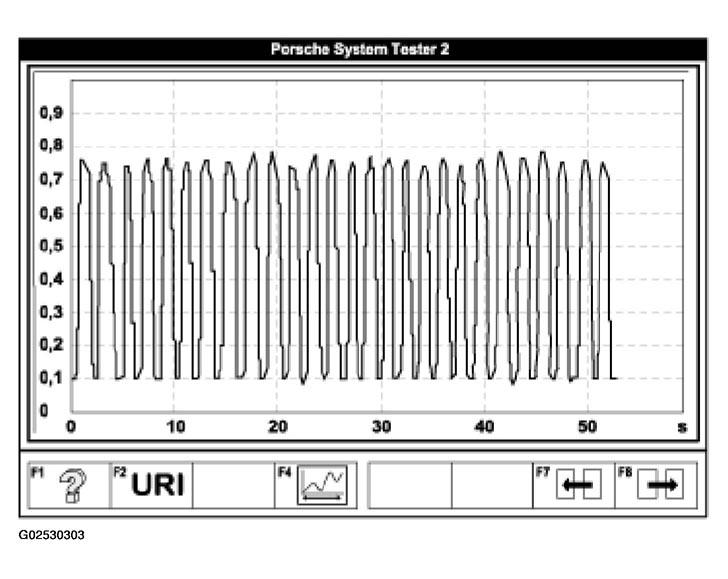

Fig 2: P0154 Oscilloscope Pattern
G02530303Courtesy of PORSCHE OF NORTH AMERICA, INC.

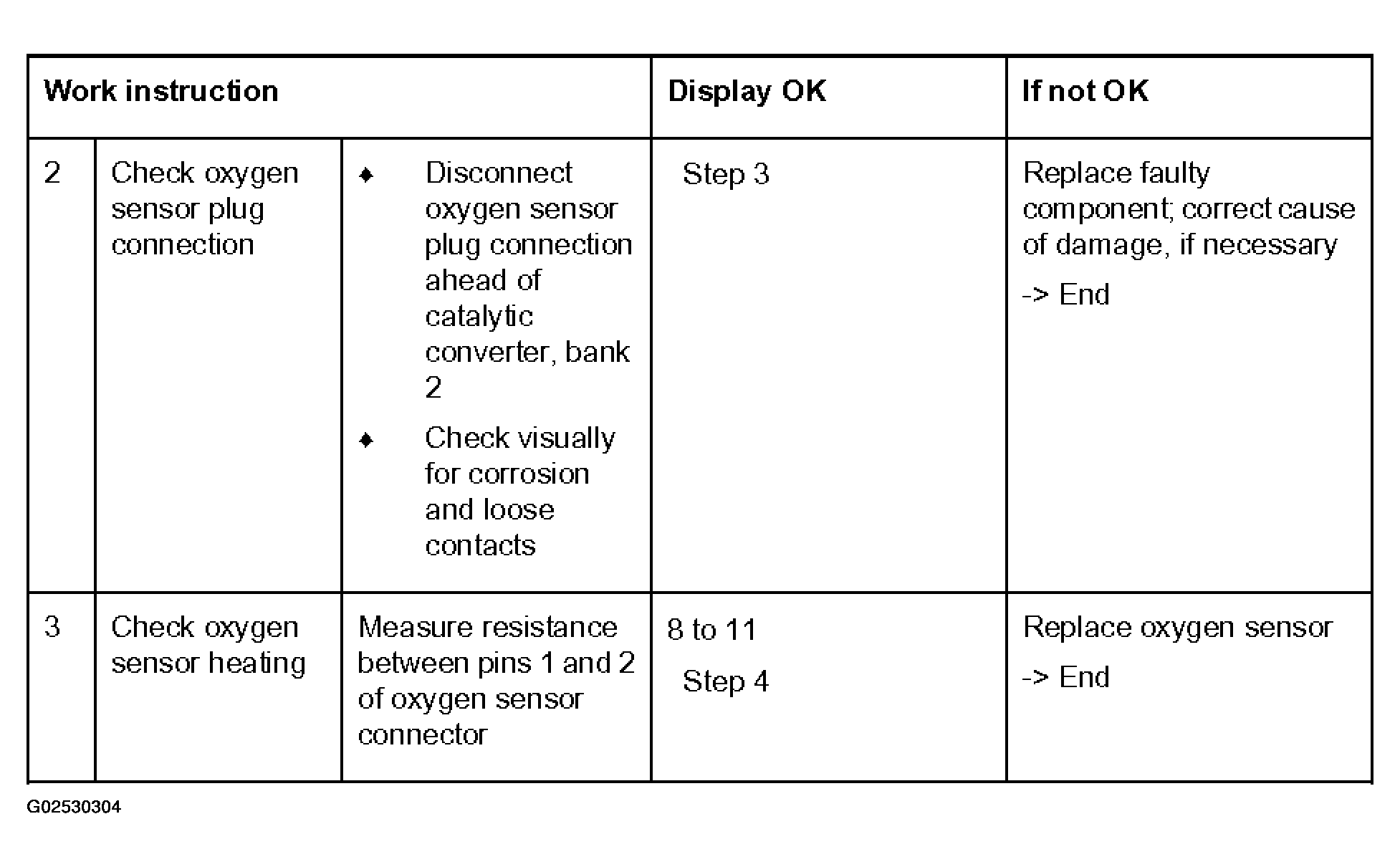

Fig 3: P0154 Work Instruction (All Naturally-Aspirated Models, Step 2 & 3)
G02530304Courtesy of PORSCHE OF NORTH AMERICA, INC.

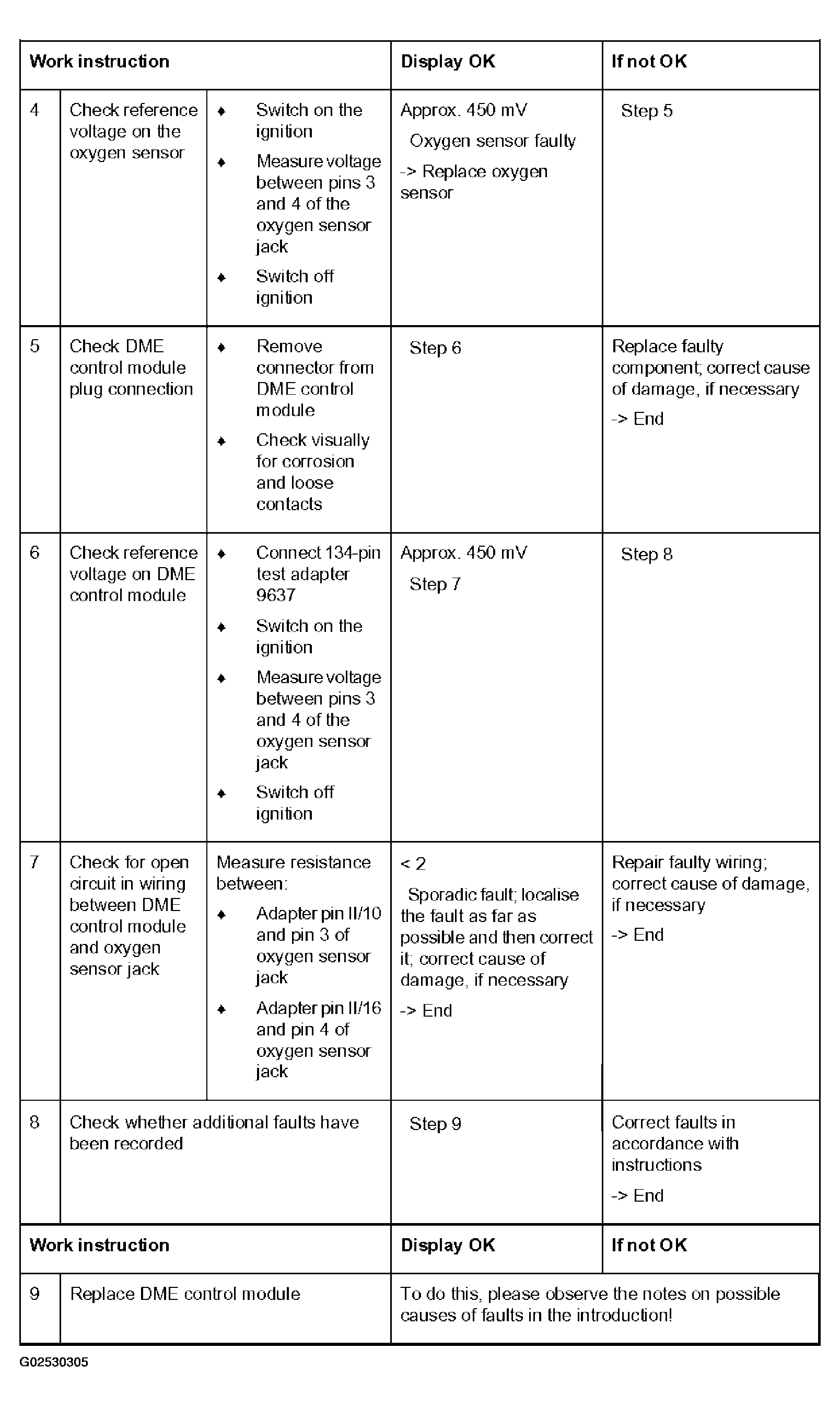

Fig 4: P0154 Work Instruction (All Naturally-Aspirated Models, Step 4 Through 9)
G02530305Courtesy of PORSCHE OF NORTH AMERICA, INC.
