Component arrangement - alarm system

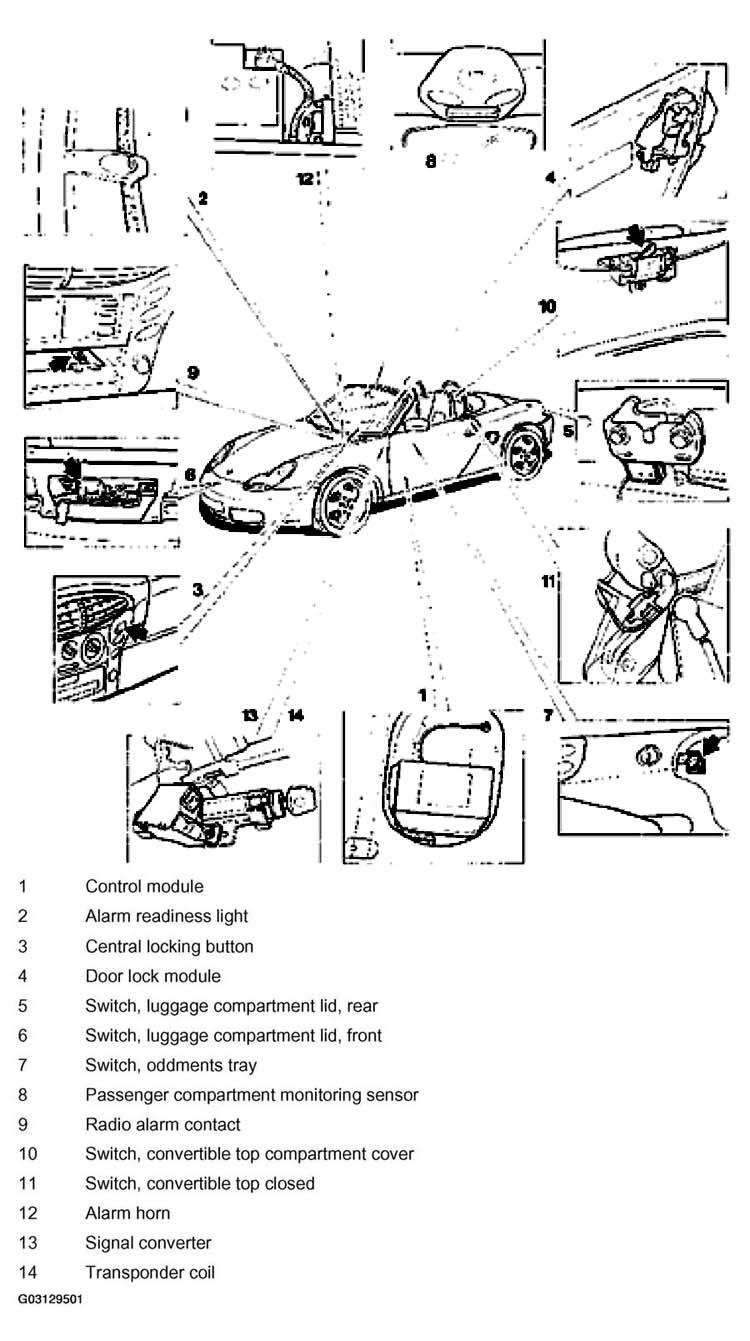

Fig 1: Identifying Alarm System Components And Locations

G03129501

Courtesy of PORSCHE OF NORTH AMERICA, INC.
