Removing And Installing Trims Units
REMOVING AND INSTALLING PROCEDURE FOR TRIMS UNITS

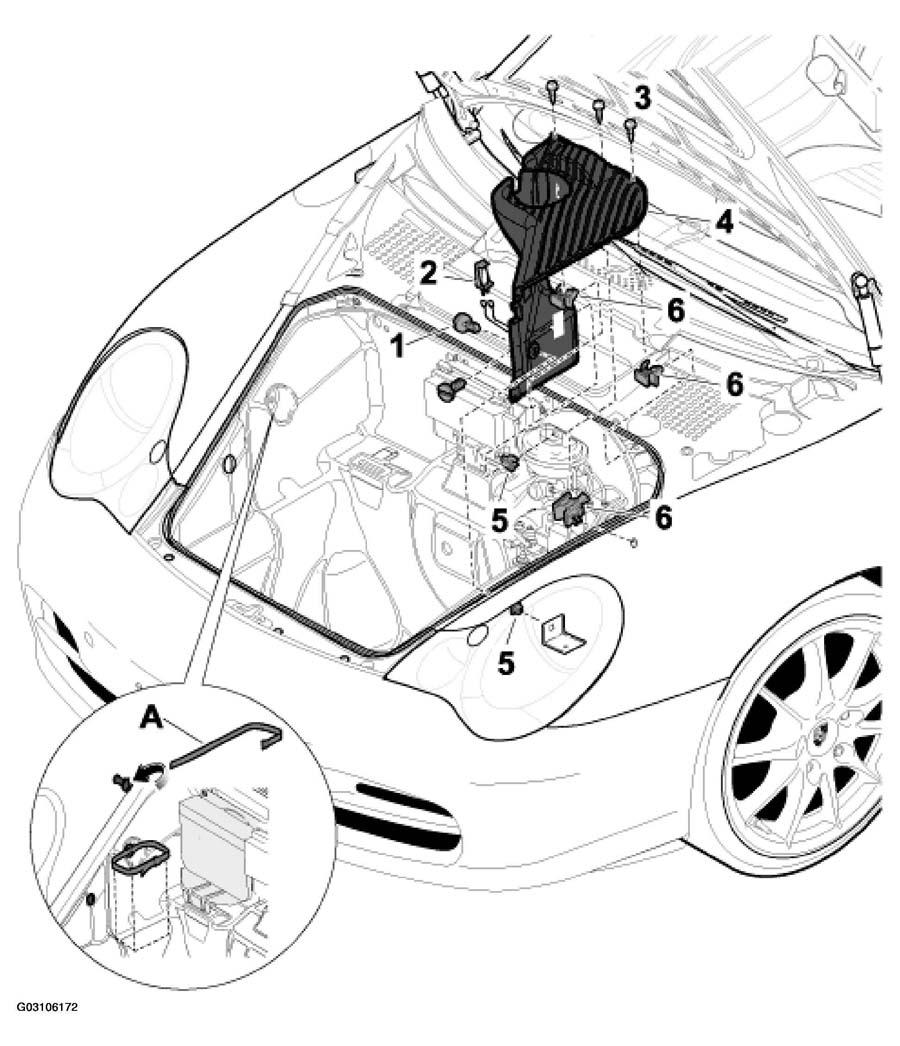

| No. | Designation | Qty. | Removal | Installation | ||
|---|---|---|---|---|---|---|
| 1(1) | Cam | 2 | Turn 90° and remove. | Position and turn 90°. | ||
| 2(1) | Interior light | 1 | Press out. | Press in. | ||
| 3(1) | Fastening screws | 3 | Unscrew. | Screw in. | ||
| 4(1) | Trim units | 1 | Unscrew fastening screws -3- (1) | Screw in fastening screws -3- (1) | ||
| 5(1) | Holder | 2 | ||||
| 6(1) | Holder | 2 | ||||
| A(1) | Restraining strap | 1 | Fasten the emergency kit with the restraining strap -A- (1) | |||
|
||||||
