Installing The Regulator For Wipe Interval

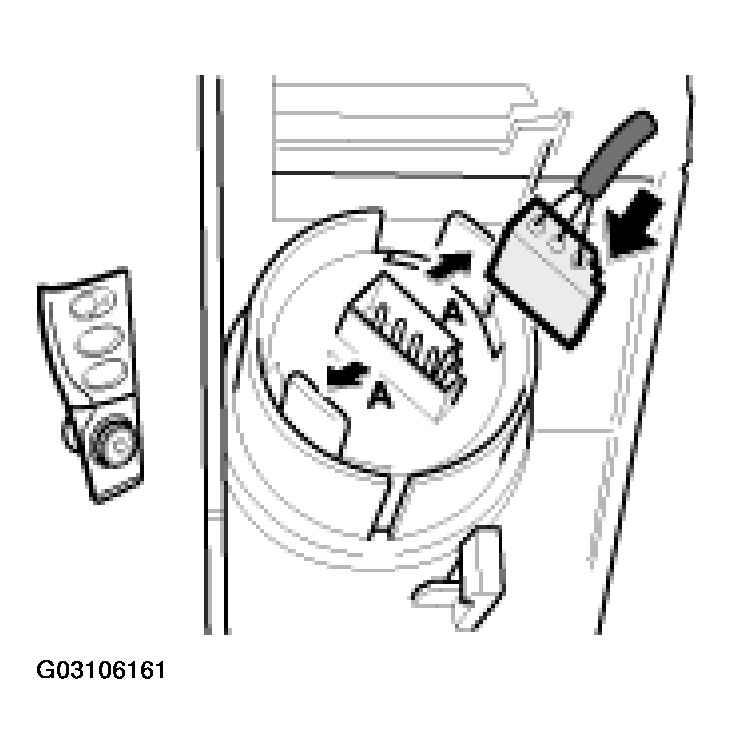

Fig 1: Installing Regulator For Wipe Interval
G03106161Courtesy of PORSCHE OF NORTH AMERICA, INC.
  1. Insert the regulator for the wipe interval into the front cover from the front. Ensure that the locking tabs -A-  have engaged. See Fig 1 .
  2. Plug in the electrical plug connection.
