Installing Fusible Element In The Current Distributor

Hexagon nut M 8, 1 piece

Repair kit - replacement fusible element

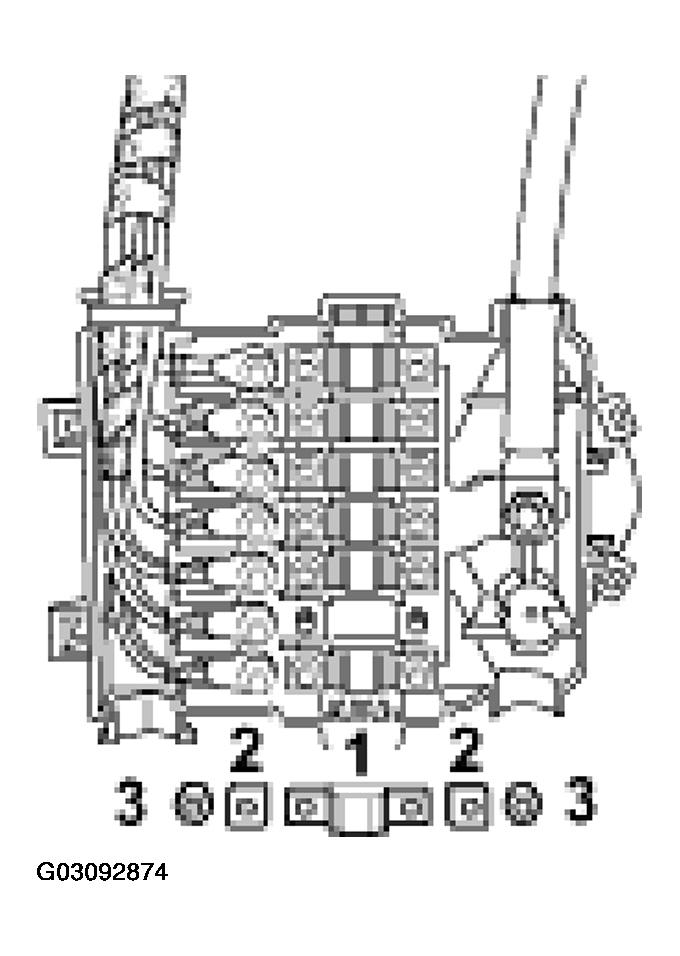

1. Insert new fusible element -1-, using new washers -2-  and new hexagon nuts -3-  M 5. Tightening torque: 4 Nm (3 ft.lb). See Fig 1 .
   Fig 1: Inserting Fusible Element

   Courtesy of PORSCHE OF NORTH AMERICA, INC.
2. Position and engage the blue after-sales service cover -A-  . See Fig 1 .
   Fig 2: Installing After-Sales Service Cover

   Courtesy of PORSCHE OF NORTH AMERICA, INC.
3. Close the current distributor cover until it engages -arrow-  . See Fig 2 .
4. Affix the blue service label.
5. See INSTALLING THE CURRENT DISTRIBUTOR  .
