Crankshaft Position Sensor, Signal Implausible: Diagnosis/Troubleshooting

Fig 1: P0336 Work Instruction (Signal Implausible, Step 1)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

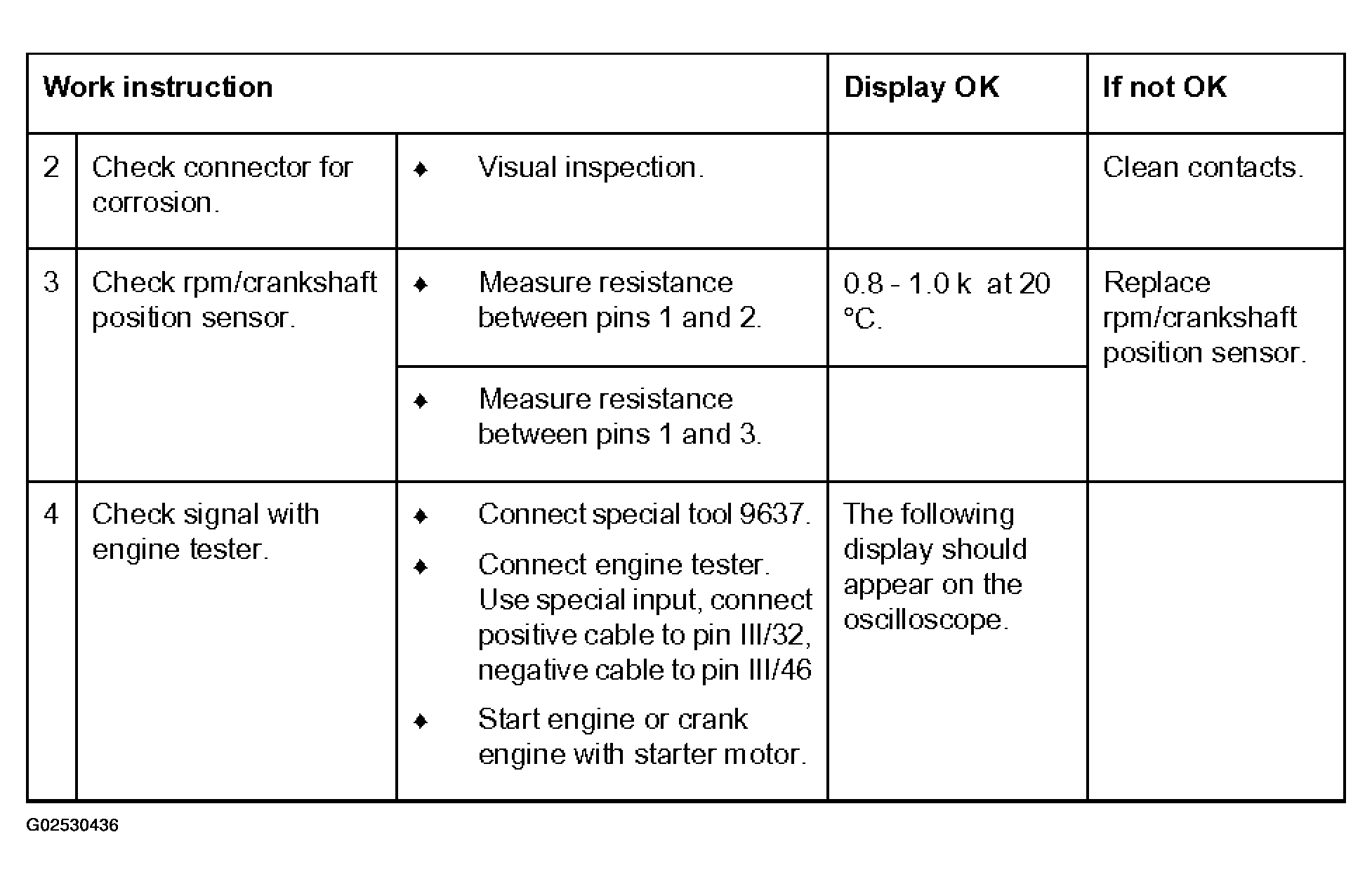

Fig 2: P0336 Work Instruction (Signal Implausible, Step 2 Through 4)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

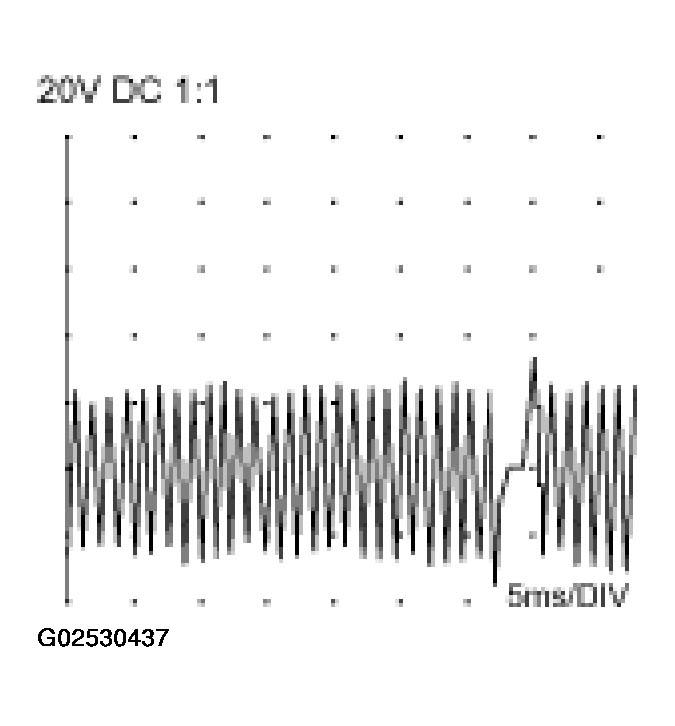

Fig 3: Engine Speed Sensor Oscilloscope Pattern

Courtesy of PORSCHE OF NORTH AMERICA, INC.
