Electrical Component Locator: Miscellaneous

MISCELLANEOUS LOCATION

Component Location

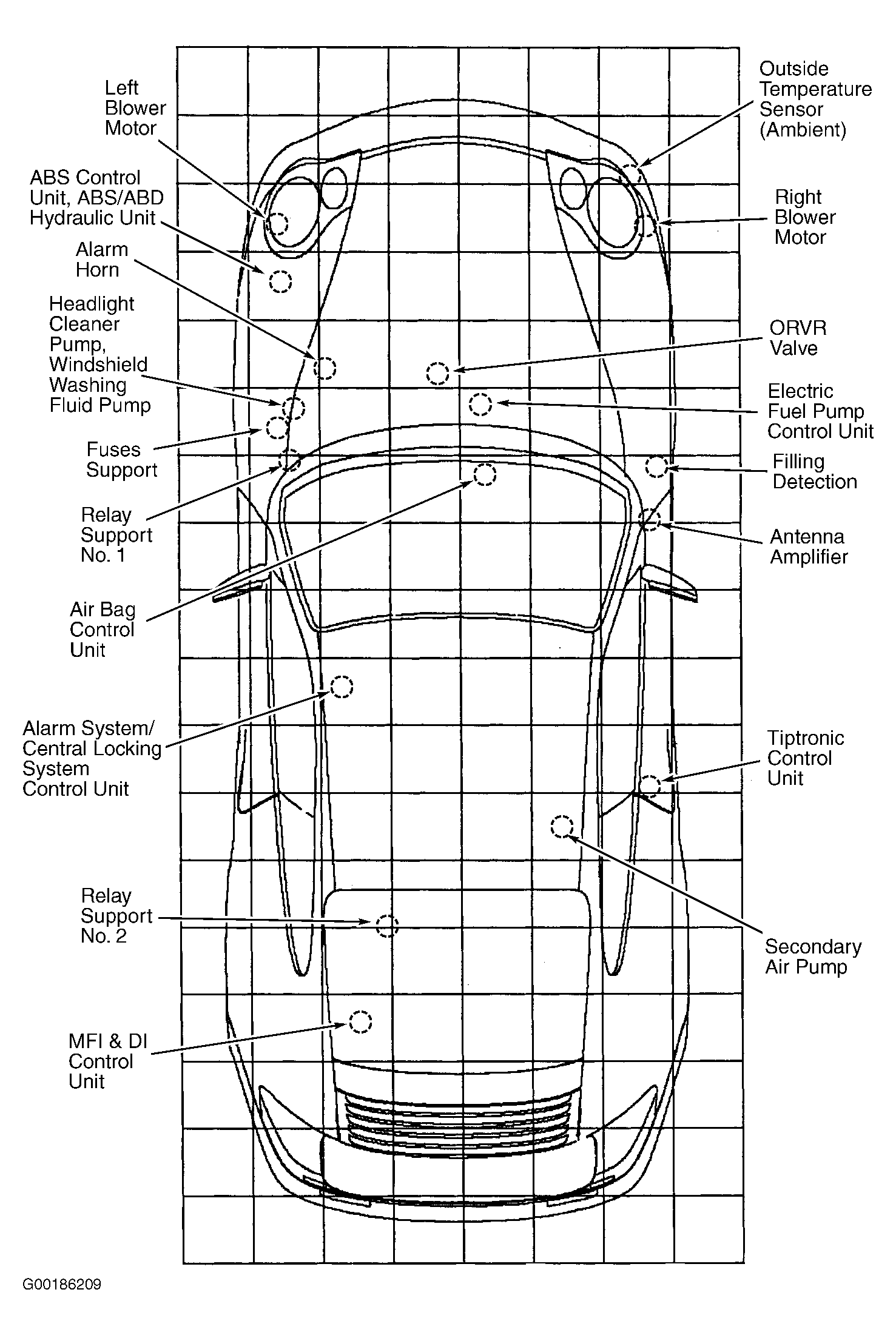

Alarm Horn In luggage compartment, left of battery. See Figure .
Antenna Amplifier At right "A" pillar. See Figure .
Diagnosis Connector Below left side of dash.
Two-Tone Horns Behind right side of front bumper.
