DTC P1552: Control Module Fault Group a Function Monitor - Signal Implausible: Diagnosis/troubleshooting

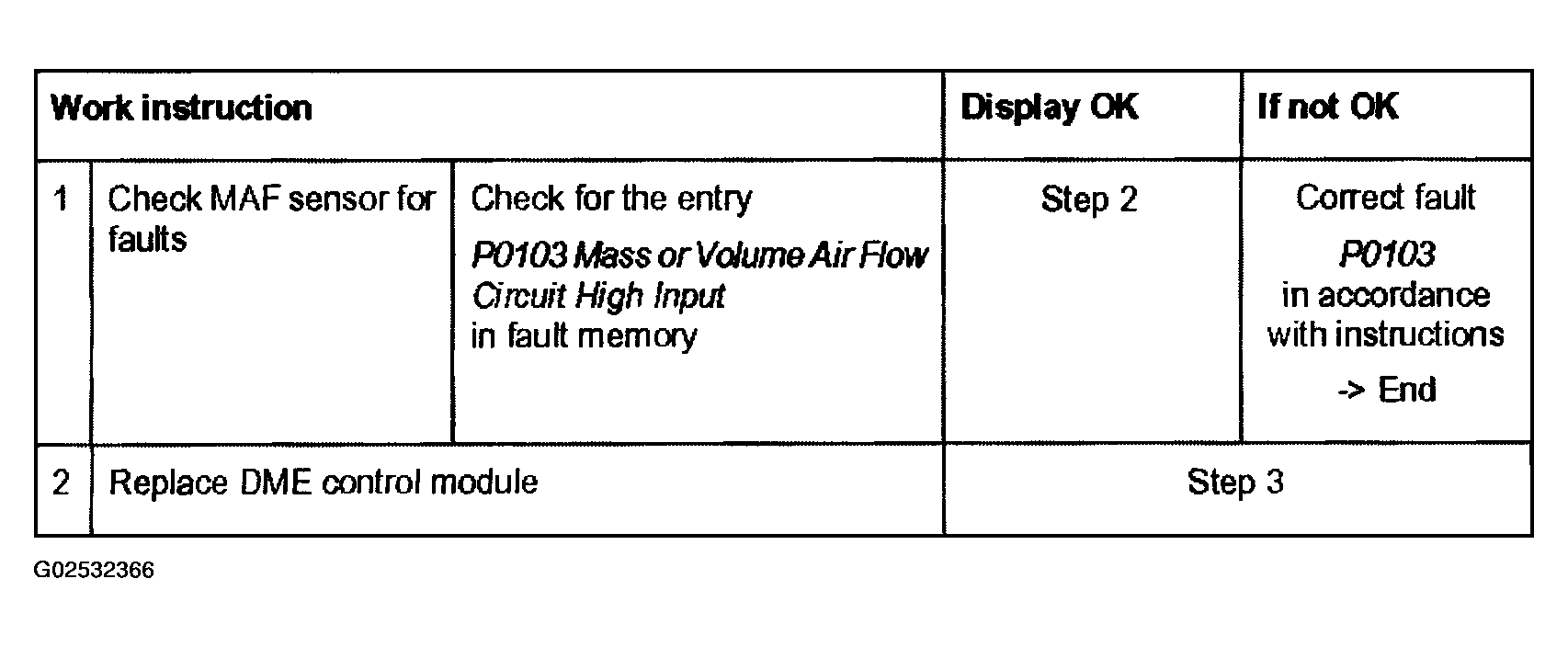

Fig 1: P1552 Work Instruction Steps 1 & 2

Courtesy of PORSCHE OF NORTH AMERICA, INC.

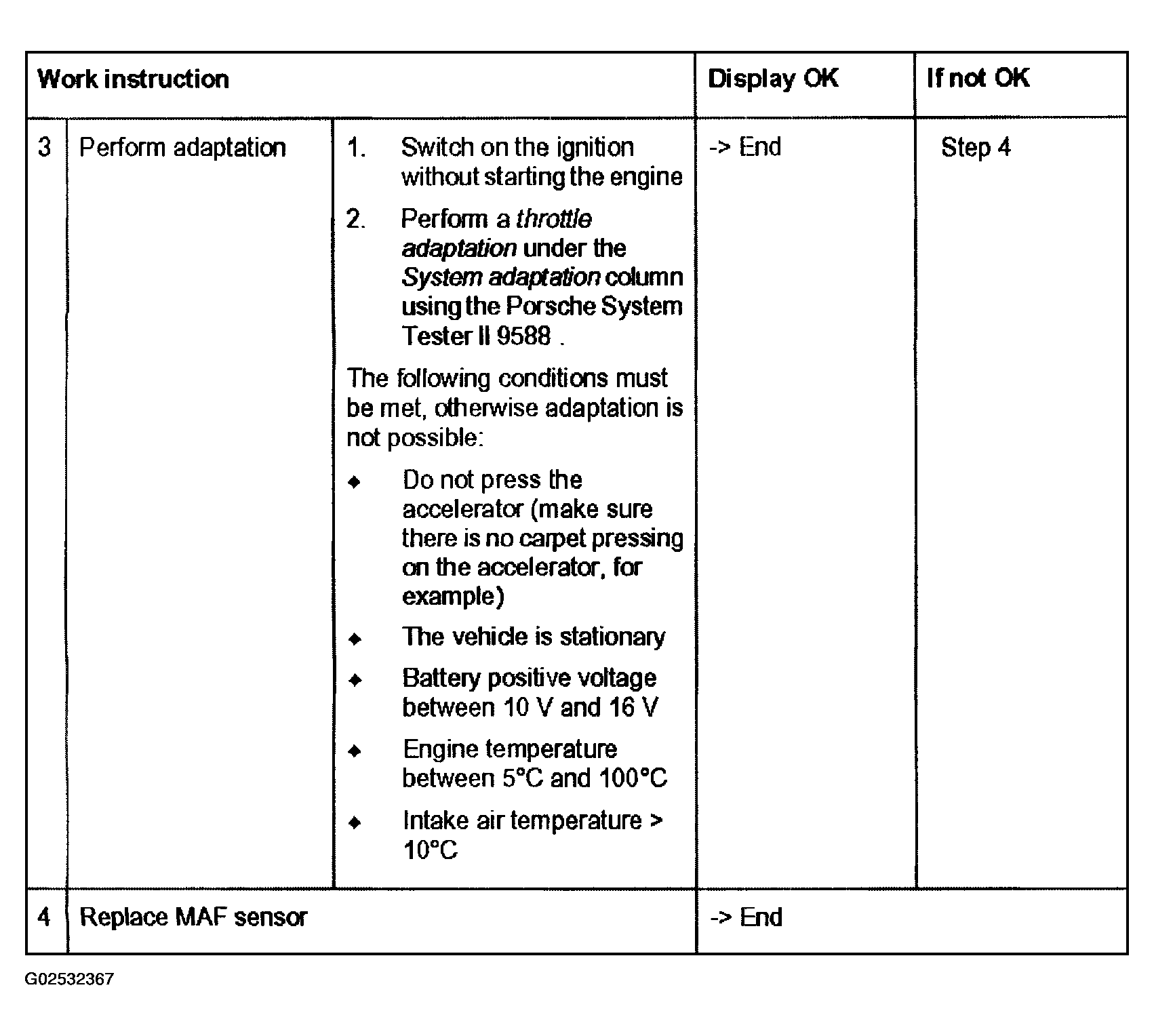

Fig 2: P1552 Work Instruction Steps 3 & 4

Courtesy of PORSCHE OF NORTH AMERICA, INC.
