Disassembling the rearview mirror
DISASSEMBLING REARVIEW MIRROR INSTRUCTIONS (STEPS 1-4)

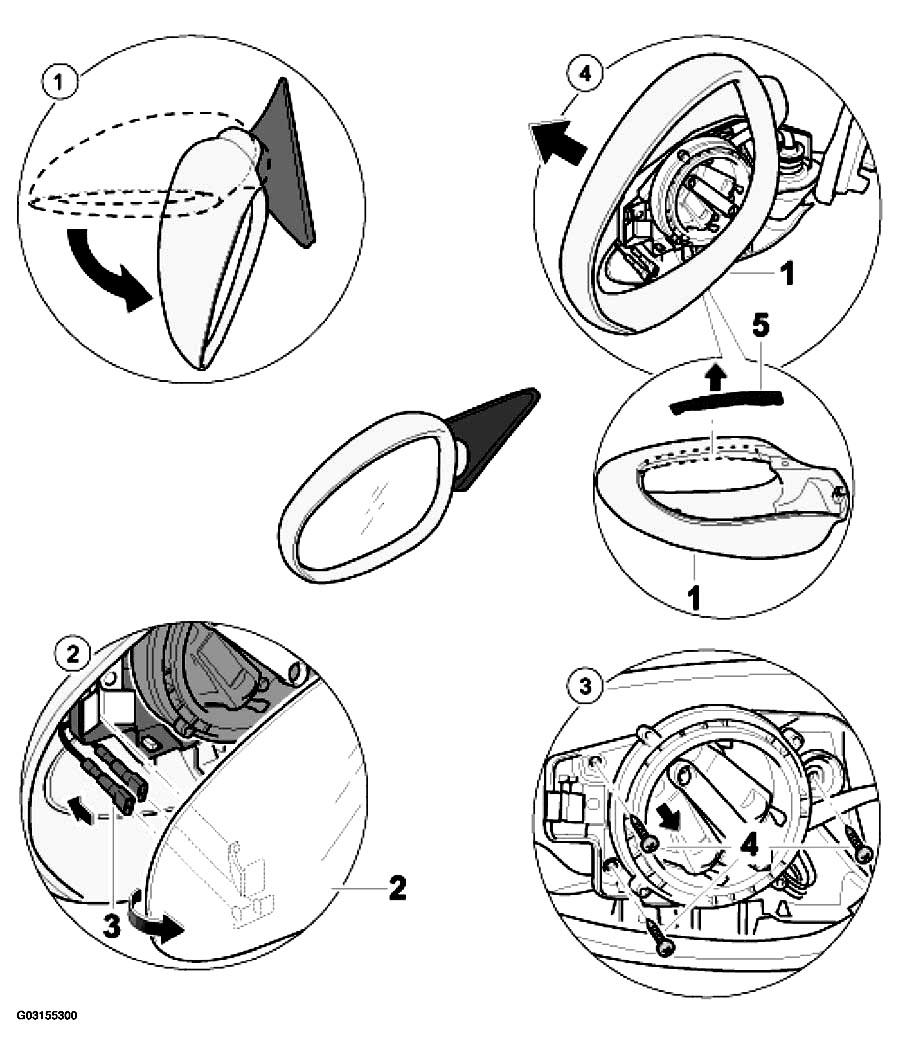

| No. | Procedure | Instructions |
|---|---|---|
| Removing rearview mirror | See REMOVING THE REARVIEW MIRROR | |
| 1 | Folding in the rearview mirror | Fold in the rearview mirror in -direction of arrow- . See Fig 1 . |
| 2 | Removing rearview mirror glass | Carefully pull the rearview mirror glass -2-3- . See Fig 1 . |
| 3 | Detaching rearview mirror housing | Unscrew fastening screws -4-1- . See Fig 1 . |
| 4 | Removing rearview mirror housing | Remove rearview mirror housing -1-direction of arrow- . See Fig 1 . |

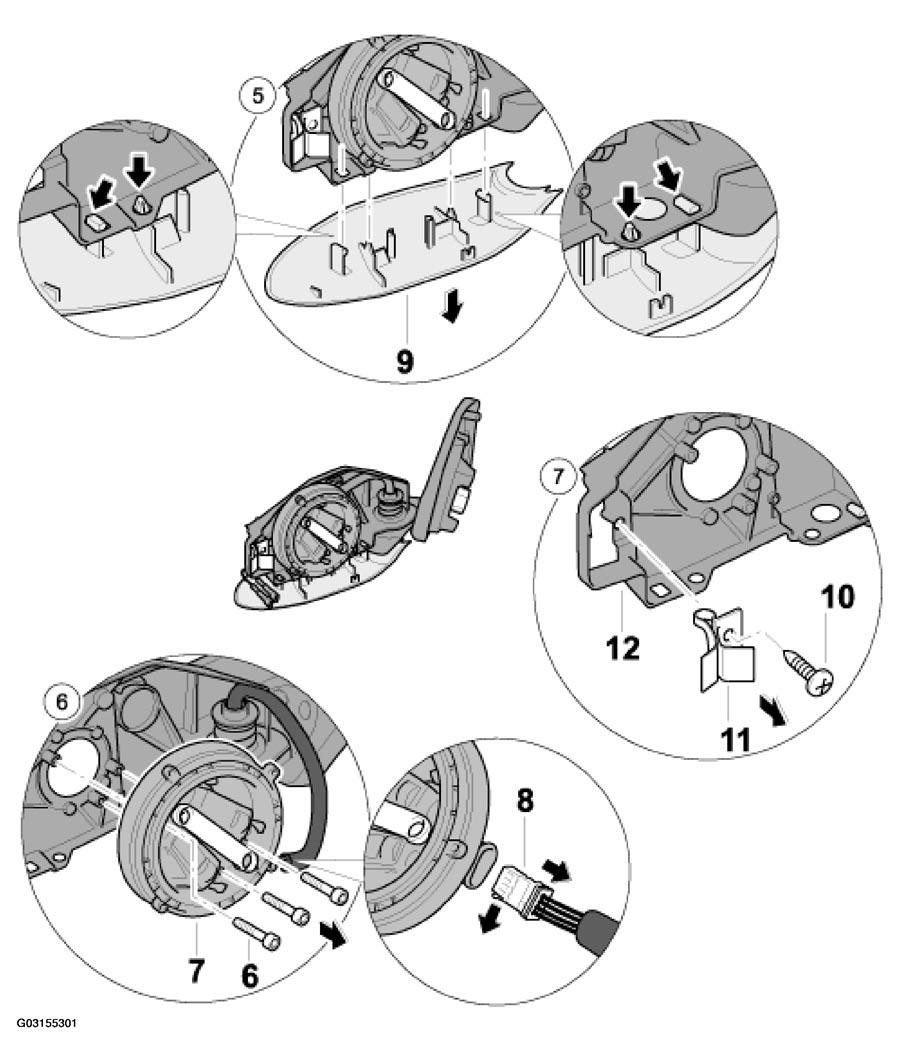

DISASSEMBLING REARVIEW MIRROR INSTRUCTIONS (STEPS 5-7)
| No. | Procedure | Instructions |
|---|---|---|
| 5 | Removing cover | Press lugs -arrows-9- . See Fig 2 . |
| 6 | Removing positioning motor | Unscrew fastening screw -6-7-8- . See Fig 2 . |
| 7 | Removing metal clip | Unscrew fastening screw -10-11-12- . See Fig 2 . |
