Installing Rain Sensor

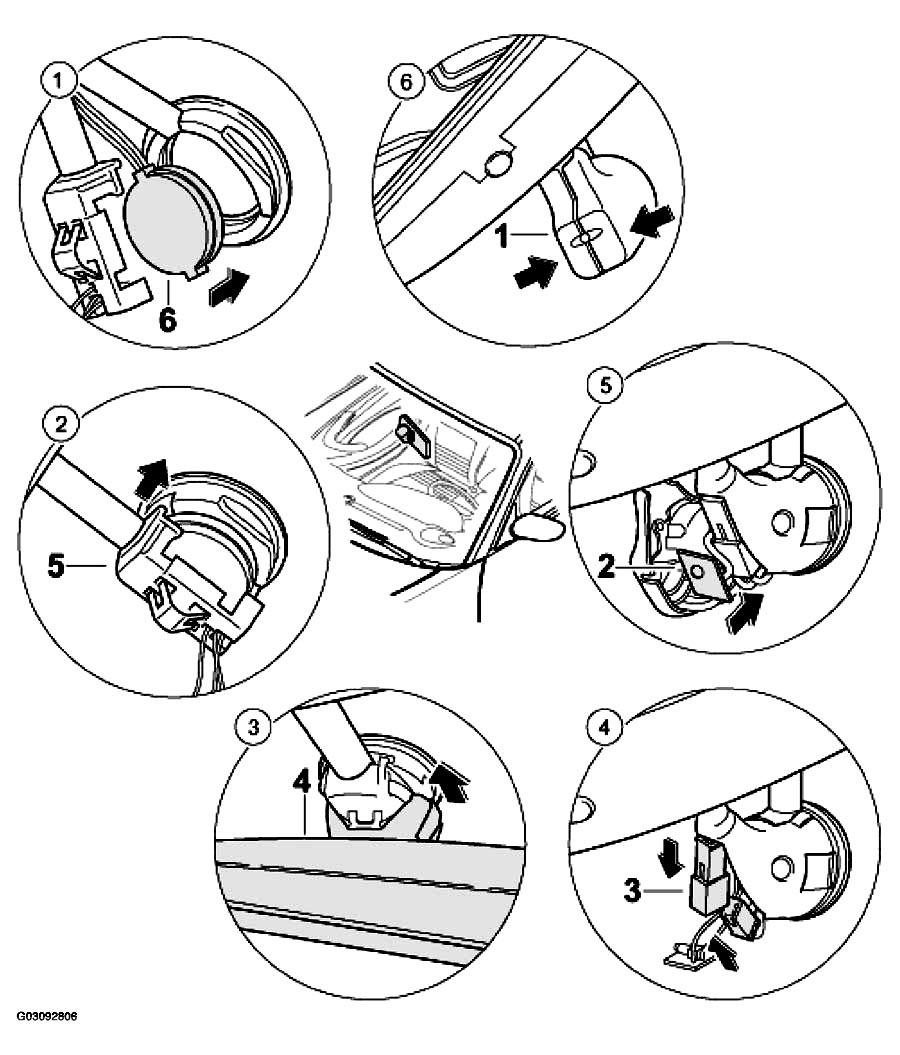

Fig 1: Identifying Rain Sensor Installation Sequence
G03092806Courtesy of PORSCHE OF NORTH AMERICA, INC.
NOTE: Observe notes under REMOVING RAIN SENSOR  .
  • If the removed rain sensor is reinstalled, the surfaces must be free of adhesive residues. Do not use harsh cleaning agents. Stick the adhesive pad onto the rain sensor at a temperature of approx. 20°C.
RAIN SENSOR INSTALLATION SEQUENCE

No. Procedure Instructions
1 Sticking on rain sensor Push the rain sensor -6- (1)
2 Clipping in holder Push and press holder -5- (1)
3 Pushing on rearview mirror Push rearview mirror -4- (1)
4 Pushing on plug Join the plug connection -3- (1)
5 Inserting orientation light Insert orientation light -2- (1)
6 Attaching cover of mirror base Join both covers -1- (1)
(1) For explanation see Fig 1

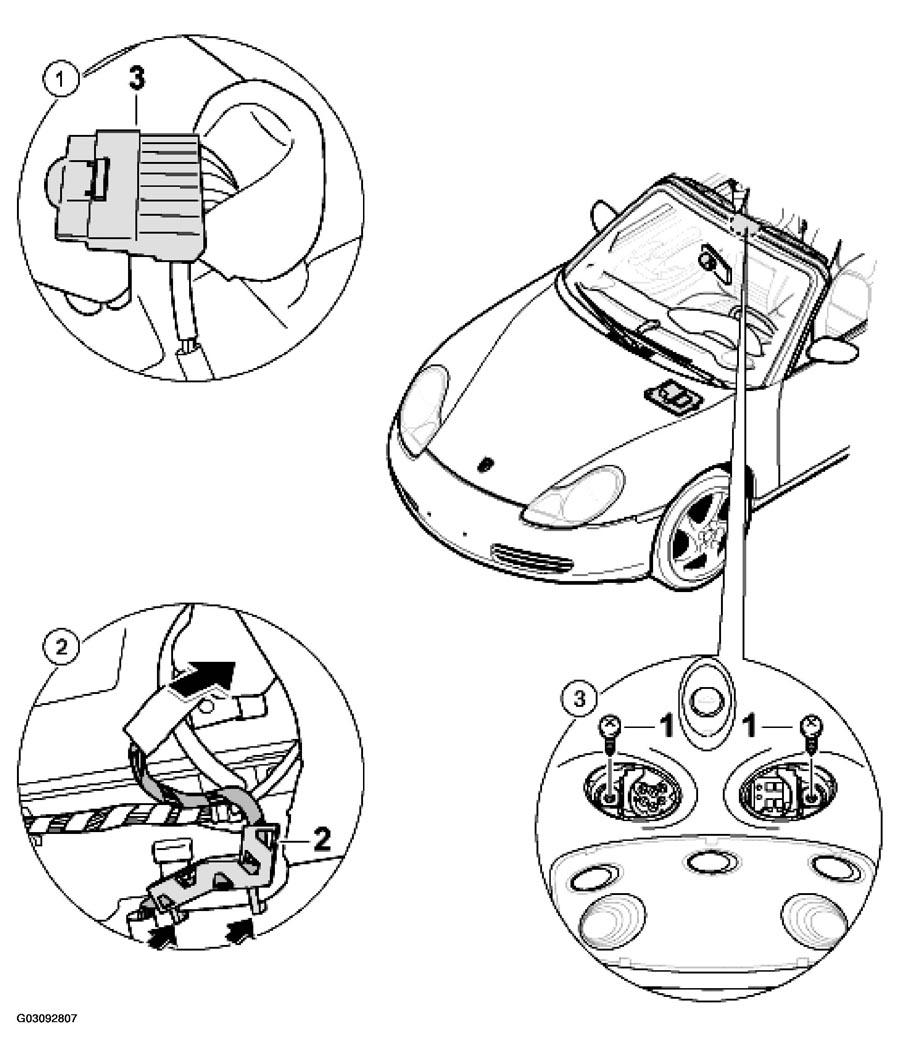

Fig 2: Identifying Infra-Red Interior Sensor Installation Sequence
G03092807Courtesy of PORSCHE OF NORTH AMERICA, INC.
RAIN SENSOR INSTALLATION SEQUENCE

No. Procedure Instructions
1 Connecting the plug connection Press the plug connection -3- (1)
2 Line routing Engage holder -2- (1)
3 Mounting cover of infra-red interior sensor Tighten fastening screws -1- (1)
(1) For explanation see Fig 2 .
