Installing Optical Contacts On Connector Side

  1. Insert the optical contact -B- in the connector until it engages audibly. See Fig 1 .

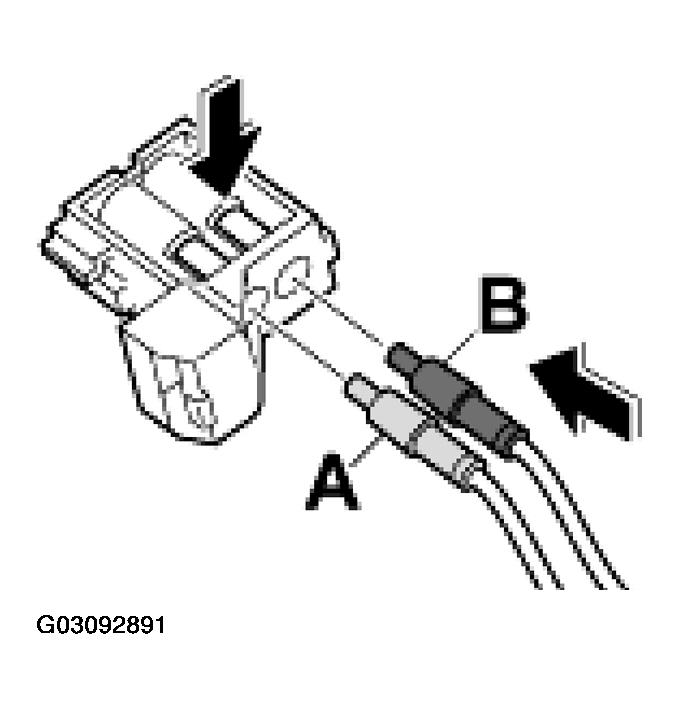

    Fig 1: Inserting Optical Contact In Connector
    G03092891Courtesy of PORSCHE OF NORTH AMERICA, INC.
    • -A-  Optical contact, grey see Fig 1 .
    • -B-  Optical contact, black see Fig 1 .
  2. Lock the secondary locking -arrow- and check the optical contacts for tightness. See Fig 2 .

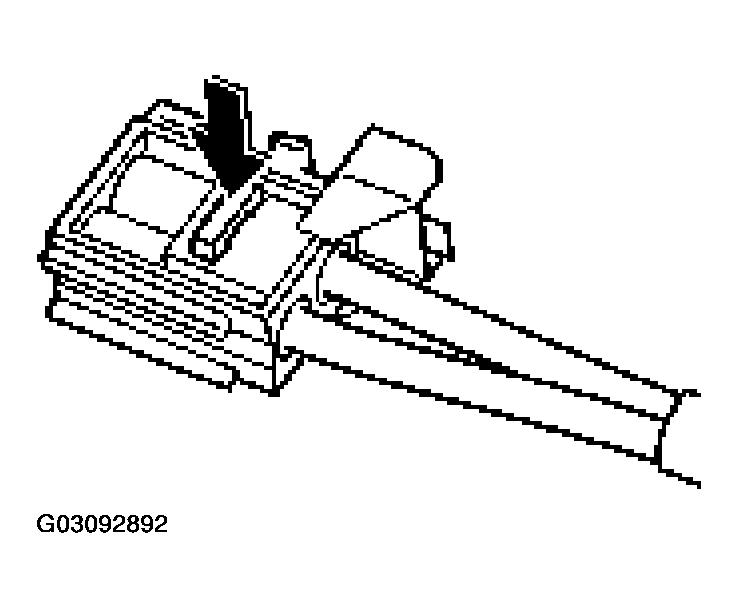

    Fig 2: Locking Secondary Lock
    G03092892Courtesy of PORSCHE OF NORTH AMERICA, INC.
