Installing lid release motor

  1. Engage the cable and position the motor at the holder.

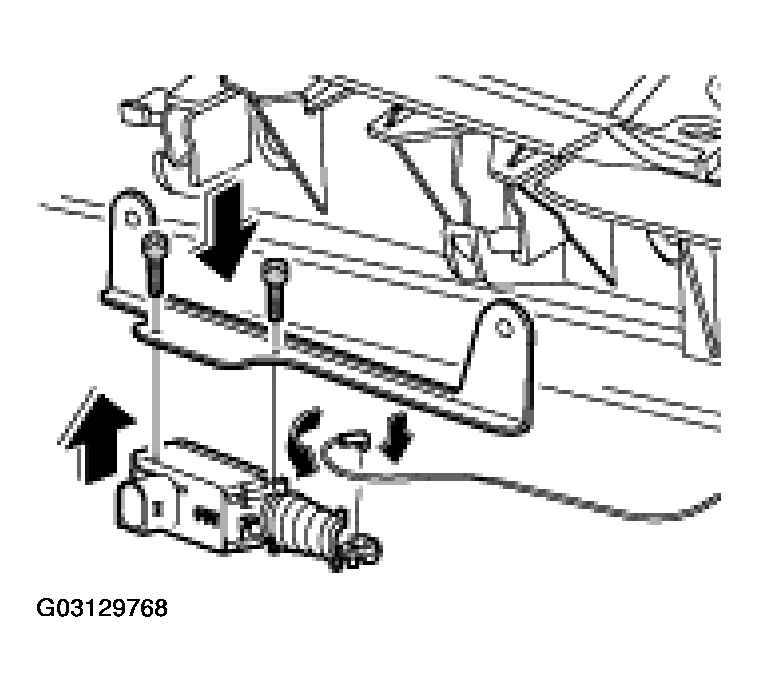

    Fig 1: Engaging Lid Release Motor Cable And Positioning Motor At Holder
    G03129768Courtesy of PORSCHE OF NORTH AMERICA, INC.
  2. Screw in the fastening screws. Tightening torque 1.5 Nm (1 ftlb.)
  3. Position the holder with the motor on the retaining strip and screw tight with the fastening nuts. Tightening torque 9.7 Nm (7 ftlb.).

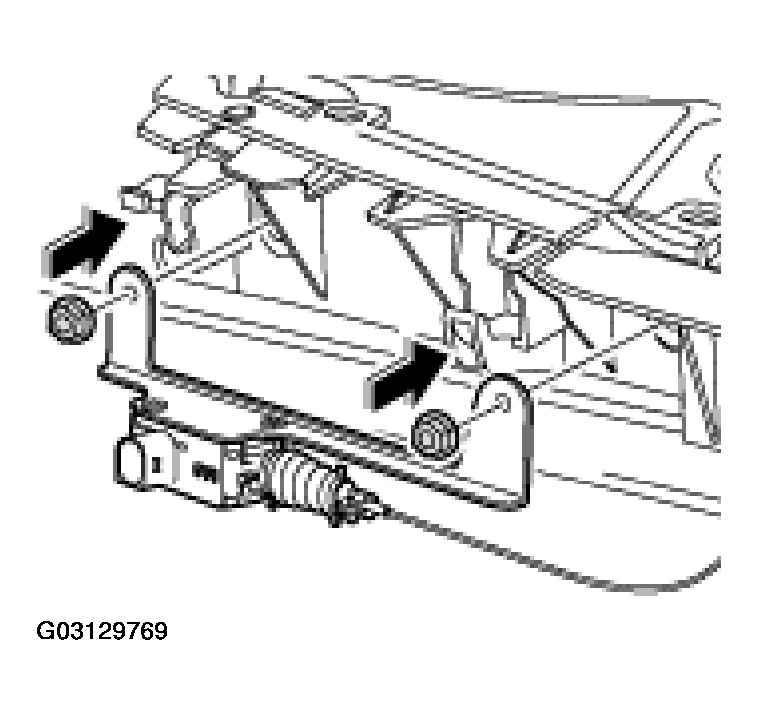

    Fig 2: Positioning Holder With Lid Release Motor On Retaining Strip
    G03129769Courtesy of PORSCHE OF NORTH AMERICA, INC.
