Removing and installing front emergency release - as of MY 2003: Notes

Shown on 911 Carrera (996).

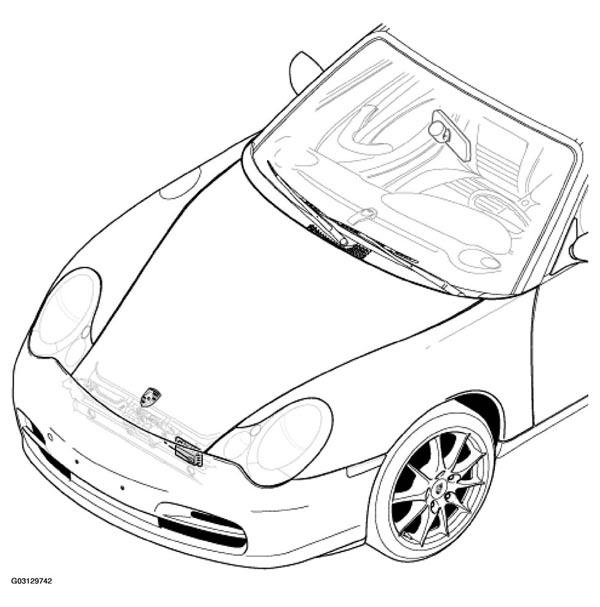

Fig 1: Identifying Front Emergency Release - As Of MY 2003

Courtesy of PORSCHE OF NORTH AMERICA, INC.

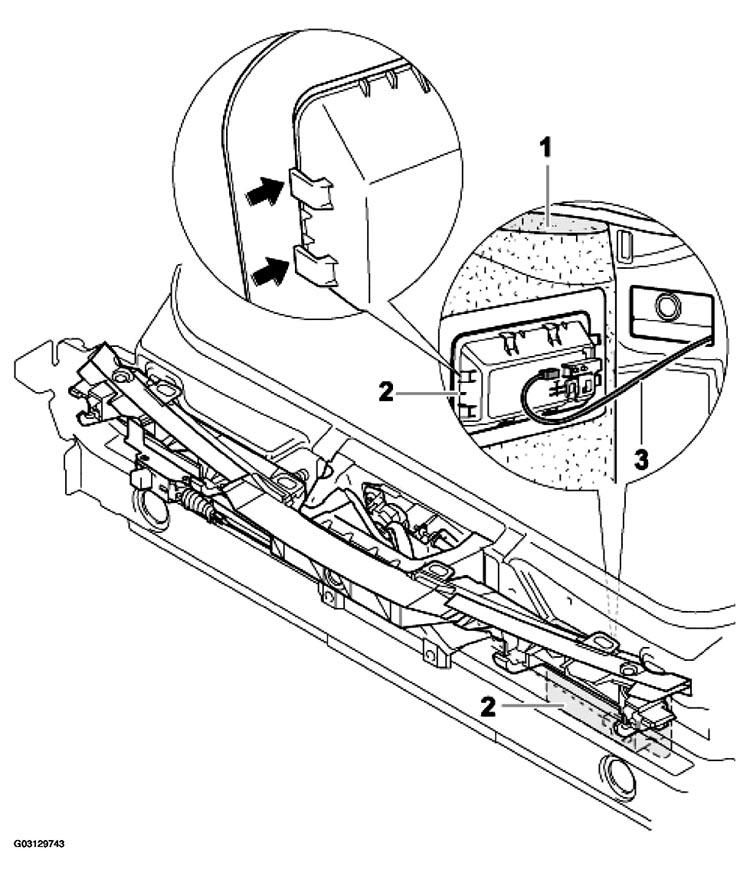

Fig 2: Removing And Installing Front Emergency Release Components - As Of MY 2003

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Only USA and Canada vehicles

FRONT EMERGENCY RELEASE - AS OF MY 2003 REMOVING AND INSTALLING PROCEDURE

No.	Designation	Qty.	Removal	Installation
1	Luggage compartment lining	1	Partly loosen luggage compartment lining.	Install luggage compartment lining.
2	Handle liner emergency release	1	Unclip handle liner -2-1-arrows- . See Fig 2 .	Clip handle liner -2-1- . See Fig 2 .
3	Electrical plug connection	1	Disconnect electrical plug connection -3- . See Fig 2 .	Plug in electrical plug connection -3- . See Fig 2 . See CHECKING INNER RELEASE OF LUGGAGE COMPARTMENT (TRUNK ENTRAPMENT)
