Replacing the Boxster model logo

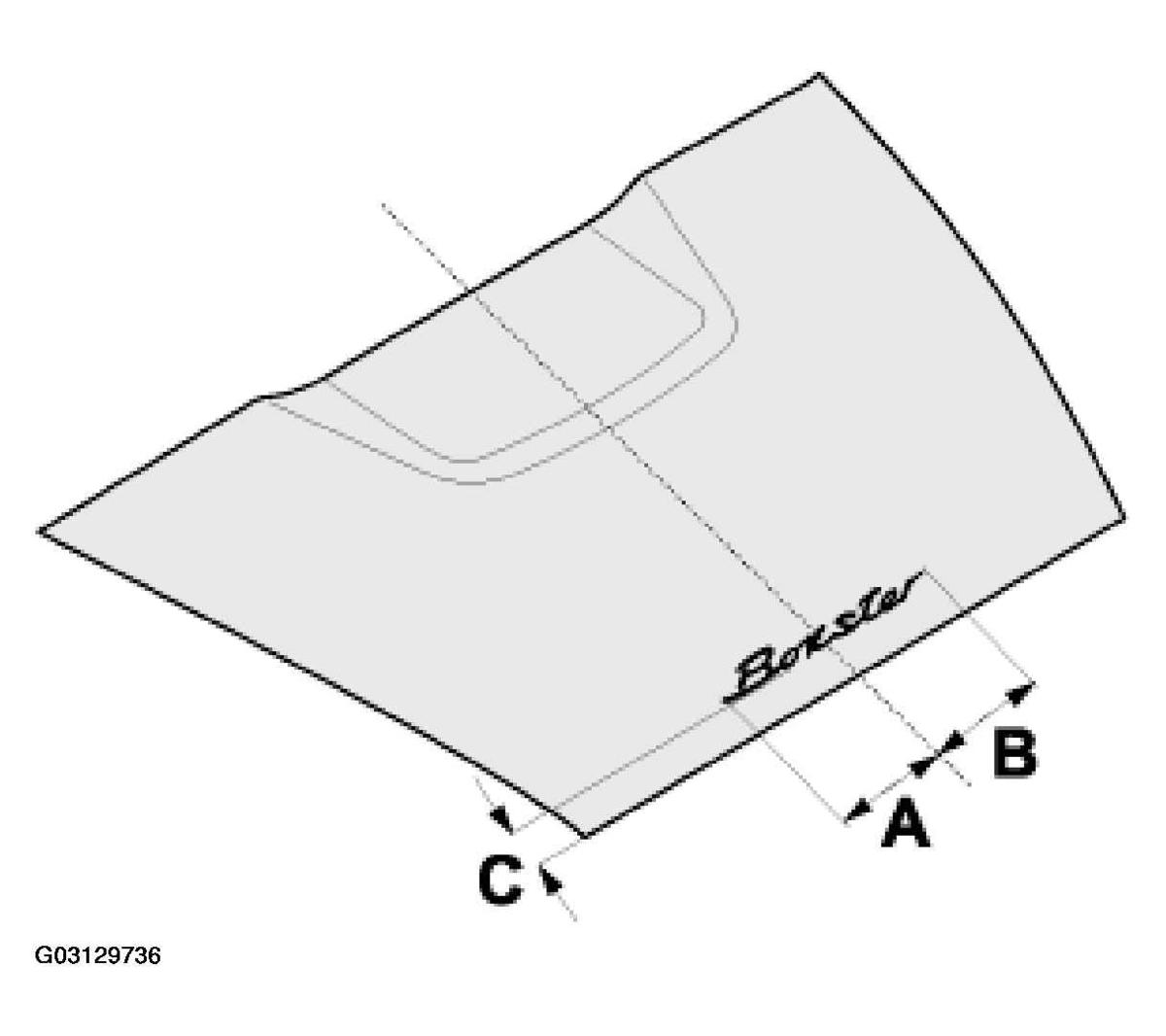

Fig 1: Replacing Boxster Model Logo
G03129736Courtesy of PORSCHE OF NORTH AMERICA, INC.
  1. Determine the middle of the cover.
  2. Position the -Boxster-  logo with the dimensions -A and B = 141 mm-  in Fig 1 and -C = 45+/-1 mm-  in Fig 1 on the rear cover and affix.
