Disassembling hardtop: Preparation

Place hardtop on the assembly fixture and lock with the latching levers and the locking lever at front.

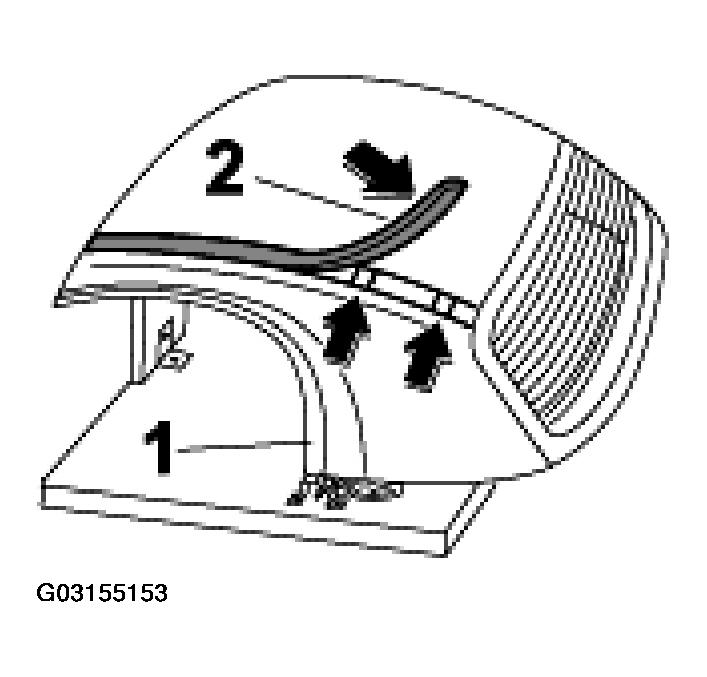

1. Detaching cover strips and roof strip clips

   Lift up the cover strip to the left and right -2-  using a plastic spatula and pull it out of the hardtop body -1-  . The roof strip clips are destroyed when they are removed.

   Fig 1: Detaching Cover Strips And Roof Strip Clips

   Courtesy of PORSCHE OF NORTH AMERICA, INC.

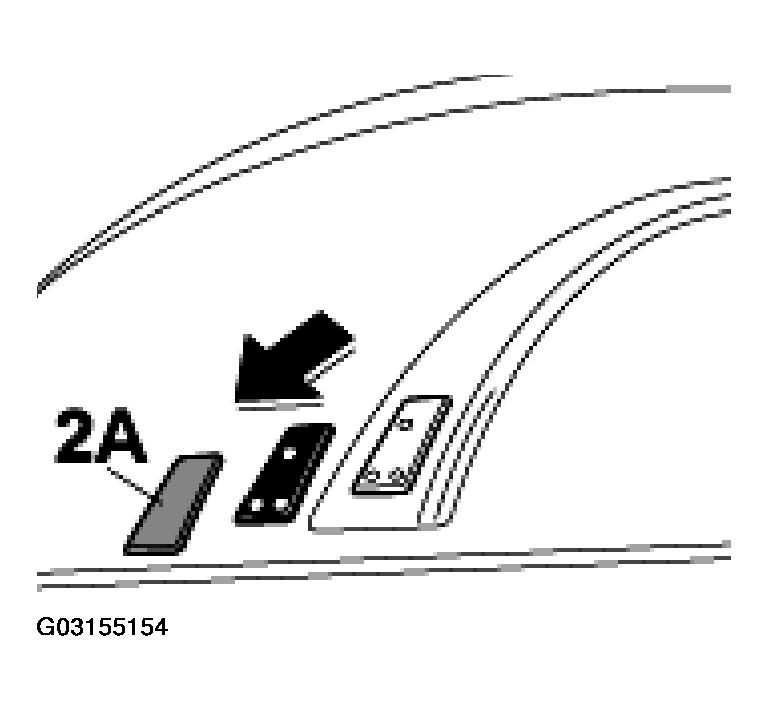

2. Removing cover and bracket

   Pull off cover -2A-  and press out the bracket at the top and bottom using a plastic spatula.

Fig 2: Removing Cover And Bracket

Courtesy of PORSCHE OF NORTH AMERICA, INC.
